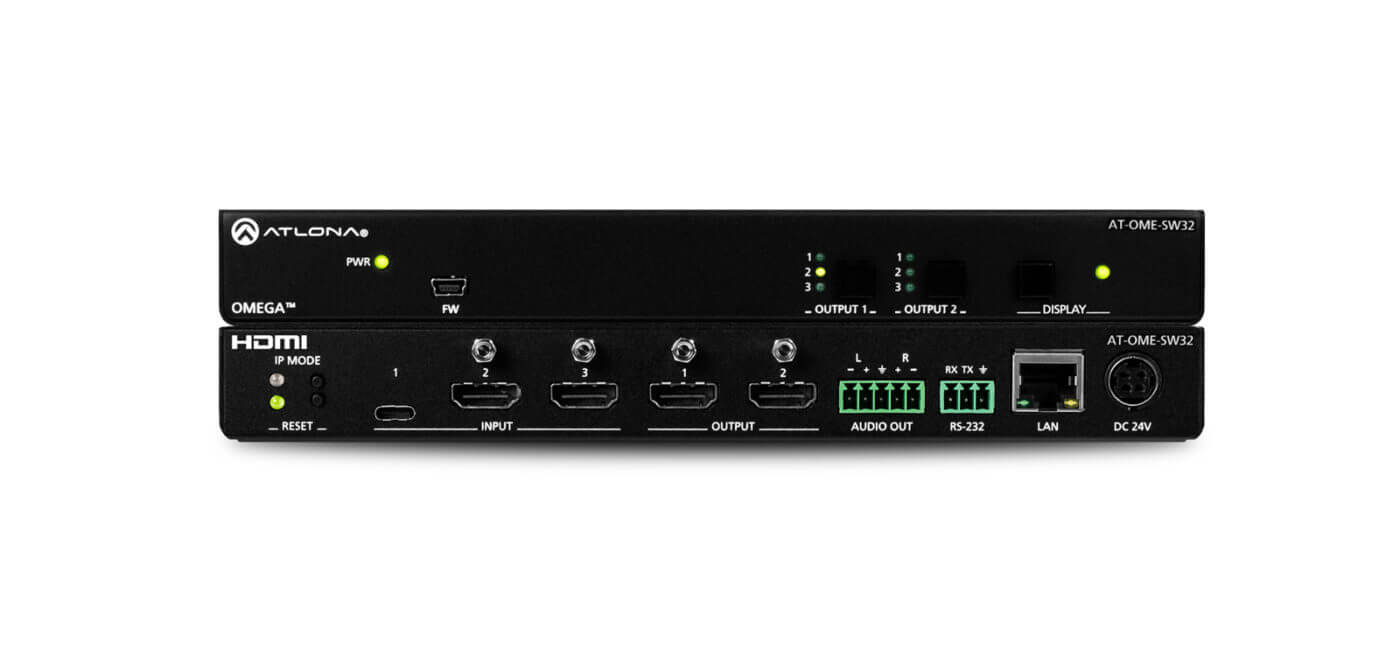

Atlona Omega Matrix Switcher with 2x HDMI and 1x USB-C and 2x HDMI output

The Atlona AT-OME-SW32 is a compact and versatile 3x2 matrix switcher designed for modern AV communications and collaboration. It features USB-C and HDMI inputs, along with HDMI outputs, allowing seamless connectivity for laptops and other devices. This switcher supports high-quality video resolutions up to 4K at 60 Hz with 4:4:4 chroma sampling, making it ideal for presentations in commercial and educational settings. Its automatic input selection and display control features simplify usage for presenters, while audio de-embedding enhances integration with sound systems.

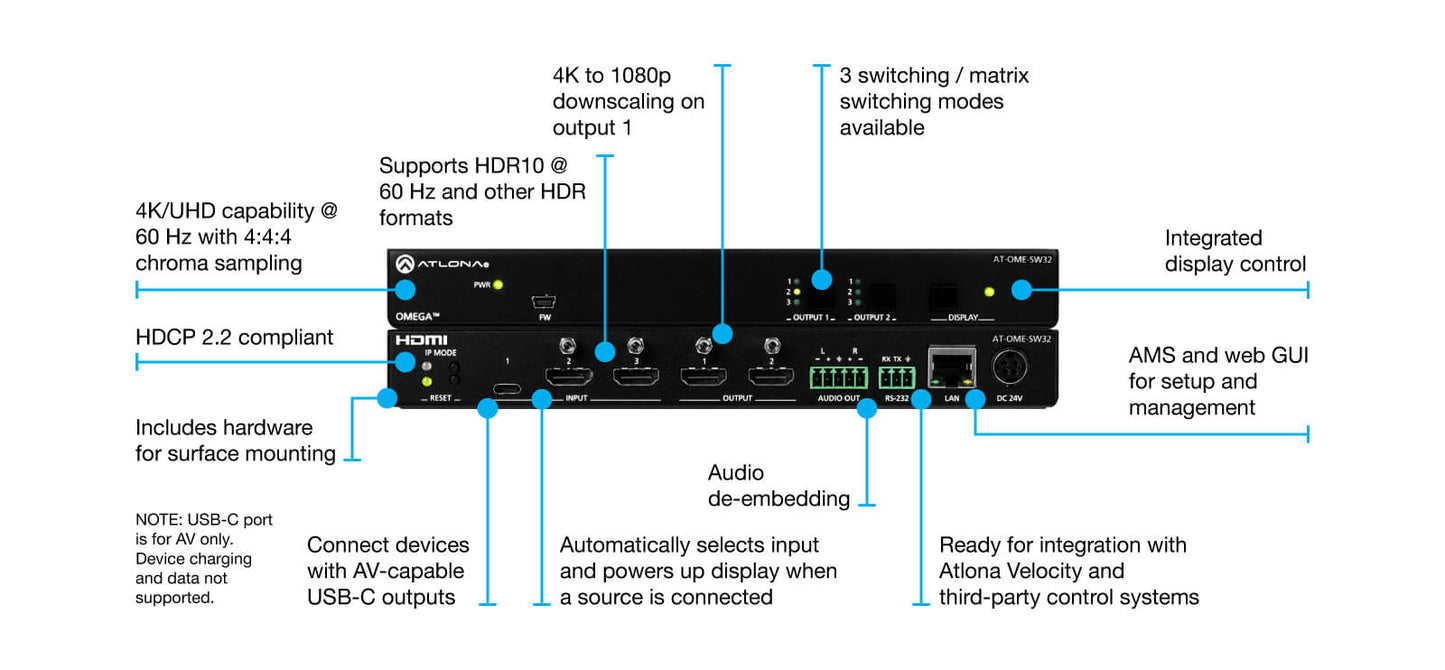

Features

• Compact Design: The low-profile enclosure allows for discreet installation under tables or furniture, making it perfect for small meeting spaces.
• Multiple Input Options: Includes 2 HDMI inputs and 1 USB-C input, ensuring compatibility with a wide range of devices including Mac®, Chromebook™, and Windows® PCs.
• High Resolution Support: Capable of delivering 4K HDR video at 60 Hz with 4:4:4 chroma sampling, ensuring crystal-clear image quality.
• Selectable Switching Modes: Offers mirrored outputs, matrixed outputs, and a fixed input mode, providing flexibility for various presentation needs.
• Automatic Input Selection: Automatically detects and selects the appropriate input when a device is connected, enhancing ease of use for presenters.
• Audio De-embedding: Allows audio to be extracted from the HDMI output for connection to amplifiers or sound systems, improving audio quality during presentations.
• Display Control: Triggers automatic power on/off for connected displays via CEC, simplifying system integration.
• Remote Management: Compatible with TCP/IP and RS-232 control, allowing for easy configuration and management through Velocity Device Manager.

Specifications

• HDMI Input: 2 x HDMI Type A (19-pin female)
• USB-C Input: 1 x USB Type-C v3.1 (AV input)
• HDMI Output: 2 x HDMI Type A (19-pin female)
• Video Resolution: Supports up to 4K/UHD @ 60 Hz, downscaling to 1080p available
• Audio Formats: Supports multi-channel audio including Dolby® Digital, Dolby Atmos®, and DTS®
• Control Ports: 1 x RS-232 (3-pin captive screw), 1 x RJ45 Ethernet
• Power Supply: Input 100-240 V AC, Output 24 V / 2.7 A DC
• Dimensions: 26 mm (H) x 219 mm (W) x 152 mm (D)
• Weight: 1.87 lbs (0.85 kg)
• Operating Temperature: 0 to 50 °C
• Humidity: 20% to 60%, non-condensing
