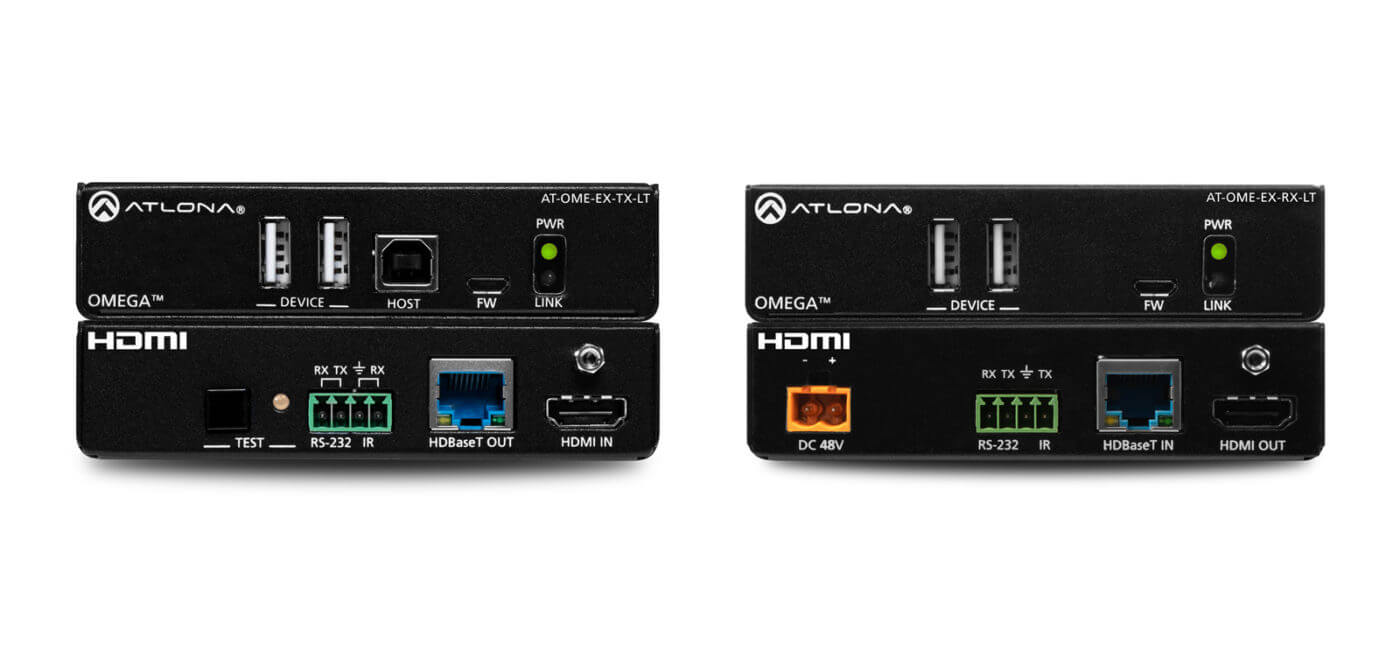

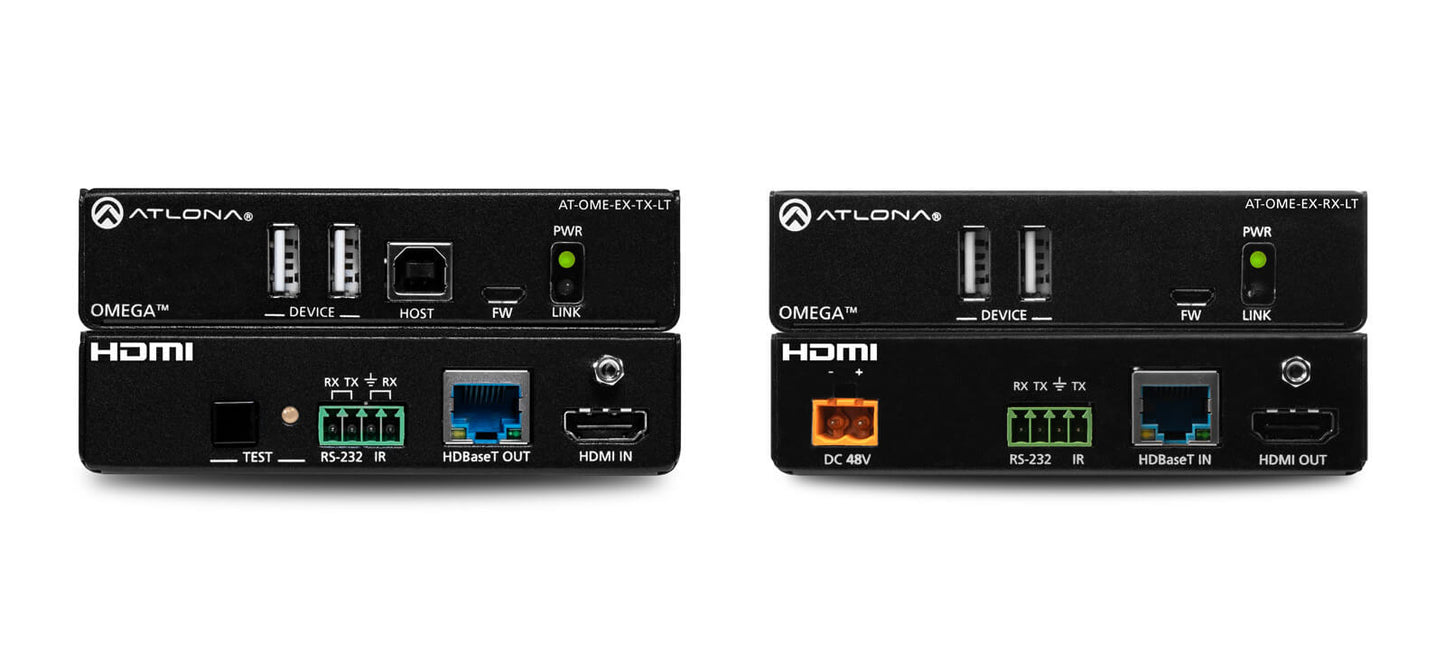

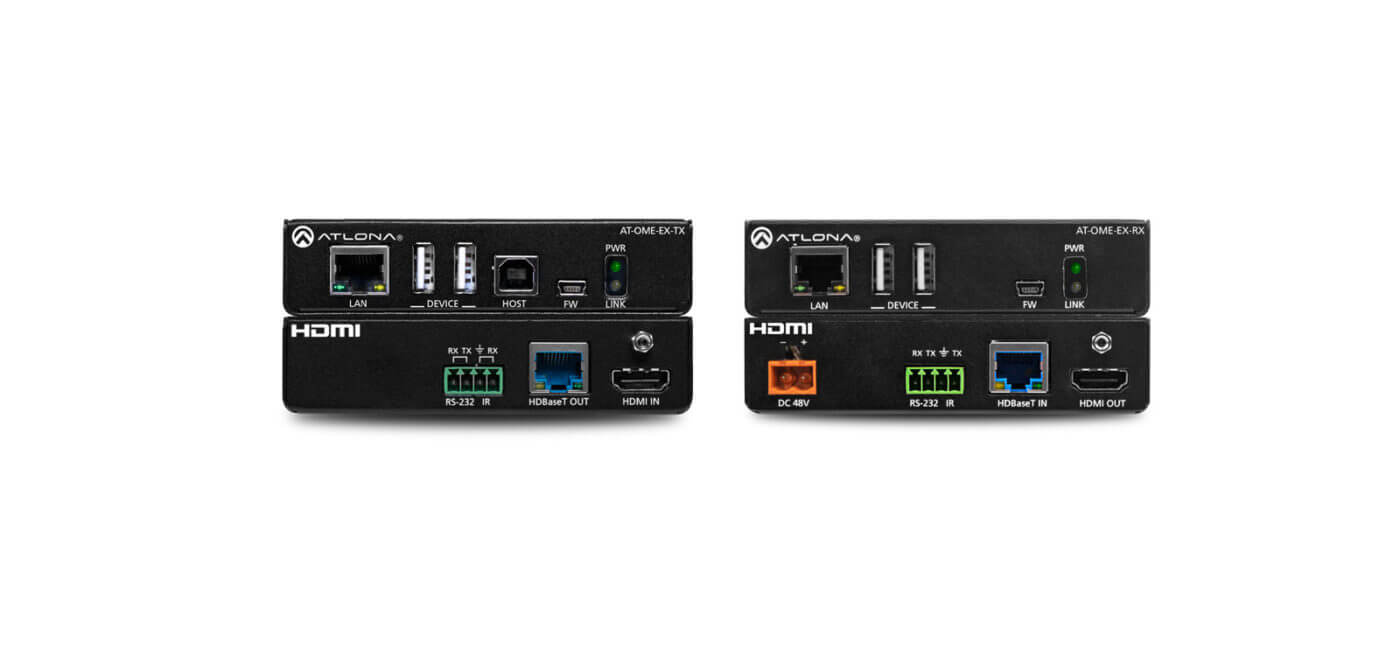

Atlona Omega 4K HDMI Over HDBaseT Extender Kit with USB & PoE

The Atlona AT-OME-EX-KIT-LT is a state-of-the-art HDBaseT extender kit designed for seamless video, control, and USB transmission over long distances, making it ideal for video conferencing in huddle rooms and interactive displays. It supports 4K/UHD video at 60 Hz, features integrated USB extension, and is compliant with HDCP 2.2, ensuring compatibility with the latest AV devices.

Features

• 4K/UHD Support: Transmits video up to 4K/60 4:2:0 over distances up to 130 feet (40 meters) and 1080p/60 up to 230 feet (70 meters).
• Integrated USB Extension: Connects USB devices at remote locations, ideal for video conferencing and interactive displays.
• Remote Power: The transmitter is powered by the receiver over the HDBaseT cable link, simplifying installation.
• Control Signal Extension: Supports IR and RS-232 control signals for remote interfacing with sources or displays.
• Easy Installation: Low-profile design allows for discreet installation under tables or behind displays.

Specifications

• Video Input: HDMI
• Video Output: HDMI / HDBaseT
• USB Interface: USB 2.0 (1 host, 2 device ports)
• Video Resolution: Up to 4096×2160 @ 60Hz, 3840×2160 @ 60Hz, 1920x1080p @ 60Hz
• Distance: Up to 130 feet (40 meters) for 4K/UHD, 230 feet (70 meters) for 1080p/60
• HDCP Compliance: HDCP 2.2
• Power Consumption: 30.5W (TX/RX), 13.5W (TX), 17.0W (RX)
• Operating Temperature: 0 to +122°F (0 to +50°C)
• Dimensions (H x W x D): 1.02 x 4.29 x 5.00 inches (26 x 109 x 127 mm)
• Weight: 0.88 lb (0.40 kg) for transmitter, 0.94 lb (0.43 kg) for receiver
