Atlona Omega 4K HDMI HDBaseT Transmitter with USB, Control & PoE

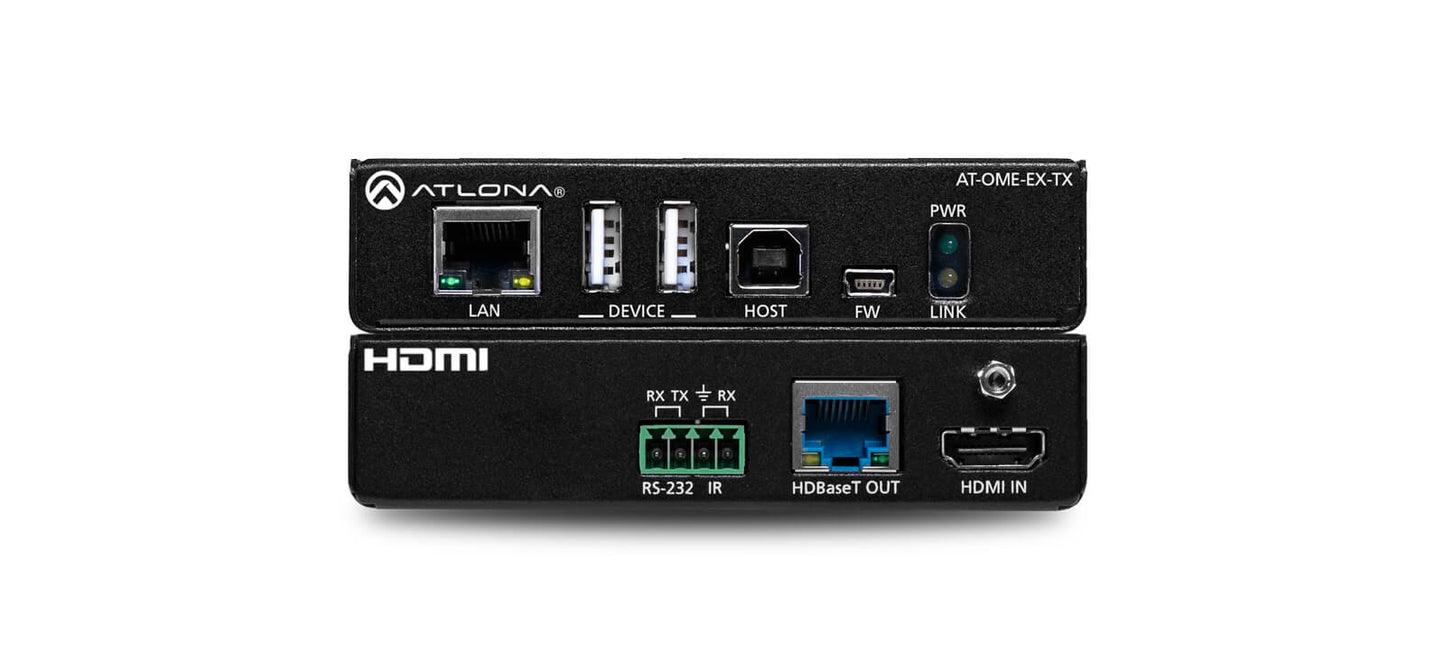

The Atlona AT-OME-EX-TX is a high-performance HDBaseT transmitter designed for delivering 4K/UHD video and audio, along with USB, control, and Ethernet over long distances. Capable of transmitting signals up to 330 feet (100 meters), this device is ideal for modern AV communications and video conferencing applications. Its USB extension feature allows connection to various peripherals, making it perfect for interactive displays and software conferencing solutions.

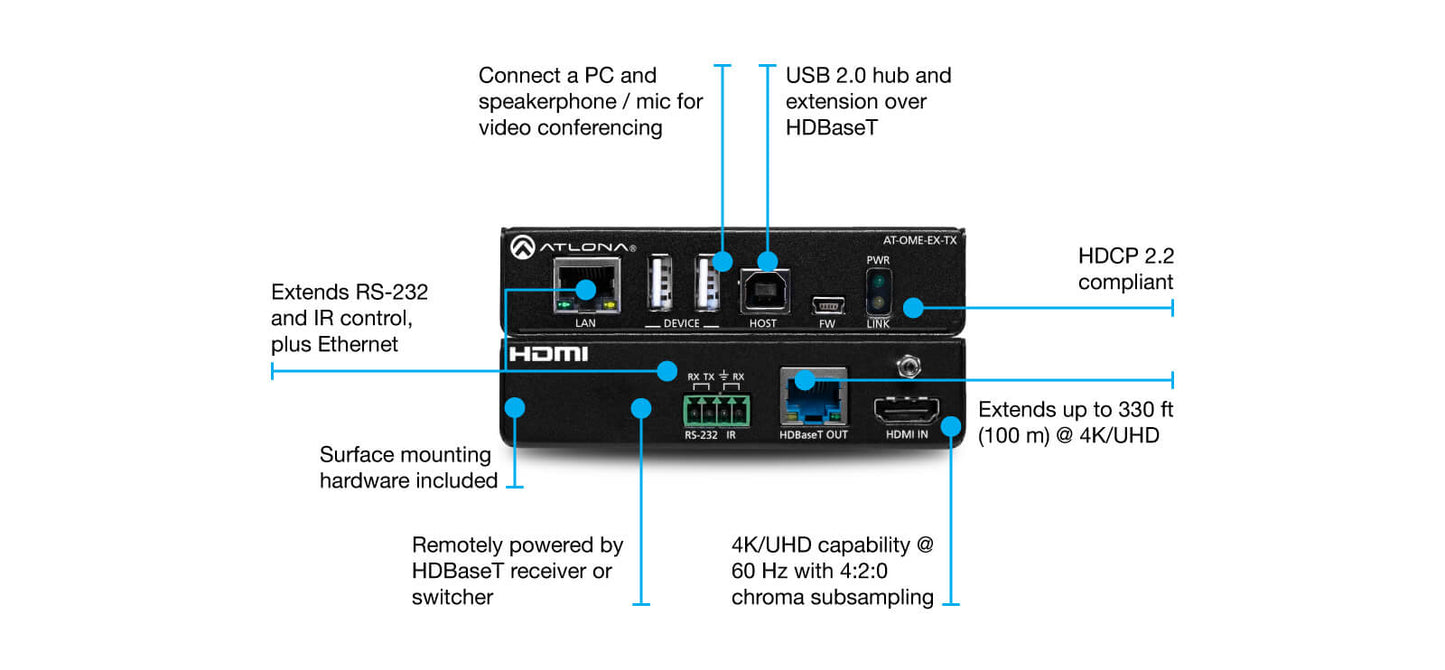

Features

• 4K/UHD Video Transmission: Supports video up to 4K/60 with 4:2:0 chroma subsampling.
• USB Hub Integration: Includes a USB 2.0 host interface for connecting a PC and two peripheral devices like microphones and speakerphones.
• Long Distance Capability: Transmits signals up to 330 feet (100 meters) using CAT6/6a/7 cables.
• Power over Ethernet (PoE): Can be remotely powered over HDBaseT, simplifying installation.
• Multi-Channel Audio Support: Passes through various audio formats including Dolby Atmos and DTS.
• IR, RS-232, and IP Control: Facilitates control signal transmission for seamless integration with control systems.
• HDCP 2.2 Compliance: Ensures compatibility with the latest content protection standards.

Specifications

• Video Resolution: Up to 4K/UHD @ 60 Hz (4:2:0)
• Audio Formats Supported: PCM, Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio
• USB Data Rate: Maximum 120 Mbps
• Operating Temperature: 0° to 50° C
• Power Consumption: 13.68 W
• Dimensions (H x W x D): 26 mm x 109 mm x 127 mm
• Weight: 0.406 kg
• Country of Origin: Taiwan
