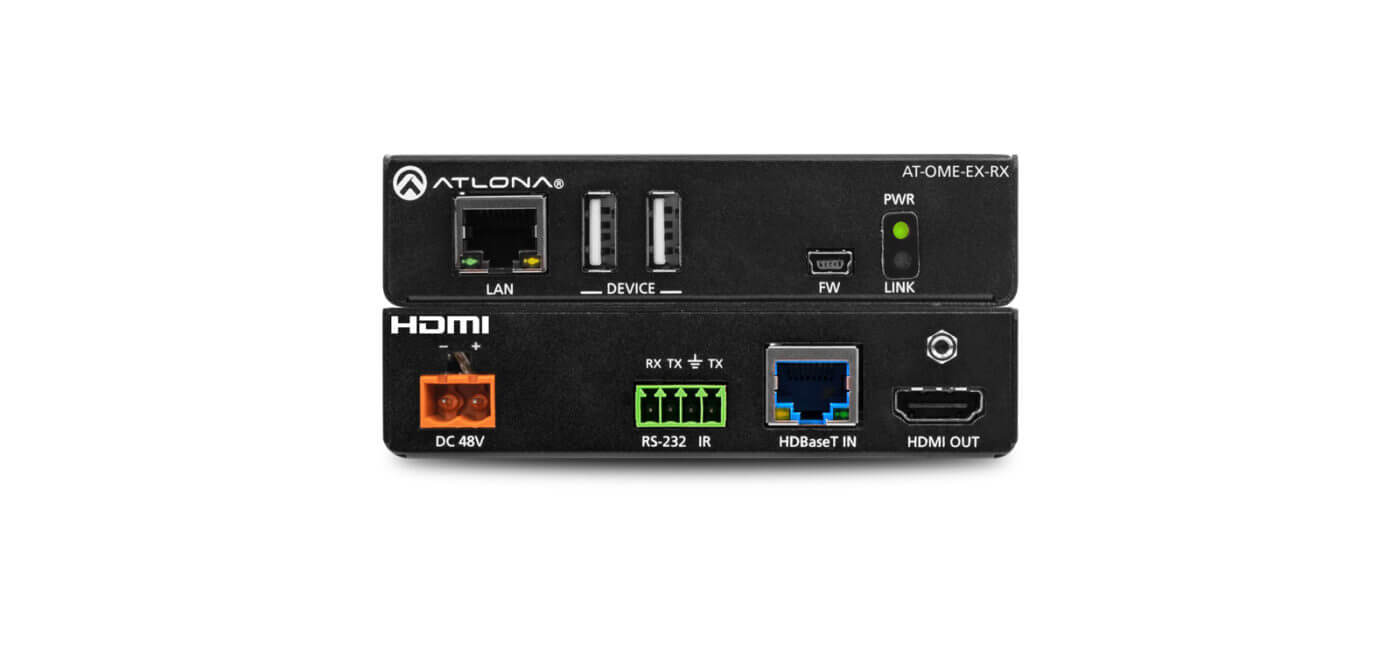

Atlona OME-EX-RX 4K HDMI HDBaseT Receiver with USB, Control

The Atlona OME-EX-RX is a high-performance HDBaseT receiver designed for seamless AV integration in modern environments. Capable of delivering 4K/UHD video at 60 Hz with 4:2:0 chroma subsampling over distances up to 330 feet (100 meters), this receiver supports embedded audio, control signals, and USB interfacing, making it ideal for video conferencing, interactive displays, and AV presentations.

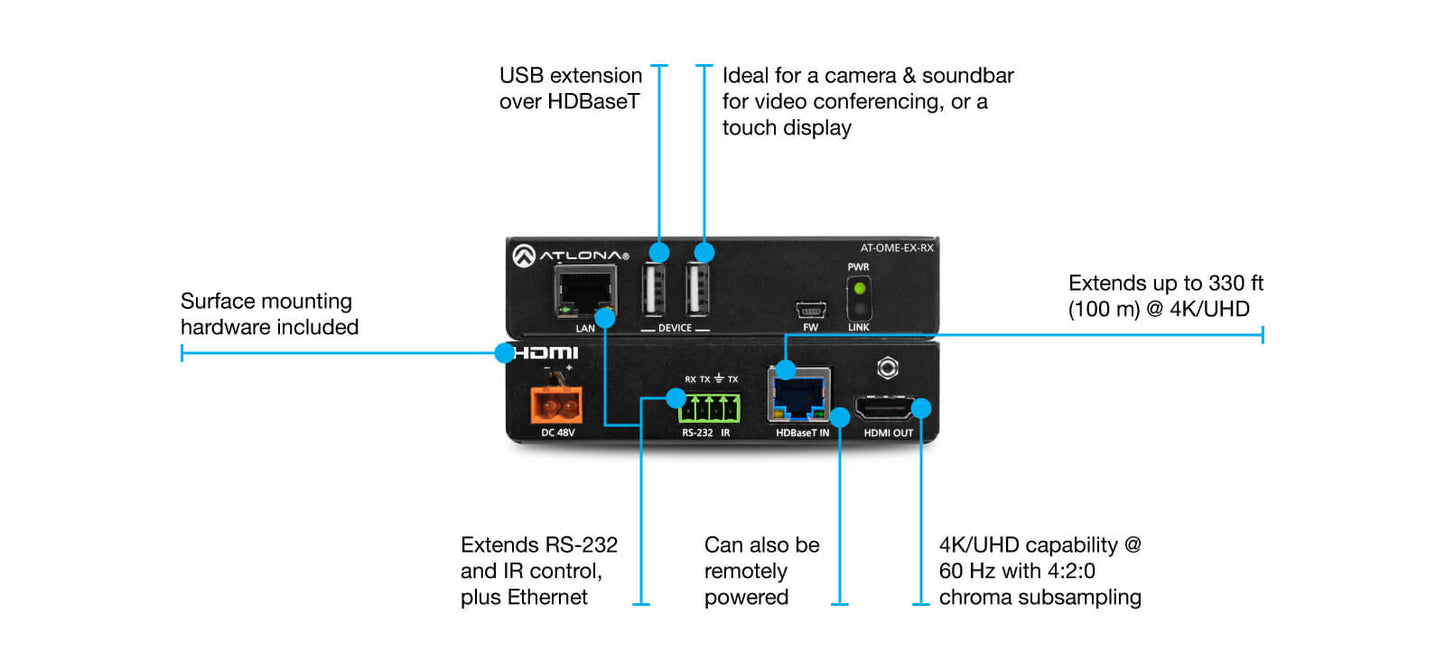

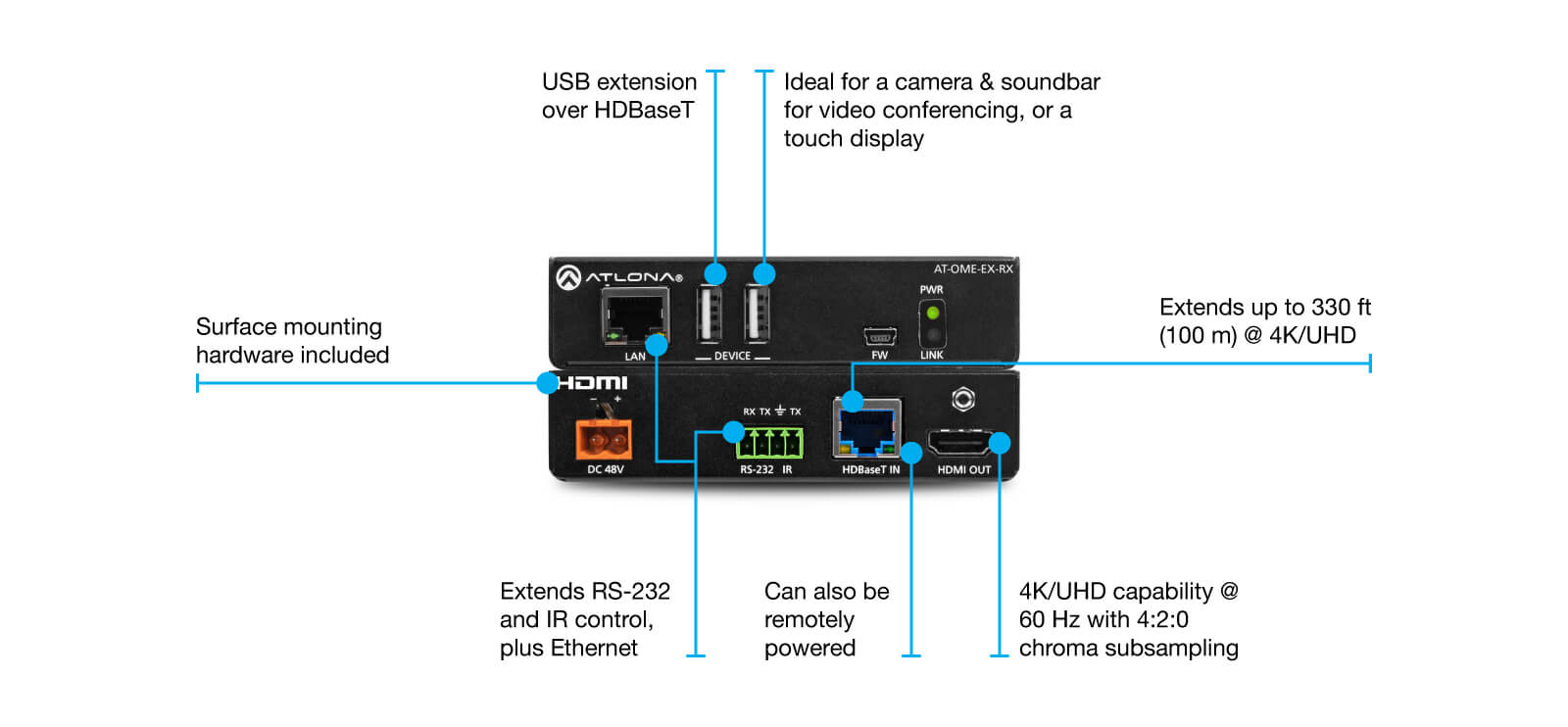

Features

• 4K/UHD Video Support: Delivers stunning 4K resolution at 60 Hz with 4:2:0 chroma subsampling.
• Long-Distance Transmission: Capable of transmitting video, audio, and control signals up to 330 feet (100 meters) using CAT6a/7 cables.
• USB Extension: Features two USB Type-A ports for connecting peripheral devices such as cameras and soundbars.
• Power over Ethernet (PoE): Can be remotely powered over HDBaseT or locally powered, providing flexibility in installation.
• HDCP 2.2 Compliance: Ensures compatibility with the latest content protection standards.
• Multi-Channel Audio Support: Passes through various audio formats including PCM, Dolby Digital, and DTS.
• Field-Updatable Firmware: Easily update the device firmware via the USB port for enhanced functionality.
• Compact Design: Low-profile enclosure (1.02 inches high) allows for installation in tight spaces.

Specifications

• Input Signal: HDBaseT
• Output Signal: HDMI
• HDMI Specification: HDMI 2.0, HDCP 2.2
• Pixel Clock: 300 MHz
• UHD/HD Resolutions: 4096x2160 (DCI) @ 60/30/24 Hz, 3840x2160 (UHD) @ 60/50/30 Hz, 1080p @ 60 Hz
• USB Signal: USB 2.0
• Maximum Data Rate: 120 Mbps
• Control Signals: IR, RS-232, IP
• Power Consumption: 18.67 W
• Operating Temperature: 0° to 122° F (0° to 50° C)
• Dimensions (H x W x D): 26 x 109 x 127 mm
• Weight: 870 g
