Atlona Networked based occupancy sensor with ambient light and temperature sensing, PoE, and detection up to 900 square feet

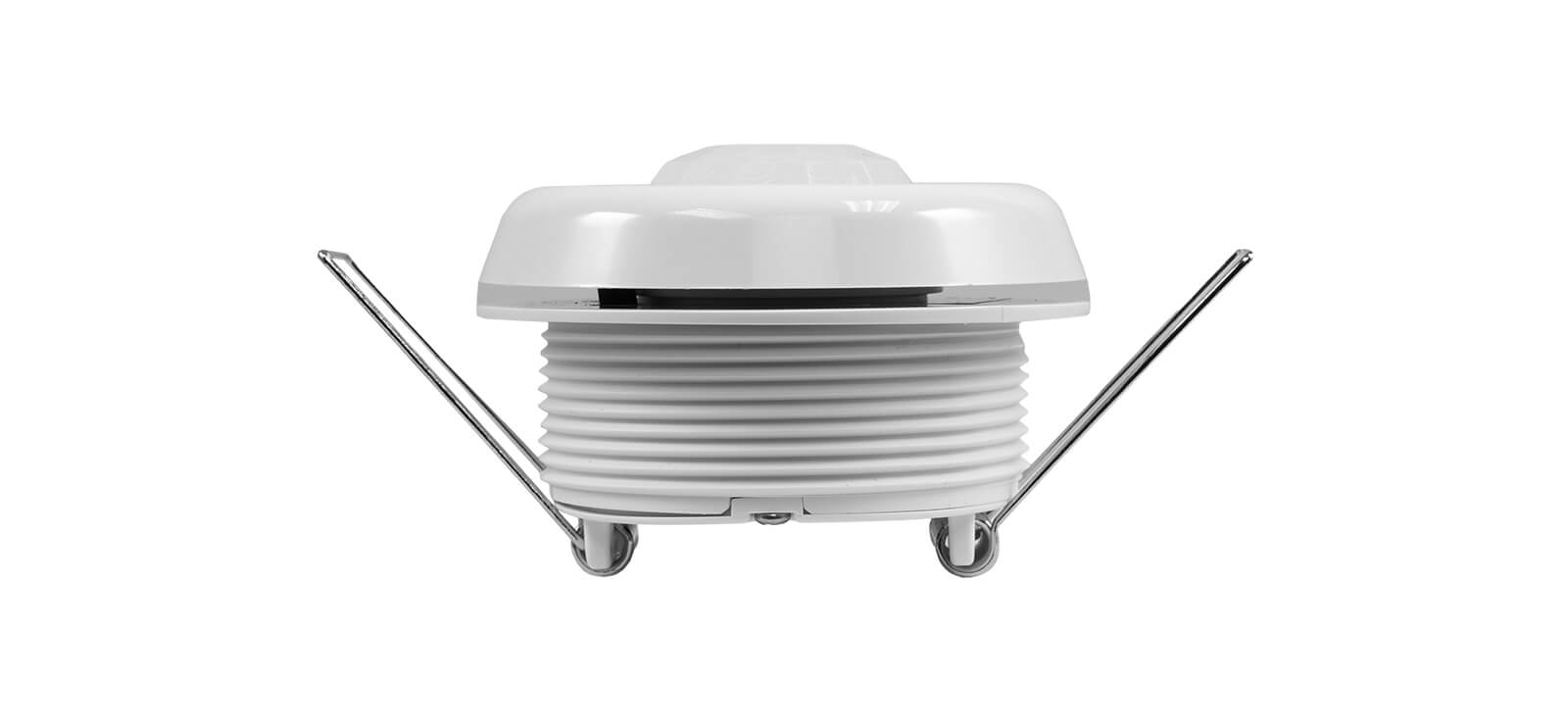

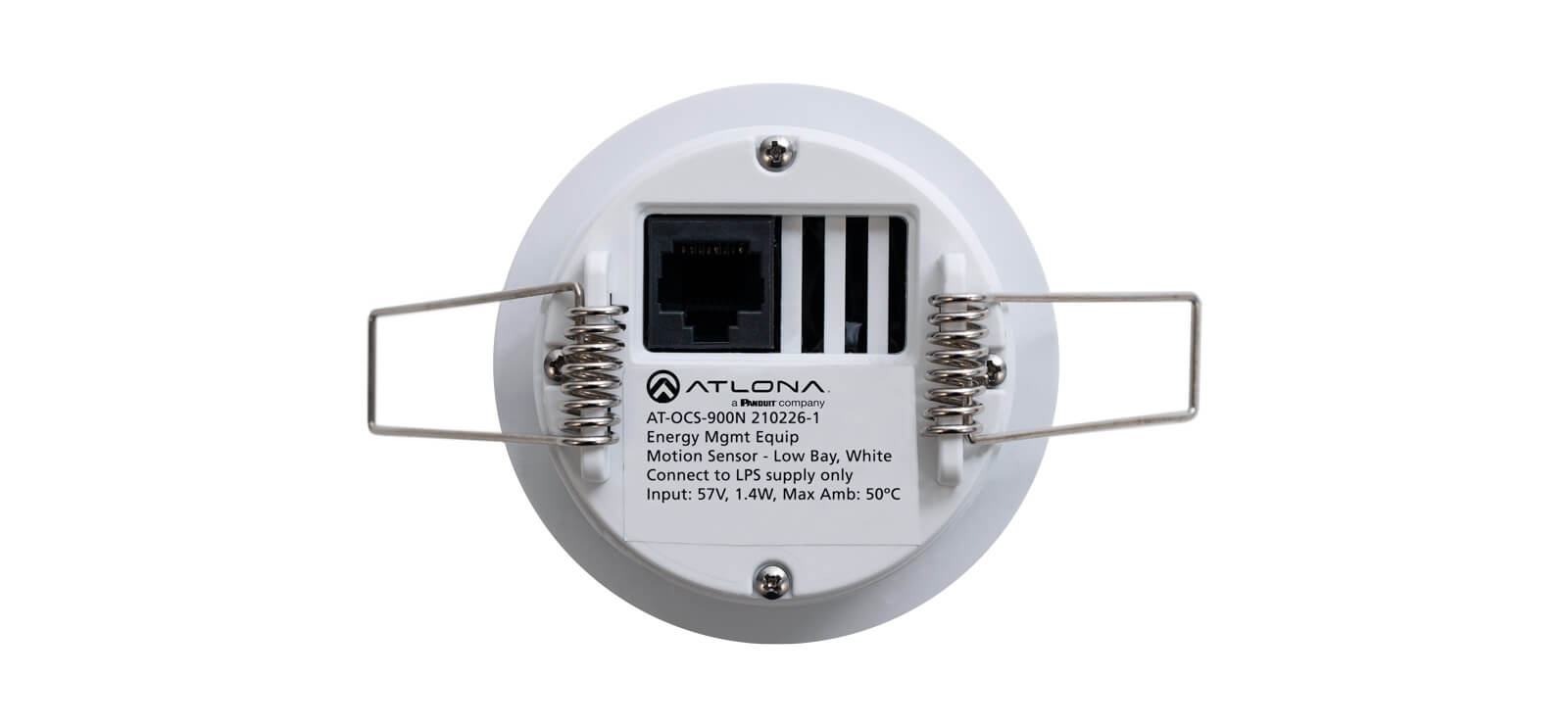

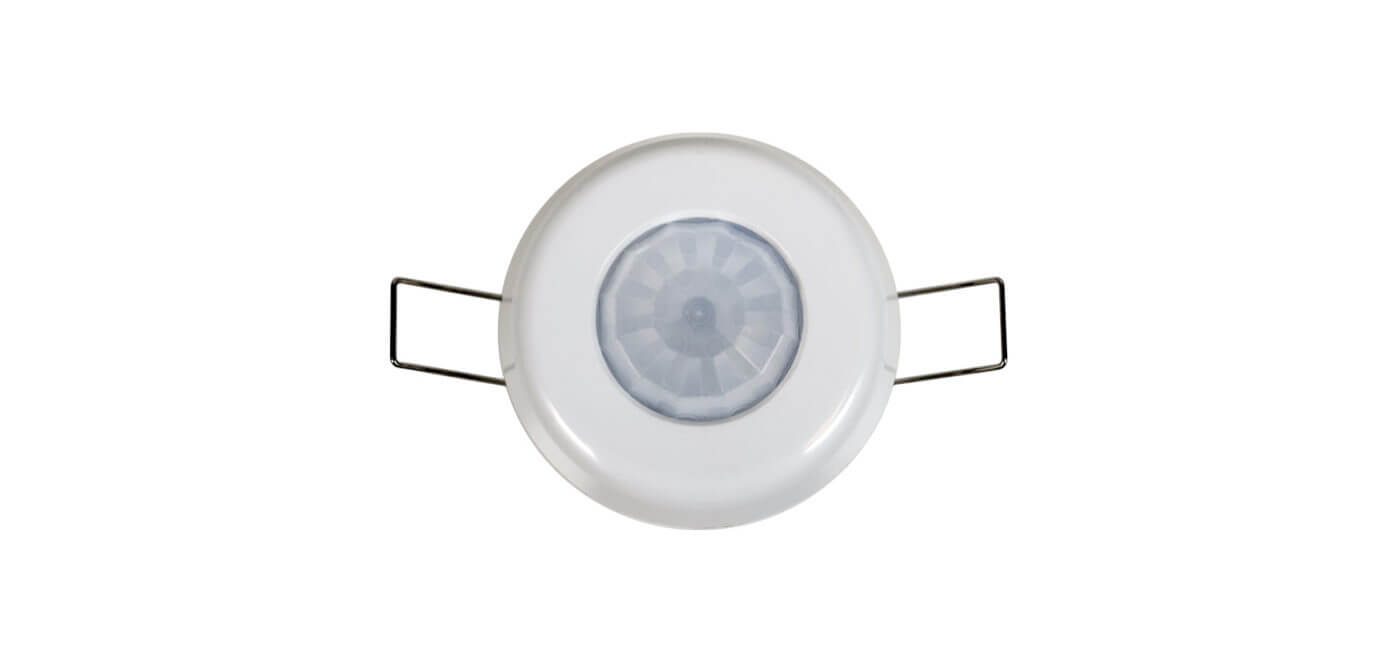

The Atlona AT-OCS-900N is a versatile network-enabled occupancy sensor that integrates seamlessly into AV automation systems. This ceiling-mounted device uses passive infrared (PIR) technology to detect occupancy, while also measuring ambient light and temperature. Its PoE capability simplifies installation, providing both power and data through a single cable. Ideal for commercial, educational, and retail environments, the OCS-900N enhances automation by controlling AV components based on room occupancy.

Features

• Multi-functionality: Detects occupancy, temperature, and ambient light levels.
• Network-enabled: Communicates over IP with select Atlona products for automatic AV control.
• Flexible coverage: Includes two lenses for customizable detection areas of up to 900 ft² or 2,000 ft².
• Configurable LED indicators: Customize colors and activity signals for enhanced visibility.
• Power over Ethernet (PoE): Simplifies installation with a single cable for power and data.
• Third-party integration: Supports common protocols including UDP, TCP, WebSocket, and MQTT for communication with other systems.
• Blinder insert: Limits detection to prevent false triggers from cross traffic.

Specifications

• Detection Technology: Passive Infrared (PIR)
• Coverage Area: 900 ft² (83.6 m²) or 2,000 ft² (185.8 m²) with accessory lens
• Coverage Pattern: 360°
• Ambient Light Sensor Range: 0 to 65535 lux
• Temperature Sensor Range: -40 to +257°F (-40 to +125°C)
• Power Consumption: 1.1 W
• PoE Standard: 802.3af
• Operating Temperature: +32 to +122°F (0 to +50°C)
• Storage Temperature: -40 to +158°F (-40 to +70°C)
• Humidity: 90% maximum, non-condensing
• Dimensions: 2.13 x 2.90 inches (54 x 74 mm)
• Weight: 2.11 ounces (60 grams)
• Certifications: CE, FCC, UL 916 file no. #E524557, UKCA
• Compliance: NDAA-899
