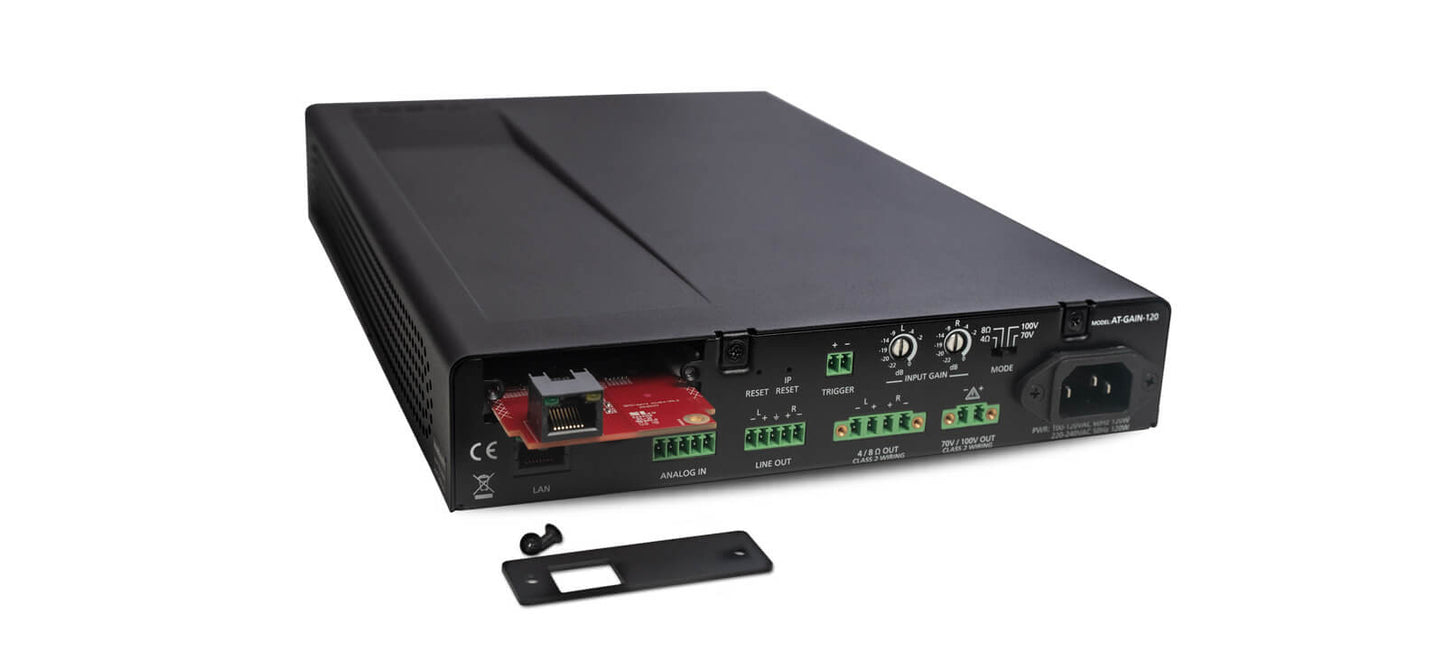

Atlona Gain™ 120: 120W Amplifier for Low/High Impedance,

The Atlona Gain™ 120 (AT-GAIN-120) is a versatile and compact power amplifier designed for both low and high impedance applications. With a mode selector switch, it can deliver two channels of 60 watts each into 4 or 8 ohms or a single channel of 120 watts at 70 or 100 volts. This energy-efficient Class D amplifier is ENERGY STAR® qualified and convection cooled, making it ideal for installation in conference rooms and quiet environments. It features amplified speaker output and a line-level audio output for flexibility in audio distribution.

Features

• Selectable Low/High Impedance Operation: Choose between 4/8 ohm or 70V/100V outputs for versatile audio setups.
• Class D Efficiency: Provides high power output while minimizing energy consumption.
• Convection Cooled: Operates silently without fans, suitable for quiet environments.
• Integrated Protection Circuitry: Safeguards against clipping, short circuits, and thermal overload.
• TCP/IP Control: Easily manage volume levels, muting, and equalization remotely.
• Optional Networked Audio Interface: Supports AES67 and Dante for integration with networked audio systems.

Specifications

• Power Output: 2 x 60 watts @ 4 or 8 ohms, 1 x 120 watts @ 70V or 100V
• Frequency Response: 20Hz – 20kHz, ±2 dB @ 4 Ω load
• Total Harmonic Distortion + Noise (THD+N): < 0.1% @ 1kHz
• Signal-to-Noise Ratio (SNR): > 90 dBA WTD
• Damping Factor: < 90 @ 8 Ω
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Standby Power Consumption: < 0.5W (normal), < 2W (network standby)
• Dimensions: 1.69 x 8.66 x 12.99 inches (43 x 220 x 330 mm)
• Weight: 19.84 lbs (9 kg)
• Certification: CE, RoHS, WEEE, FCC, ENERGY STAR®
