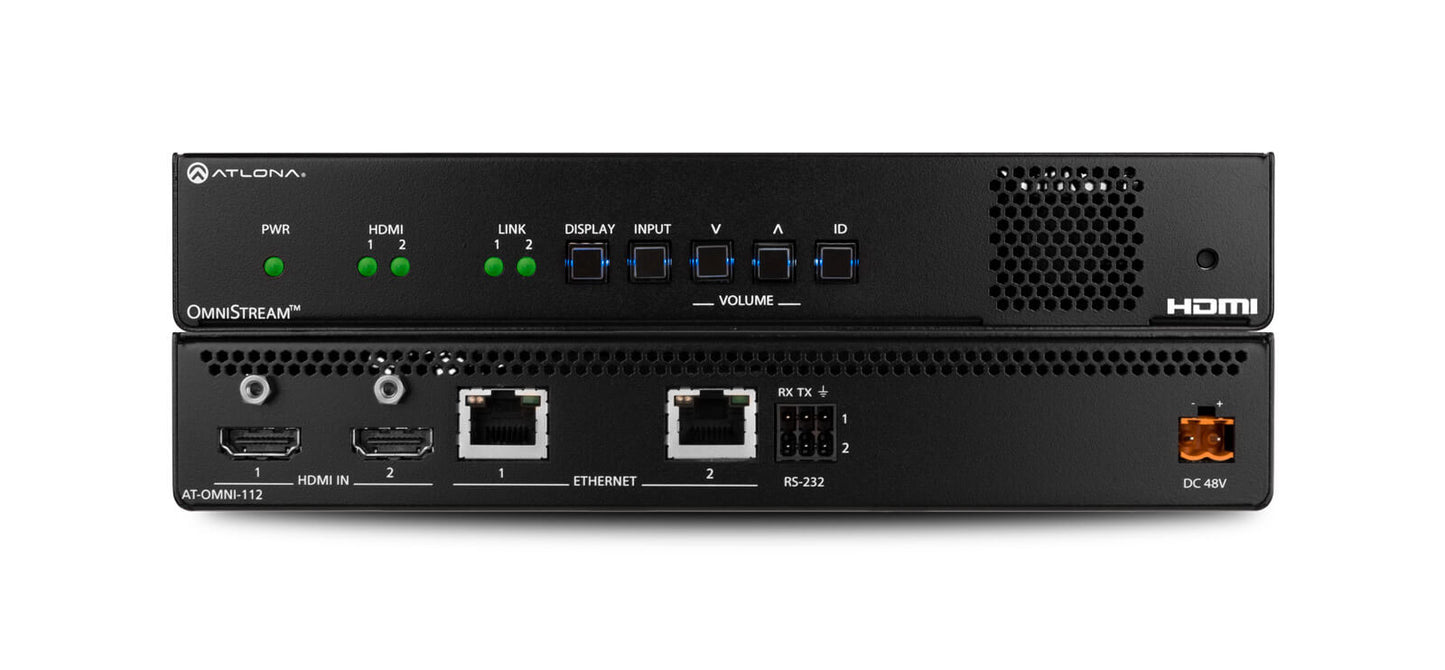

Atlona AT-OMNI-112 Dual Channel 4K HDMI AV Over IP Encoder

The Atlona AT-OMNI-112 is a high-performance dual-channel networked AV encoder designed for HDMI sources up to 4K/UHD. It features visually lossless VC-2 compression, AES-128 encryption, and robust network redundancy, making it ideal for commercial AV applications. With ultra-fast switching and low latency, this encoder supports seamless AV distribution over standard Gigabit Ethernet networks.

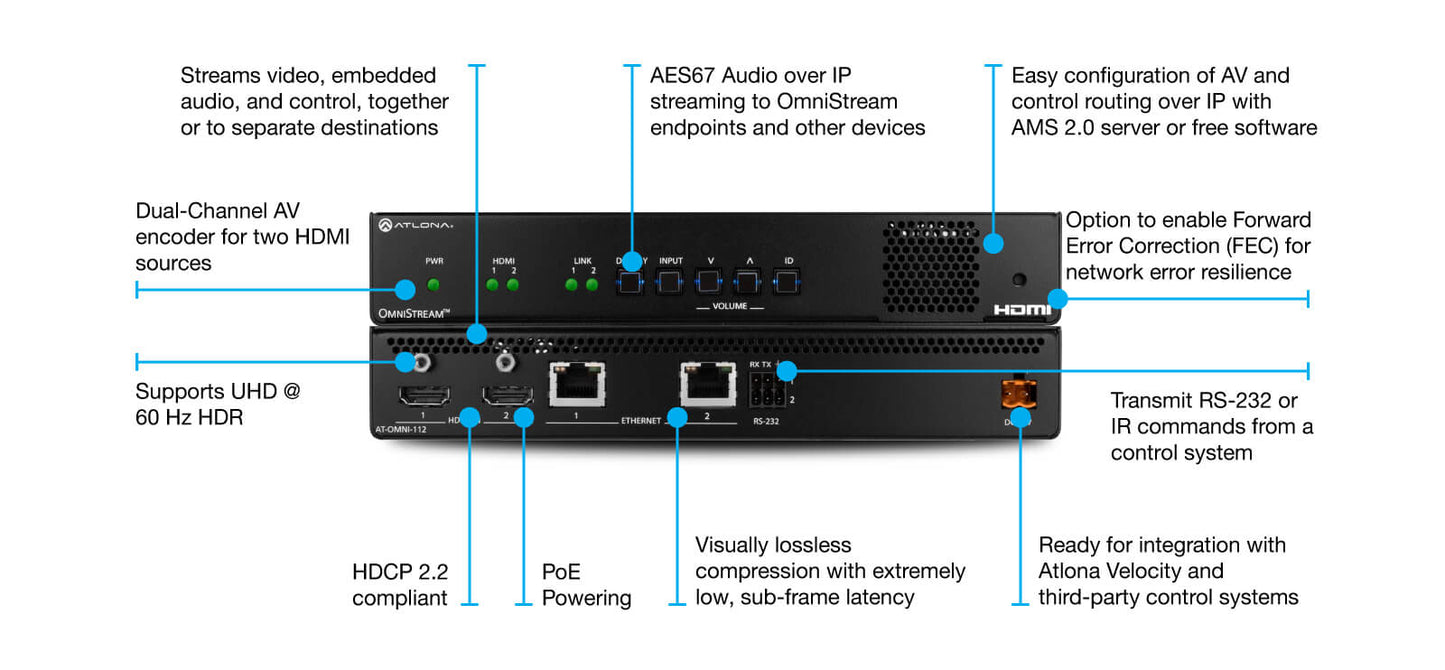

Features

• Dual-Channel Encoding: Supports two independent HDMI inputs for simultaneous encoding.
• 4K/UHD Support: Capable of handling resolutions up to 4K/60 4:4:4 and HDR formats.
• Advanced VCx Codec: Provides artifact-free video quality and ultra-low latency for fast-motion content.
• Network Redundancy: Delivers duplicate AV streams to two networks, ensuring reliability in mission-critical applications.
• Power over Ethernet (PoE): Can be powered by a PoE-capable switch, simplifying installation.
• Integrated Ethernet Link Testing: Evaluates network integrity between encoders and decoders.

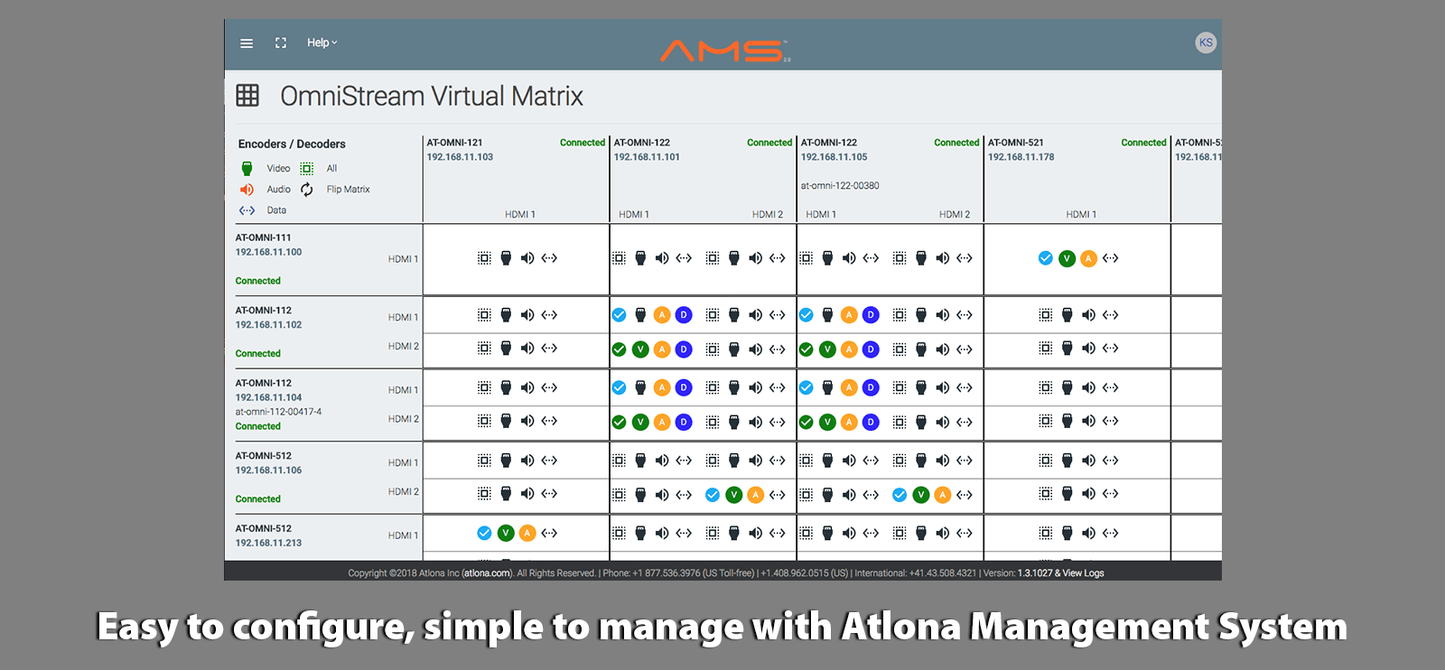

• Thumbnail Preview: View encoded video streams through the Velocity AV control or web GUI before display selection.

Specifications

• Video Resolution: Supports up to 4096×2160 (DCI) @ 30/24 Hz and 3840×2160 (UHD) @ 60/50/24/25/30 Hz.
• Audio Formats: Pass-through for LPCM 2.0, 5.1, 7.1, Dolby Digital, Dolby TrueHD, and DTS.
• Compression Format: VCx and VC-2 (SMPTE-2042) with user-selectable optimization modes.
• Latency: Less than 1 frame (e.g., 1080p @ 60 Hz latency is < 24 ms in Fast Switching mode).
• Ethernet Ports: 2 x RJ45 (10/100/1000 Mbps) for network connectivity.
• Control: RS-232 pass-through with adjustable baud rates and IR control support.
• Power Consumption: Up to 12 W with optional external 48V DC power supply.
