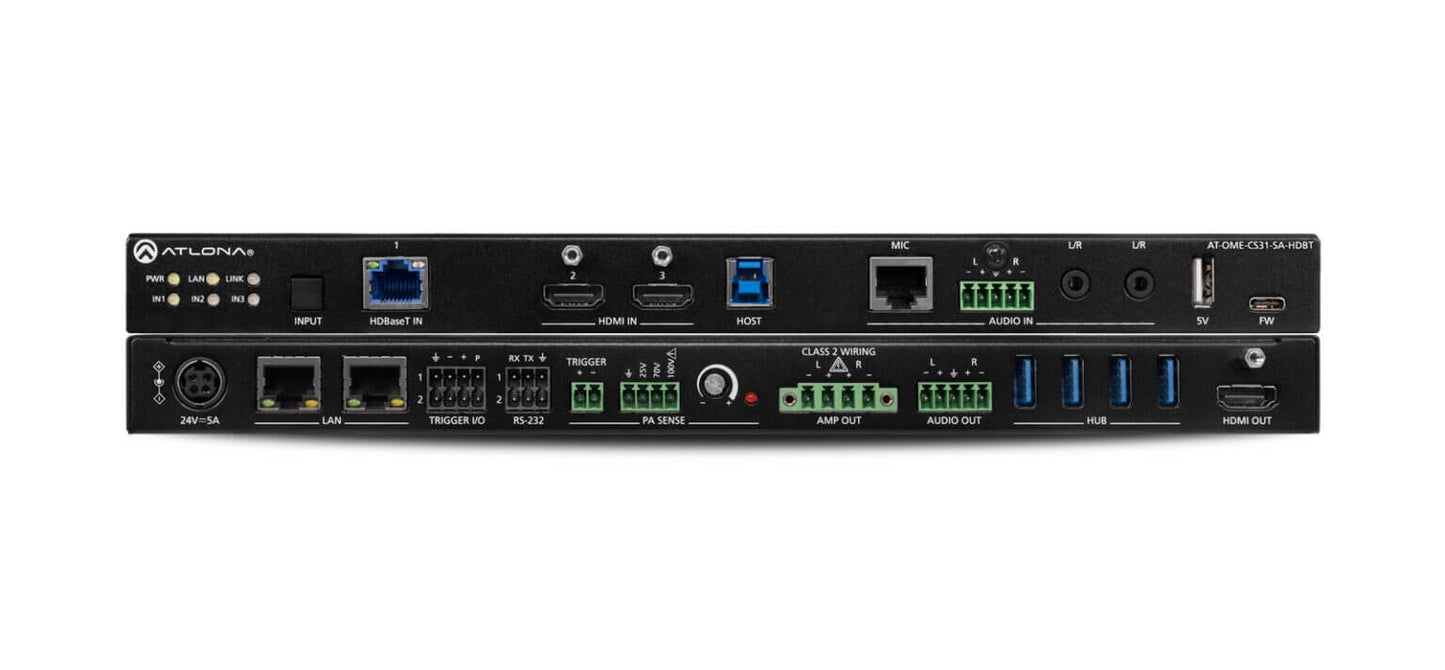

Atlona AT-OME-CS31-SA: 3x1 HDMI/HDBaseT Switcher

The Atlona AT-OME-CS31-SA-HDBT is a versatile AV presentation and collaboration system designed for modern classrooms and meeting environments. This all-in-one solution features 3x1 switching for both HDMI and HDBaseT inputs, a powerful 50-watt mixer amplifier, and USB routing for seamless integration of multiple devices. With advanced audio features like ducking and PA mute, it ensures clear communication during presentations. Ideal for hybrid meeting spaces, this device simplifies AV control and enhances collaboration.

Features

• 3x1 Switching: Connect up to three sources, including one HDBaseT and two HDMI inputs.
• 50-Watt Mixer Amplifier: Delivers powerful audio output, configurable as stereo or mono.
• USB Hub: Supports up to four USB peripheral devices, facilitating easy connectivity for cameras and interactive displays.
• Ducking Feature: Automatically lowers program audio when the instructor speaks into the microphone.
• PA Mute: Mutes audio during public address announcements to ensure clarity.
• Automatic Display Control: Powers displays on/off based on the activity of connected devices.
• Compact Design: Low-profile enclosure for flexible installation behind displays or under desks.

Specifications

• Video Inputs: 1 x HDBaseT, 2 x HDMI
• Audio Inputs: 1 x Balanced Stereo, 2 x Unbalanced Stereo
• Audio Output: 2 x 25W @ 4/8 ohms or 1 x 50W @ 4/8 ohms (bridged)
• USB Ports: 1 x USB-B host, 4 x USB-A peripheral
• Network: 2 x RJ45 Ethernet ports for IP control
• Control: 2 x RS-232 ports for device management
• Power Consumption: 95.3W
• Dimensions: 300 x 210 x 25 mm (11.81 x 8.27 x 0.98 inches)
• Weight: 1.7 kg (3.8 lbs)
• Compliance: HDCP 2.2, Energy Star qualified
