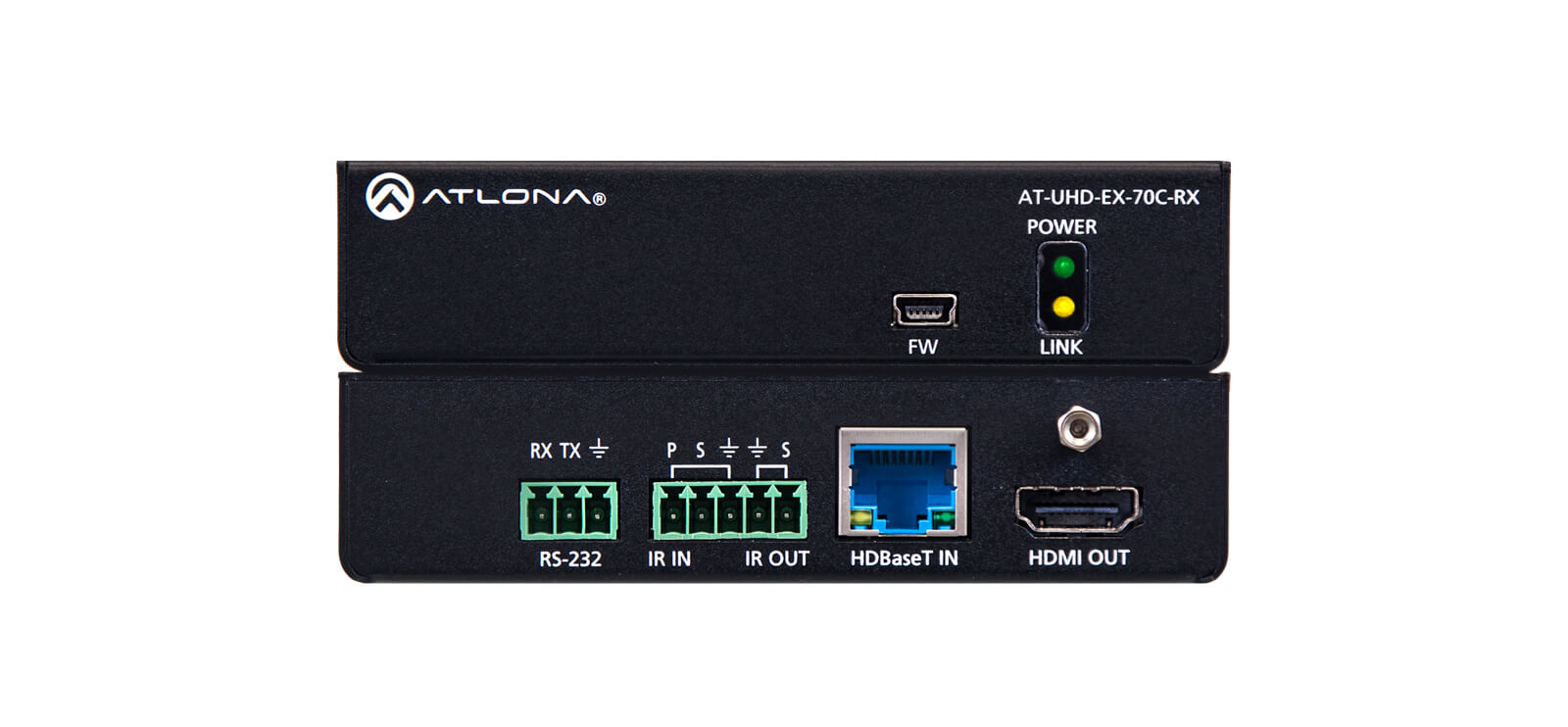

Atlona 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE

The Atlona AT-UHD-EX-70C-RX is a state-of-the-art HDBaseT receiver designed for high-performance AV signal transmission. It supports 4K/UHD video at 60Hz with embedded multi-channel audio, allowing seamless integration into both residential and commercial AV systems. With a compact quarter rack-width design, this receiver can be easily mounted behind displays and projectors, eliminating the need for an AC outlet thanks to its Power over Ethernet (PoE) capability.

Features

• 4K/UHD Support: Delivers stunning 4K resolution at 60Hz with 4:2:0 chroma subsampling.
• Long-Distance Transmission: Capable of transmitting AV signals up to 230 feet (70 meters) over category cable.
• Control Pass-Through: Supports RS-232 and IR control commands, enabling easy integration into existing control systems.
• Power over Ethernet: Simplifies installation by allowing the receiver to be powered through the HDBaseT connection.
• HDCP 2.2 Compliance: Ensures compatibility with the latest digital content protection standards.
• Multi-Channel Audio Support: Compatible with various audio formats including PCM, Dolby, and DTS.
• Field Updatable Firmware: Ensures the receiver can be kept up-to-date with the latest features and improvements.

Specifications

• Video Resolution: 4096×2160@60Hz, 3840×2160@60Hz
• Color Depth: 8-bit, 10-bit, 12-bit
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• Distance: Up to 230 feet (70 meters) for 4K signals
• Power Consumption: 7.19W (10.89W when paired with AT-UHD-EX-70C-TX)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity: 20% to 90% non-condensing
• Dimensions: 25 x 109 x 89 mm (0.98 x 4.29 x 3.50 inches)
• Weight: 0.33 kg (0.73 lbs)
