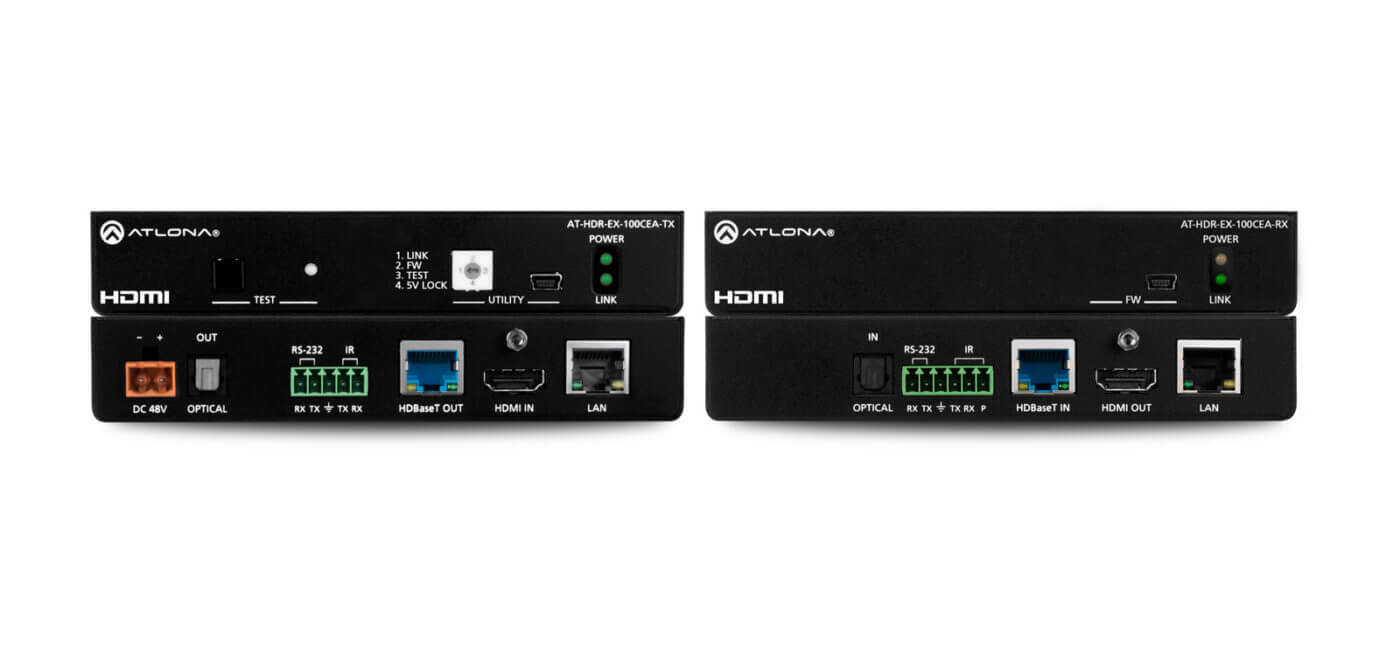

The Atlona AT-HDR-EX-100CEA-KIT is a state-of-the-art HDBaseT transmitter and receiver kit designed to deliver high dynamic range (HDR) content with stunning clarity and detail. This kit supports 4K/UHD video at 60 Hz with 4:4:4 chroma sampling and is equipped with advanced features such as Power over Ethernet (PoE), IR control, and multi-channel audio return, making it ideal for both residential and commercial applications.

Features

• 4K/UHD Capability: Supports resolutions up to 4096×2160 @ 60 Hz with 4:4:4 chroma sampling.
• HDR Support: Compatible with HDR10, HLG, and Dolby Vision formats for superior image quality.
• Long Distance Transmission: Extends HDMI, Ethernet, and control signals up to 330 feet (100 meters) using CAT6a/7 cables.
• Power over Ethernet (PoE): The receiver is powered remotely by the transmitter, simplifying installation.
• Visually Lossless Compression: Ensures high-quality video transmission without latency.
• Control Signal Extension: Supports RS-232, IR, and Ethernet control signals over HDBaseT.
• Return Audio Pathway: Enables audio return from a TV to an AV receiver via dedicated TOSLINK interfaces.
• HDCP 2.2 Compliance: Ensures compatibility with protected content and devices.
• User-Friendly Design: Features a low-profile, quarter rack-width enclosure for easy integration.

Specifications

• Input Signal: HDMI / HDBaseT
• Output Signal: HDMI / HDBaseT
• Copy Protection: HDCP 2.2
• Pixel Clock: 600 MHz
• Operating Temperature: +32 to +122 °F (0 to +50 °C)
• Storage Temperature: -4 to +140 °F (-20 to +60 °C)
• Power Consumption: Transmitter - 5.25 W, Receiver - 7.55 W
• Weight: Transmitter - 0.886 lbs (0.402 kg), Receiver - 0.873 lbs (0.396 kg)
• Dimensions (Transmitter): 1.02 x 5.74 x 3.74 inches (26 x 146 x 95 mm)
• Dimensions (Receiver): 1.02 x 5.74 x 3.81 inches (26 x 146 x 97 mm)
