Atlona 4K HDR 4-Output HDMI Distribution Amplifier (AT-RON-444)

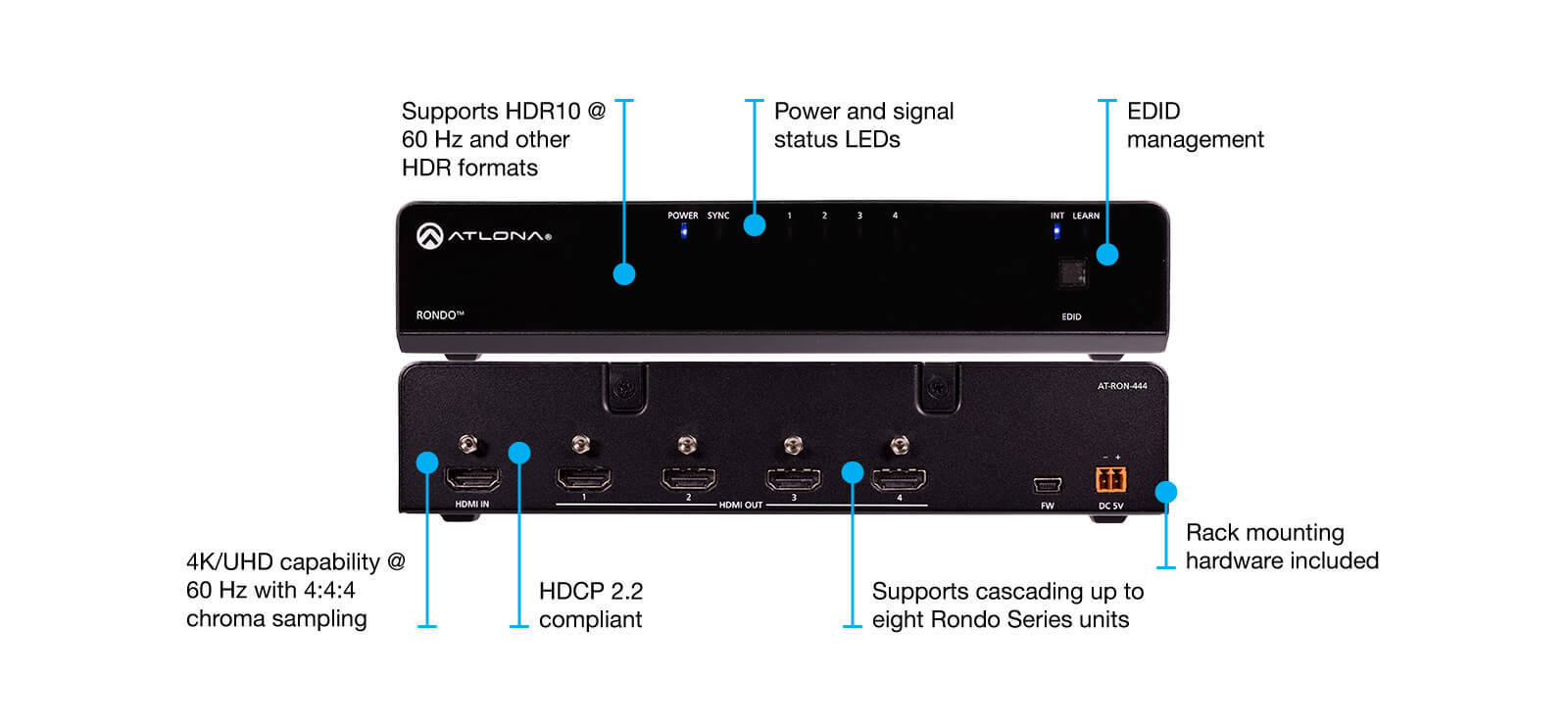

The Atlona Rondo™ 444 (AT-RON-444) is a premium 1x4 HDMI distribution amplifier designed for high dynamic range (HDR) formats. It supports 4K/UHD video at 60 Hz with 4:4:4 chroma sampling and HDMI data rates up to 18 Gbps, ensuring pristine image quality for both commercial and residential applications. With HDCP 2.2 compliance, EDID management features, and the ability to cascade multiple units, the Rondo 444 is perfect for integrating the latest 4K/UHD and HDR sources into your AV system.

Features

• 1x4 HDMI Distribution: Provides reliable signal distribution to four outputs.
• 4K/UHD Capability: Supports resolutions up to 3840x2160 at 60 Hz with 4:4:4 chroma sampling.
• HDR Support: Compatible with HDR10 and Dolby® Vision™ for enhanced color and contrast.
• HDCP 2.2 Compliant: Adheres to the latest specifications for digital content protection.
• EDID Management: Manages EDID communications to ensure optimal audio formats and video resolutions.
• Cascading Support: Allows connection of up to eight units without performance loss.
• Multi-Channel Audio Compliance: Supports various audio formats including Dolby Atmos® and DTS:X®.
• Field-Updateable Firmware: Easily update firmware via USB for enhanced functionality.
• Front Panel LED Indicators: Provides clear power and signal status for easy troubleshooting.
• Rack-Mountable: Designed for easy installation in standard 1U half-rack width enclosures.

Specifications

• Video Resolutions: 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 1080p@up to 60Hz, and more.
• Audio Formats: Supports PCM 2Ch, LPCM 5.1, Dolby Digital, DTS 5.1, Dolby Atmos, and more.
• Bandwidth: 18 Gbps.
• Operating Temperature: 0°C to 50°C (32°F to 122°F).
• Storage Temperature: -20°C to 60°C (-4°F to 140°F).
• Power Consumption: 6.75W.
• Dimensions: 44mm x 219.5mm x 253.7mm (1.73in x 8.64in x 9.98in).
• Weight: 1.39 kg (3.07 lbs).
• Certification: CE, FCC compliant.
