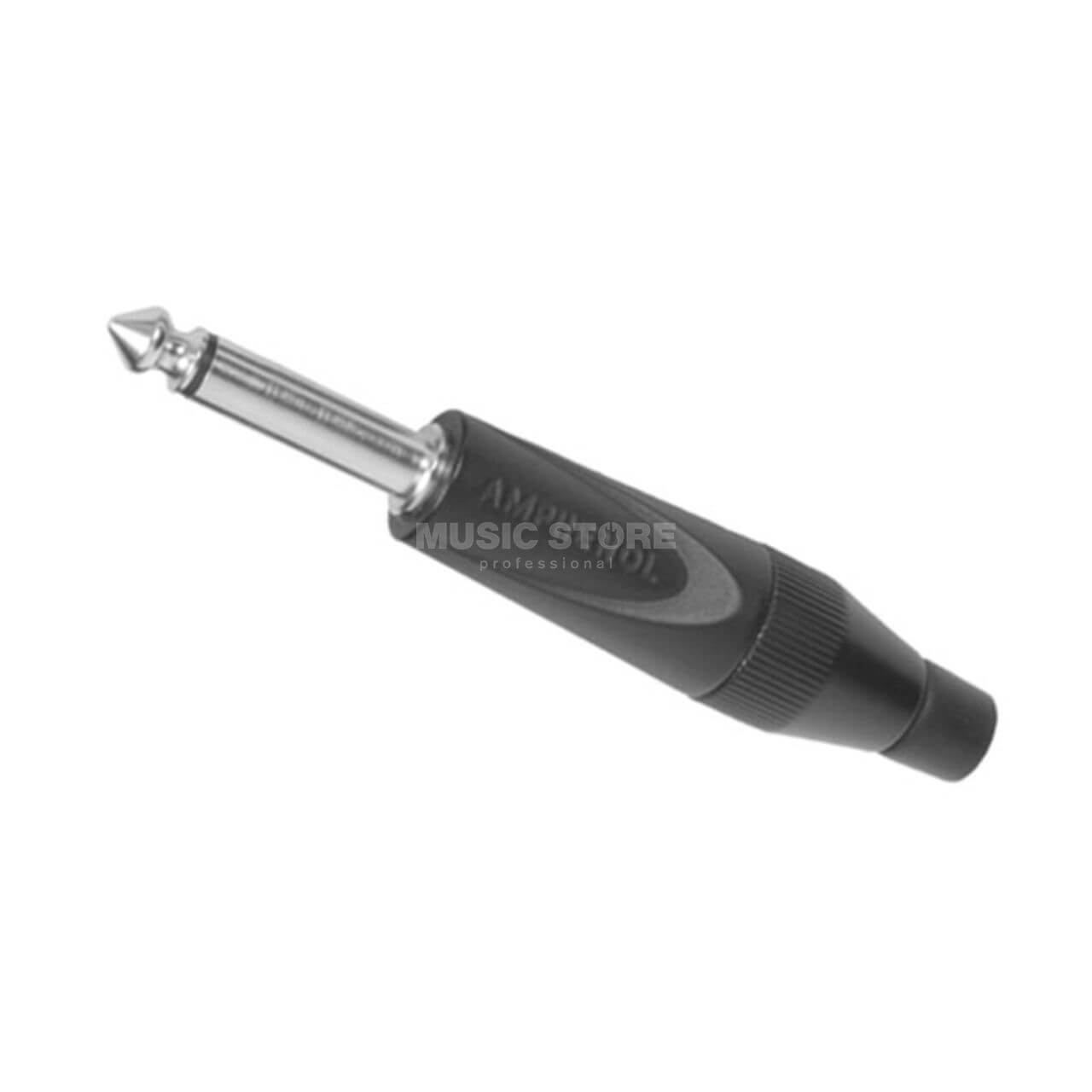

Amphenol TM2PBJ Mono Jack Plug, Diecast Body, Black Finish, L J

The Amphenol TM2PBJ is a professional-grade 1/4" mono straight phone plug designed for both home and professional audio applications. Featuring a robust diecast zinc alloy body with a thermoplastic backshell, this connector ensures durability and reliability. Its patented 'Jaws' cable strain relief system provides superior stability and can withstand heavy loads, making it ideal for demanding environments. The gold-plated contacts guarantee excellent signal transmission and corrosion resistance, while the easy installation process requires no screws, accommodating cables with an outer diameter of 6-7 mm.

Features

• Durable Construction: Made from diecast zinc alloy with a thermoplastic backshell for enhanced durability.
• High Current Capacity: Supports up to 10A current carrying capacity depending on the mating connector and cable.
• Easy Installation: Features an extra-large clamping jaw design for quick and tool-free mounting.
• Gold-Plated Contacts: Ensures clean signal transmission and protection against corrosion.
• Patented 'Jaws' Strain Relief: Provides excellent cable support and stability under heavy loads.
• Wide Operating Temperature: Functional in temperatures ranging from -25°C to +75°C (-13°F to +167°F).

Specifications

• Connector Type: 1/4" Mono Jack
• Positions: 2
• Max Wire Gauge: 16AWG - 1.5mm²
• Mating Cycles: 1000
• Flammability Rating: UL94V-0 or UL94-HB
• IP Rating: IP40
• Environmental Compliance: Complies with EU RoHS 2 Directive 2011/65/EU
