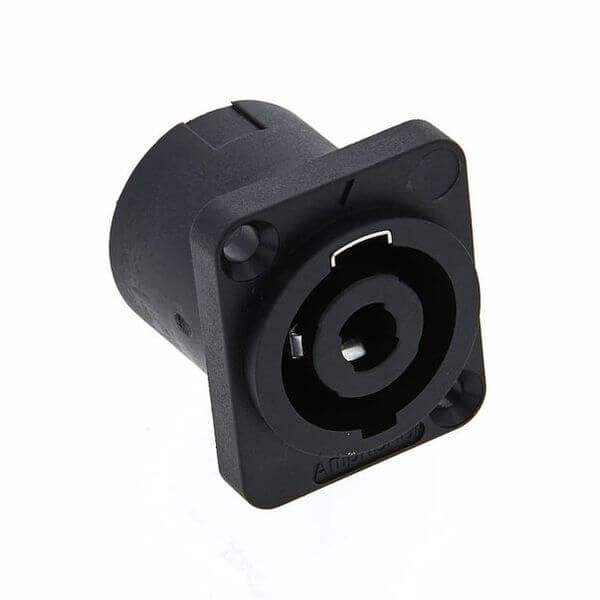

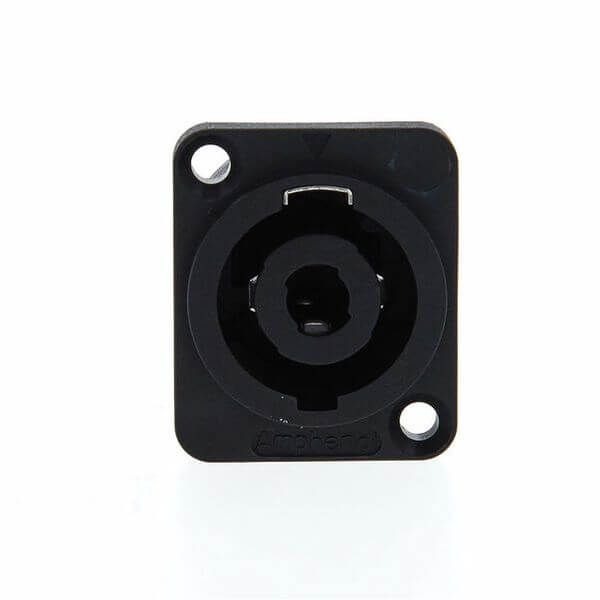

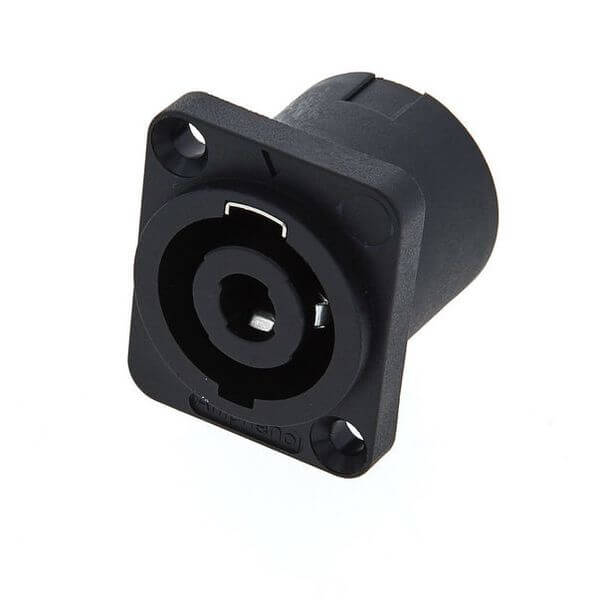

Amphenol SP-4-MD 4-Pole Speaker Plug with D Flange and S

The Amphenol SP-4-MD Speaker Plug is a high-quality 4-pole connector designed for reliable audio connections. Featuring a durable D-type flange and thru holes for easy mounting, this connector is perfect for professional audio applications. Its solder tab design ensures secure and stable connections, making it ideal for both permanent installations and temporary setups.

Features

• 4-Pole Configuration: Supports multiple audio channels for enhanced sound quality.
• D Flange Design: Provides a robust and secure mounting option for panel installations.
• Thru Holes: Facilitates easy and flexible mounting options.
• Solder Tabs: Ensures a strong and reliable electrical connection.
• Durable Construction: Built to withstand the rigors of professional use.

Specifications

• Rated Voltage: 133 V
• Rated Current (40 °C): 30 A
• Operating Temperature Range: -25°C to +75°C
• Flammability Rating: UL94HB
• Insulation Resistance: >1 GΩ
• Mating Cycles: 5000
