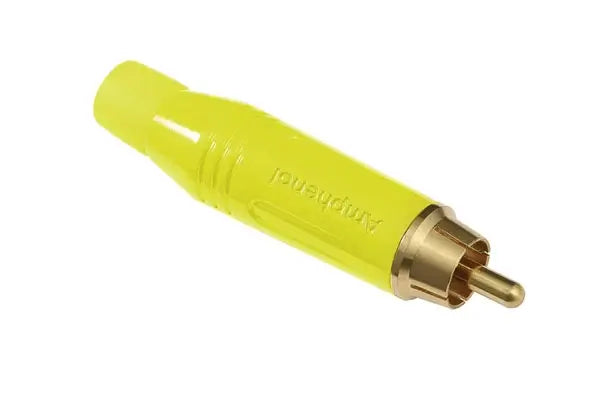

Amphenol RCA Male Connector, Gold Contacts, Yellow Inline Finish

The Amphenol ACPR-YEL RCA Male Connector is designed for high-performance audio and lighting applications. Featuring gold plated contacts for superior conductivity and a durable diecast shell, this connector ensures reliable connections. Its vibrant yellow finish and grommet not only enhance aesthetics but also provide a robust solution for various wiring needs.

Features

• Gold Plated Contacts: Provides excellent conductivity and minimizes signal loss.
• Diecast Zinc Alloy Housing: Ensures durability and resistance to wear and tear.
• Yellow Finish: Bright and easily identifiable for quick connections.
• IP40 Rating: Offers protection against solid objects greater than 1mm, suitable for indoor use.
• Solder Termination: Allows for secure and reliable connections.
• Current Carrying Capacity: Capable of handling up to 10A depending on the mating connector.

Specifications

• Positions: 2
• Gender: Male
• Contact Plating: Gold
• Max Wire Gauge: 14AWG - 2.5mm²
• Flammability Rating: UL94V-0
• Environmental Compliance: Complies with EU RoHS 2 Directive 2011/65/EU
• Typical Contact Resistance: < 10mΩ (Depends on mating connector)
• Insulation Resistance: < 2GΩ / >10³ Meg Ω after Damp Heat Test
• Operating Temperature: -25°C to + 75°C (-13°F to 167°F)
• Insertion and Withdrawal Force: > 10N - < 30N
• Cable OD Range: 3mm to 7mm (0.11" to 0.275")
• Mating Cycles: 500
