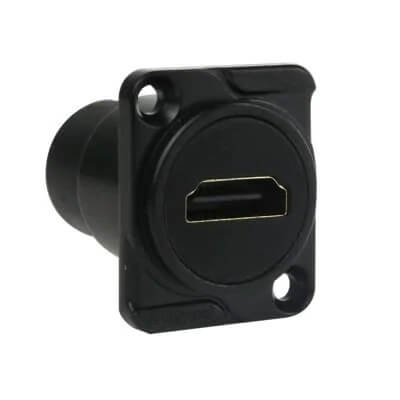

Amphenol Black HDMI-HDMI D Type Panel Mount Connector Feedthrough

The Amphenol HDMI-HDMI Feedthrough D Type Panel Mount Connector (AC-HDMI-RRB) is designed for seamless integration in audio and lighting applications. This robust connector features a stylish black finish and is built to provide reliable performance with a high current carrying capacity of 10A. Its durable diecast zinc alloy housing ensures longevity while the gold-plated brass alloy contacts deliver superior conductivity. With an IP40 rating, it is suitable for various environments and offers a temperature range from -25°C to +75°C. Ideal for professional audio and lighting setups, this connector supports up to 1000 mating cycles and complies with EU RoHS directives.

Features

• High Current Capacity: Supports up to 10A depending on the mating connector.
• Durable Housing: Made of diecast zinc alloy for enhanced durability.
• Gold-Plated Contacts: Brass alloy contacts with gold plating for improved conductivity.
• Wide Operating Temperature: Functions effectively between -25°C to +75°C (-13°F to +167°F).
• High Mating Cycles: Designed for up to 1000 mating cycles for longevity.
• IP40 Rating: Provides protection against solid objects greater than 1mm, ensuring reliability in various environments.
• RoHS Compliant: Complies with EU RoHS 2 Directive 2011/65/EU.

Specifications

• Mating Cycles: 1000
• Current Carrying Capacity: 10A
• Housing Material: Diecast Zinc Alloy EZDA No.3
• Contact Type: Brass Alloy
• Contact Plating: Gold
• IP Rating: IP40
• Termination Type: Thru-adaptor
• Max Wire Gauge: AWG 14 - 2.5mm²
• Operating Temperature: -25°C to +75°C (-13°F to +167°F)
• Flammability Rating: UL94V-0
• Application(s): Audio & Lighting
