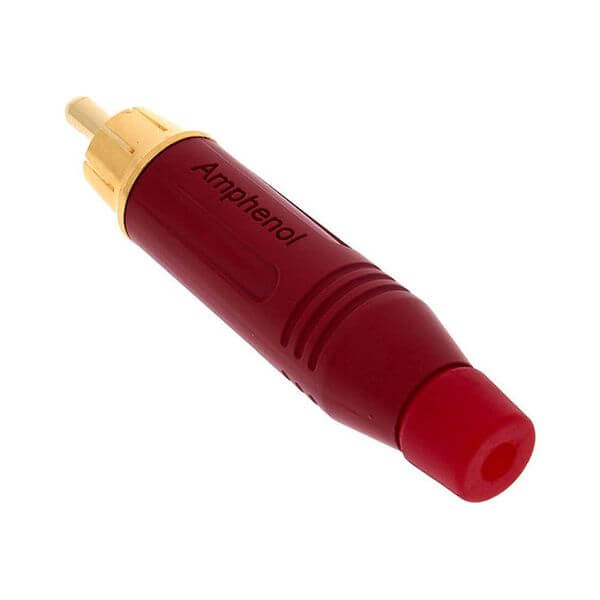

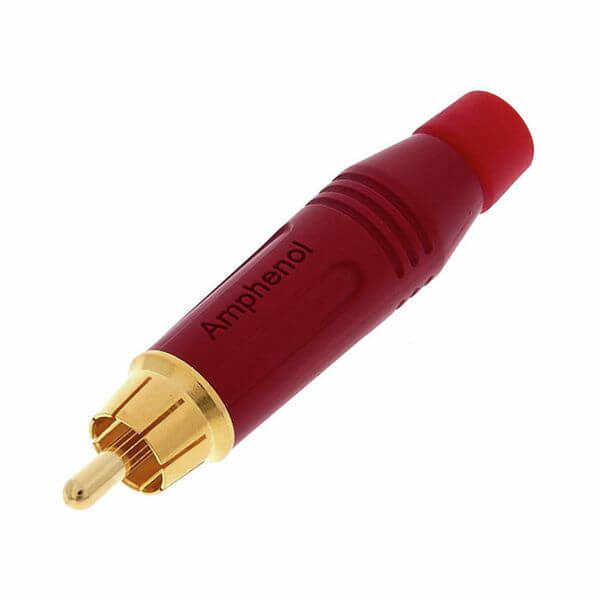

Amphenol ACPR-RED RCA Male Connector, Gold Plated, Red Design

The Amphenol ACPR-RED RCA Male Connector is designed for high-performance audio applications, featuring a robust diecast shell and gold plated contacts for superior signal transfer. This connector is ideal for soldering to studio-quality cables, ensuring reliability in critical recording and broadcast environments. With its vibrant red color, it not only stands out but also aids in easy identification during setup.

Features

• Gold Plated Contacts: Ensures excellent conductivity and minimizes signal loss.
• Diecast Zinc Alloy Housing: Provides durability and protection against wear and tear.
• Color-Coded Design: The striking red finish allows for easy identification and organization of cables.
• Flexible Grommet: Protects the cable from pulling and enhances durability.
• RoHS Compliant: Meets environmental standards for safety and sustainability.

Specifications

• Number of Contacts: 2
• Termination Type: Solder
• Max Wire Gauge: AWG 14 (2.5mm²)
• Current Carrying Capacity: 10A (depends on mating connector)
• Typical Contact Resistance: ≤10mΩ (depends on mating connector)
• Insulation Resistance: >2GΩ
• Operating Temperature: -25°C to +75°C (-13°F to +167°F)
• Protection Class: IP40
• Mechanical Operations: 500 mating cycles
• Weight: 18g
