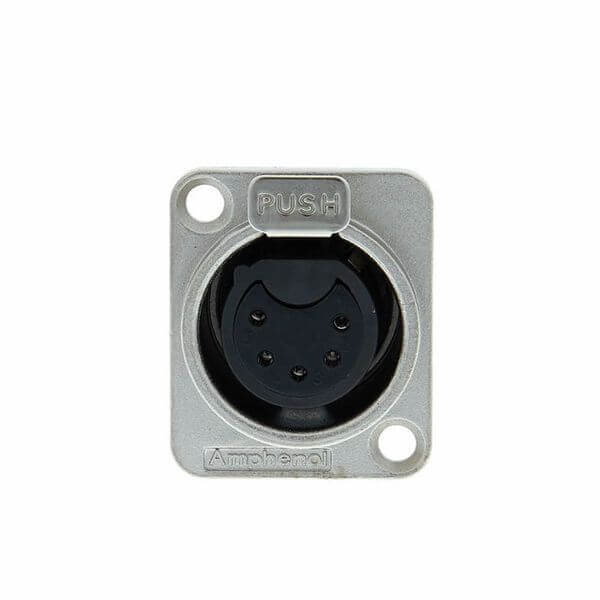

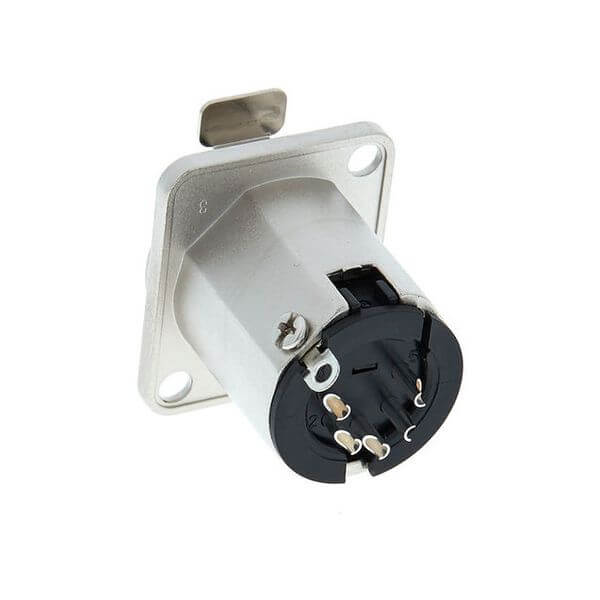

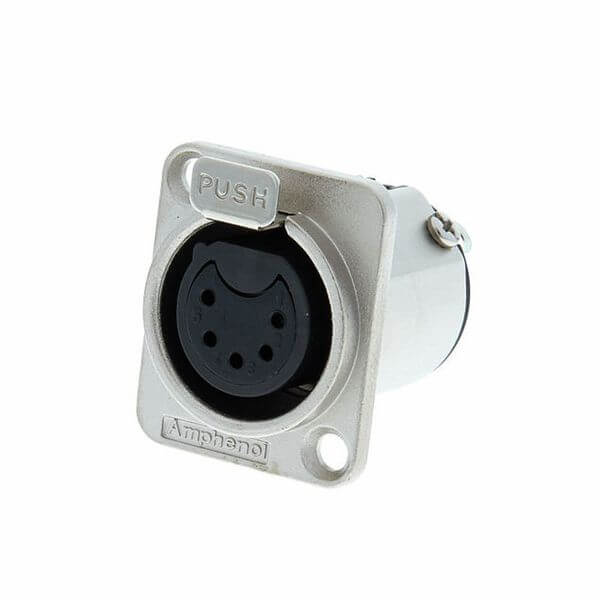

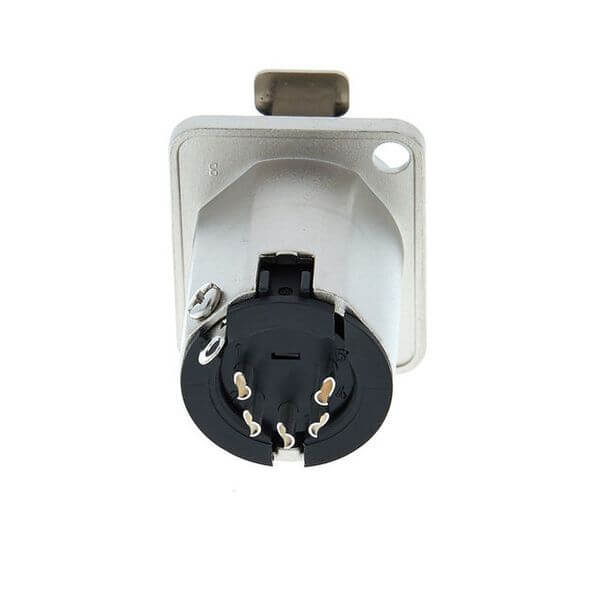

The Amphenol AC5FDZ is a high-quality female XLR chassis mount connector designed for reliable audio and lighting applications. Featuring a robust 5-pin configuration, this connector is built with machined contacts and a durable nickel finish to ensure excellent conductivity and longevity. Ideal for professional audio setups, it provides secure solder connections and is compatible with various D Series equipment.

Features

• 5-Pin Configuration: Standard pin arrangement for versatile applications.
• Machined Contacts: Ensures superior conductivity and reliability.
• Nickel Finish: Offers enhanced durability and resistance to corrosion.
• Solder Termination: Allows for secure and permanent connections.
• D Series Design: Compatible with a wide range of equipment.

Specifications

• Current Carrying Capacity: 7.5A
• IP Rating: IP40
• Contact Type: Machined
• Contact Plating: Silver
• Max Wire Gauge: 18AWG
• Operating Temperature: -25°C to +75°C (-13°F to +167°F)
• Mating Cycles: 1000
• Housing Material: Diecast Zinc Alloy
• Environmental Compliance: EU RoHS 2 Directive 2011/65/EU
