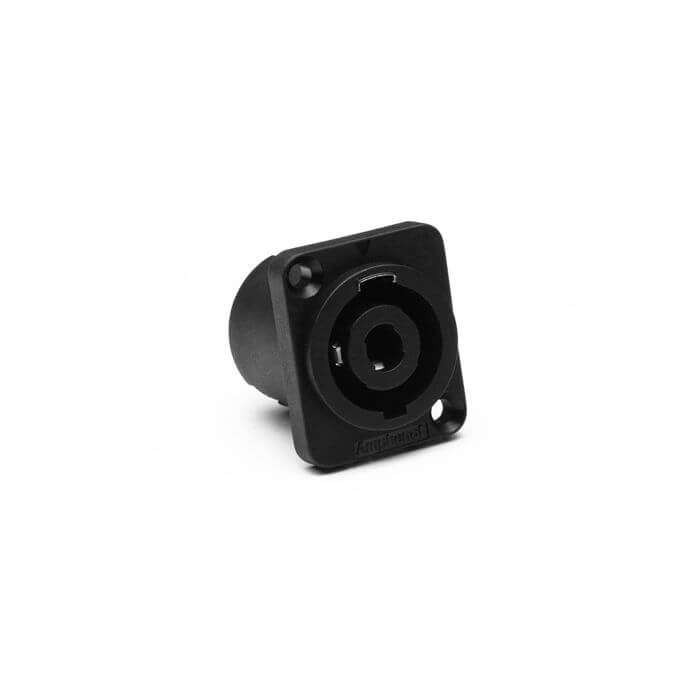

Amphenol 2 Pole Loudspeaker Mount with D Flange & Solder Tabs

The Amphenol SP-2-MD BULK is a high-quality 2 pole loudspeaker chassis mount designed for audio applications. Featuring a durable 'D' type flange with thru holes and solder tabs, this component ensures reliable connections and excellent performance in various environments. Ideal for professional audio and lighting setups, it provides a current carrying capacity of up to 30A and is built to withstand operating temperatures from -25°C to +75°C.

Features

• 2 Pole Configuration: Allows for easy integration in audio systems.
• Durable Housing: Made from PA66 GF30 thermoplastic for enhanced strength.
• High Current Capacity: Supports up to 30A for robust audio performance.
• IP20 Rating: Suitable for indoor use with protection against solid objects.
• Solder Tabs: 3/16" tabs ensure secure and reliable connections.
• Mating Cycles: Rated for up to 5000 mating cycles for long-term reliability.
• RoHS Compliant: Meets EU RoHS 2 Directive 2011/65/EU for environmental safety.

Specifications

• Positions: 2
• Current Carrying Capacity: 30A
• Housing Material: PA66 GF30
• IP Rating: IP20 (IP40 Mated Condition)
• Finish: Black
• Termination: Solder Tabs 3/16"
• Operating Temperature: -25°C to +75°C (-13°F to +167°F)
• Flammability Rating: UL94HB
• Typical Contact Resistance: <3mΩ
• Insulation Resistance: >1GΩ
• Mating Cycles: 5000
