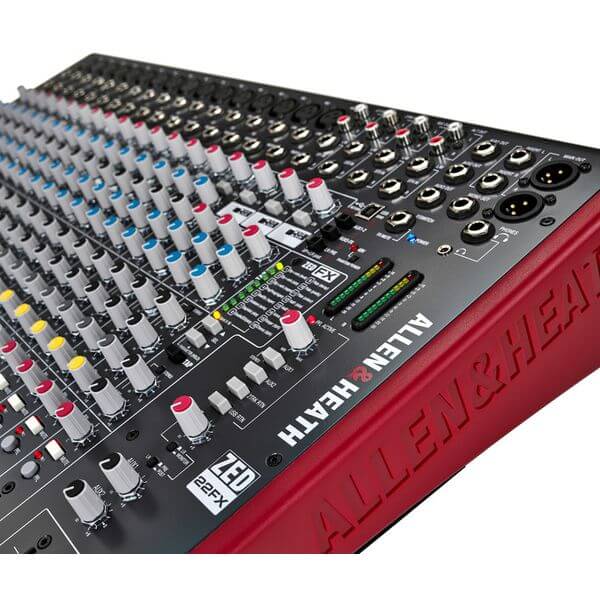

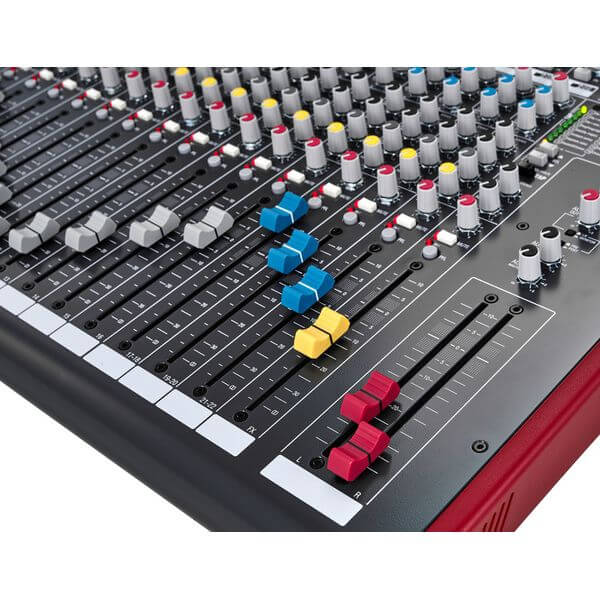

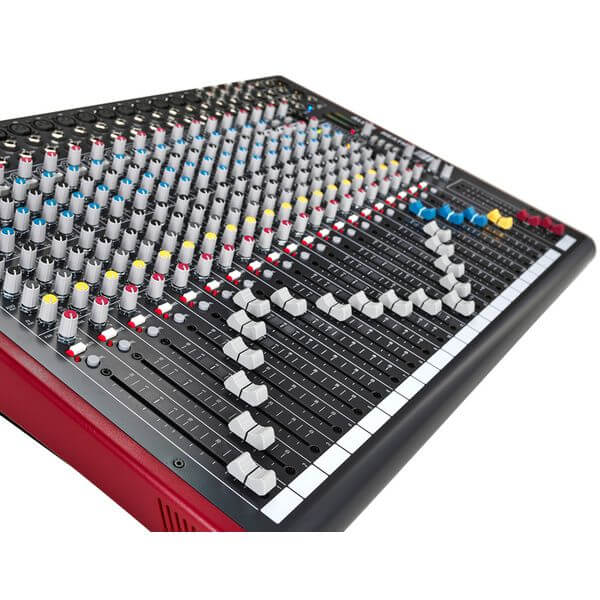

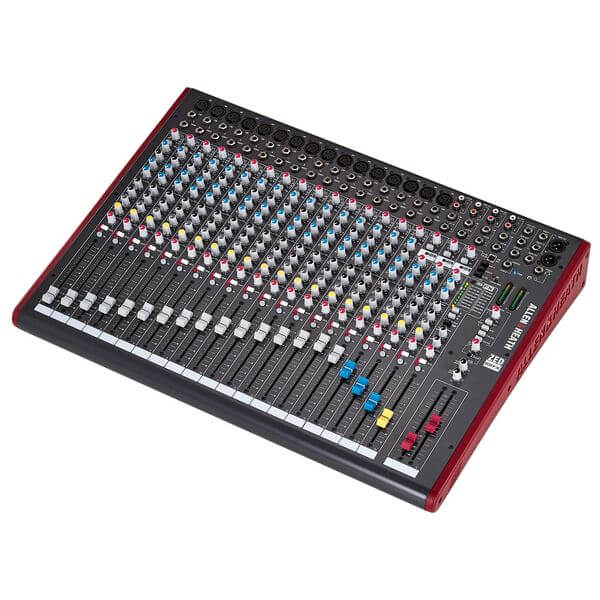

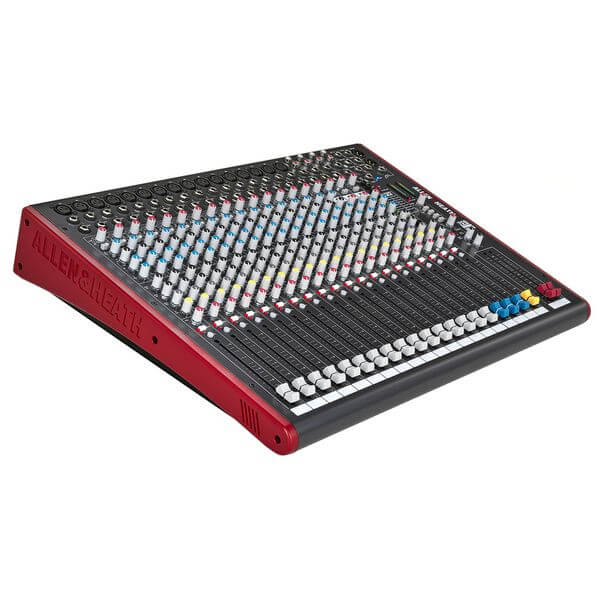

Allen & Heath ZED-22FX: 22-Channel Mixer with FX and USB output.

The Allen & Heath ZED-22FX is a robust 22-channel mixer designed for both live performances and studio recordings. It features 16 mic/line inputs, 3 stereo channels, and built-in effects, making it ideal for musicians, bands, and audio professionals seeking high-quality sound and versatility.

Features

• 16 Mic/Line Inputs: Connect multiple microphones and instruments with ease.
• 3 Dual Stereo Inputs: Additional connectivity for stereo devices.
• DuoPre TM Preamp: Provides a 69 dB gain range for clear and powerful sound.
• Built-in Effects Unit: Offers 16 presets including reverb and delay, with editable parameters for customization.
• USB Send and Return: Easily connect to computers for recording and playback.
• High-Pass Filter: Eliminates unwanted low frequencies on every mono input.
• 3 AUX Sends: Flexible routing options for monitors and effects.
• Insert per Channel: Allows for external processing of individual channels.

Specifications

• Dimensions: 645 x 95 x 465 mm
• Weight: 11.5 kg
• Power Source: Corded Electric
• Connectivity Technology: USB
• Total Channels: 22 (16 Mic/Line, 3 Stereo, 2 USB)
• Master Control: Master LR with 12 Bar LR displays
