Allen & Heath GX4816 - Audio Rack (96kHz, 48 XLR In, 16 XLR Out) for SQ, Avantis, and dLive

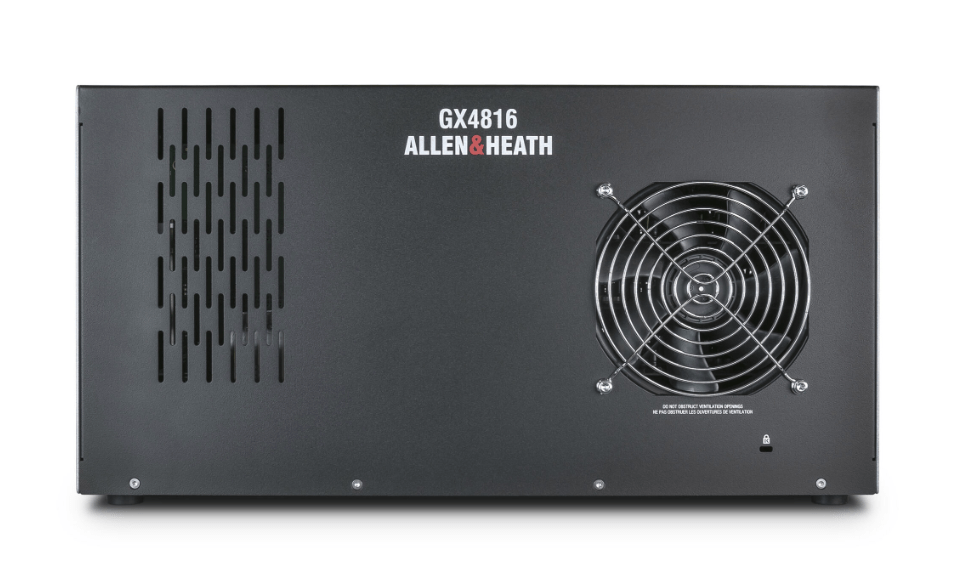

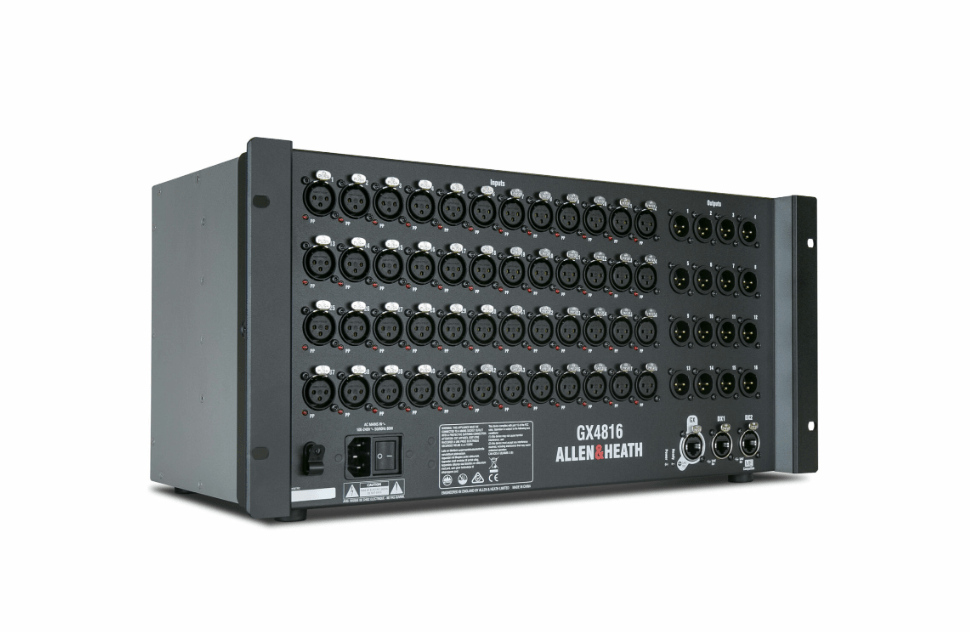

The Allen & Heath GX4816 is a powerful 96kHz audio expander designed to elevate your audio mixing experience. With 48 XLR inputs and 16 XLR outputs, it seamlessly integrates with SQ, Avantis, and dLive mixing systems, providing high-quality audio and flexible I/O expansion. Its user-friendly design requires no configuration, allowing for quick setup and automatic firmware updates through the mixer.

Features

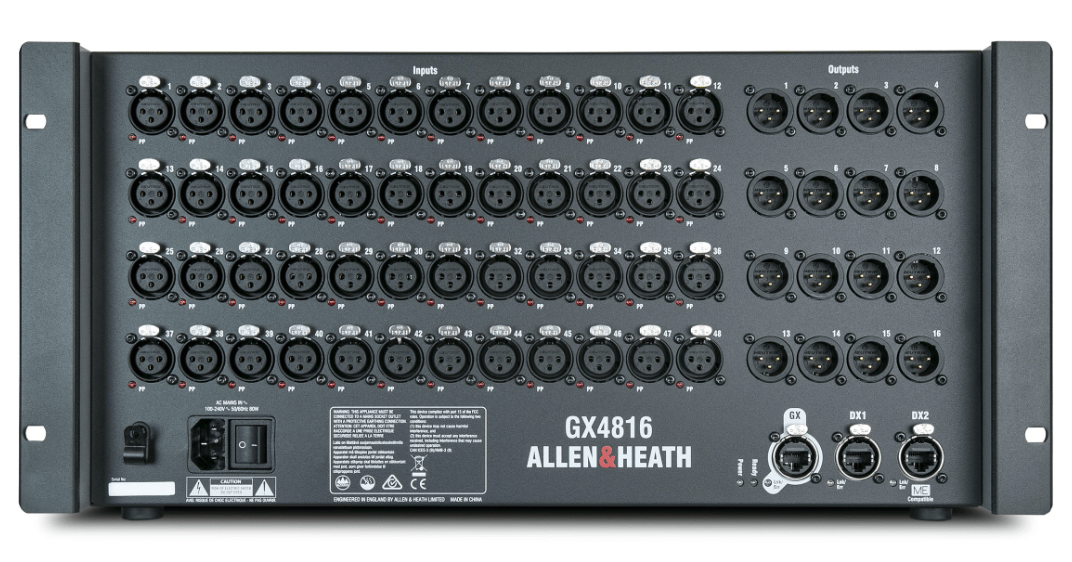

• High Input Count: Offers 48 dLive mic preamps with independent Phantom Power indicators for versatile audio input.
• Flexible Output Options: Features 16 balanced, relay-protected XLR outputs for reliable audio transmission.
• Easy Integration: Connects directly to SQ, Avantis, and dLive systems without any configuration needed.
• Extended Connectivity: Includes 2 DX ports for connecting additional DX expanders or the ME Personal Monitoring System.
• Long Distance Placement: Can be positioned up to 100 meters away from the mixer for optimal flexibility.
• Rack-Mountable Design: Integrated rack ears allow for easy mounting in a standard 5U 19" rack space.
• Automatic Firmware Updates: Simplifies maintenance with automatic firmware updates managed through the connected mixer.

Specifications

• Sample Rate: 96 kHz
• Input Channels: 48 XLR inputs
• Output Channels: 16 XLR outputs
• Gain: +60 dB
• Phantom Power: Yes, with LED indicators
• Pad: -20 dB pad for line level sources
• DX Ports: 2 for additional expanders
• Distance from Mixer: Up to 100 meters
