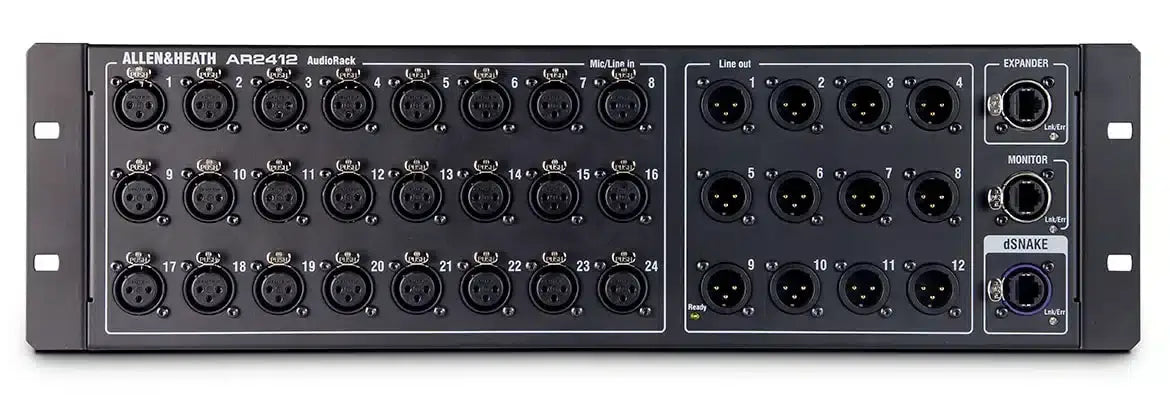

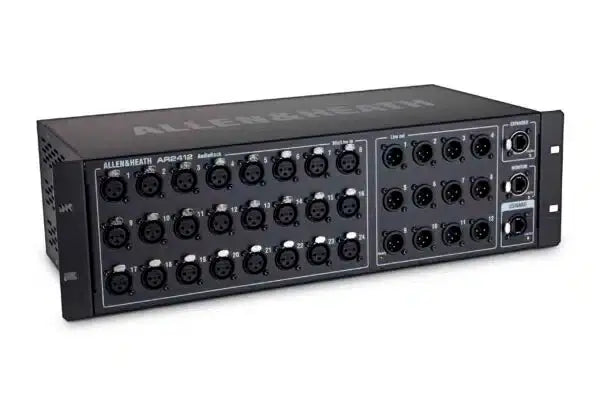

Allen & Heath GLD-AR2412 - Audio Rack (48kHz, 24 XLR In, 12 XLR Out) for Qu Series

The Allen & Heath GLD-AR2412 is a robust audio rack designed for professional audio mixing, featuring 24 XLR inputs and 12 XLR outputs. Operating at 48kHz, it provides exceptional audio quality and flexibility for both live and studio environments. Its compatibility with Qu, Avantis, and SQ mixers, along with automatic firmware updates, makes it an essential component for any audio setup.

Features

• High Gain: Offers +60dB of gain with a -20dB pad for line level sources, ensuring optimal audio performance.
• Flexible Connectivity: Connects via a single Cat5 cable, allowing placement up to 100m away from the mixer.
• Daisy-Chaining Capability: Includes a second port for daisy-chaining to another compatible expander or connecting to the ME Personal Mixing System.
• Automatic Updates: No configuration required; firmware updates are handled automatically by the mixer.
• Relay Protected Outputs: Features balanced, relay-protected line outputs on XLR for reliable performance.
• Rack Mountable: Designed to fit in a 3U 19” rack space with included rack ears, facilitating easy installation.

Specifications

• Audio Sample Rate: 48kHz
• Inputs: 24 XLR
• Outputs: 12 XLR
• Gain Range: +60dB with -20dB pad
• Connection Type: Cat5 cable
• Maximum Distance: Up to 100m from the mixer
• Rack Space: 3U
• Compatibility: Qu, Avantis, SQ mixers, and AHM audio matrix processors
