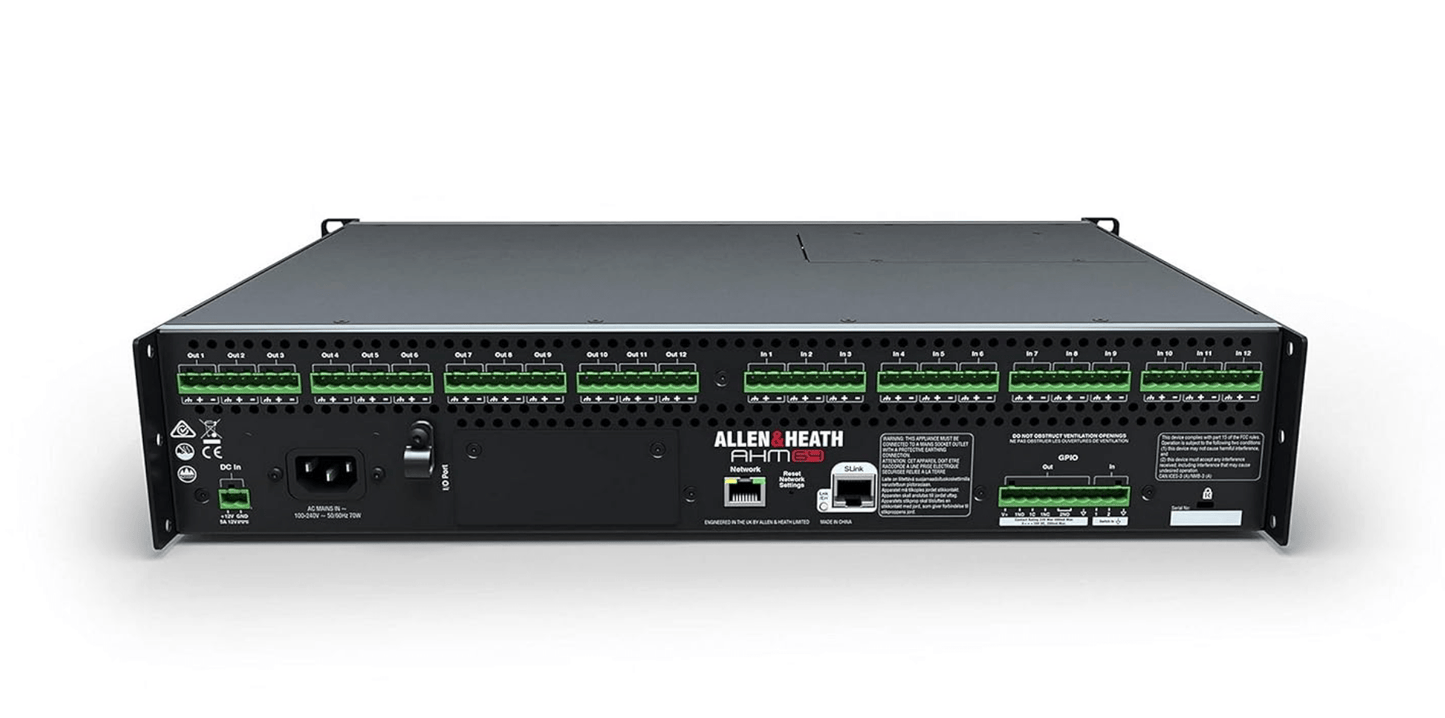

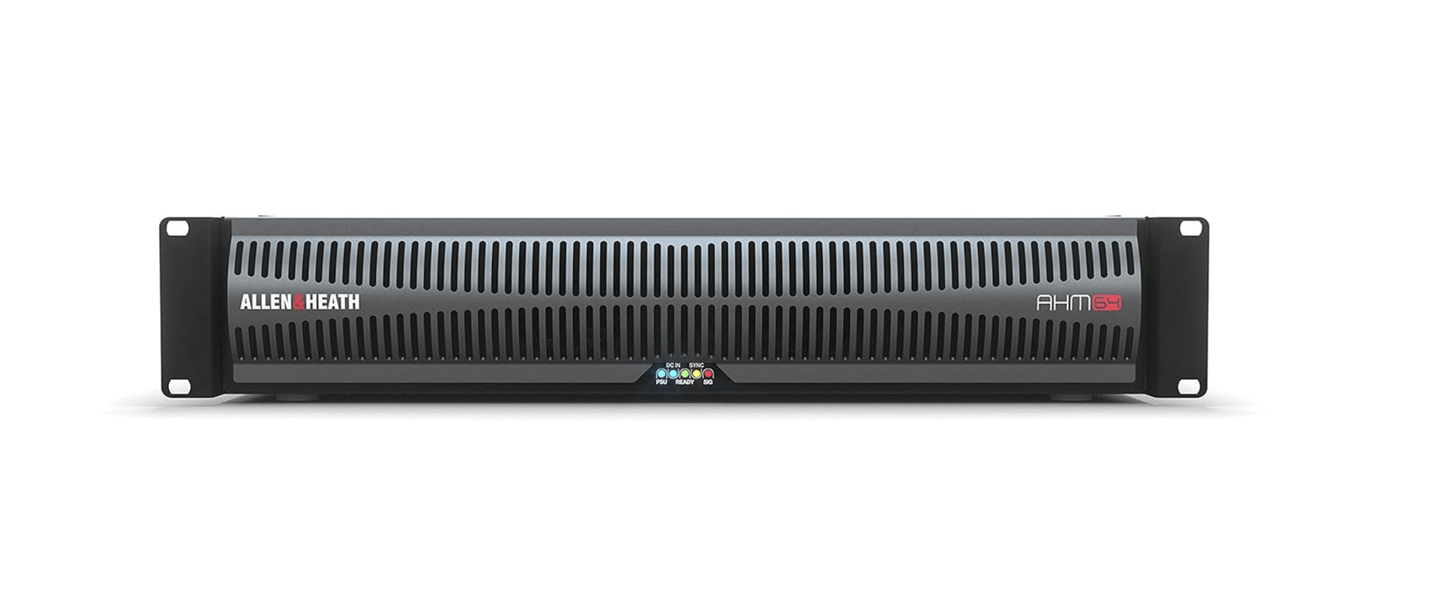

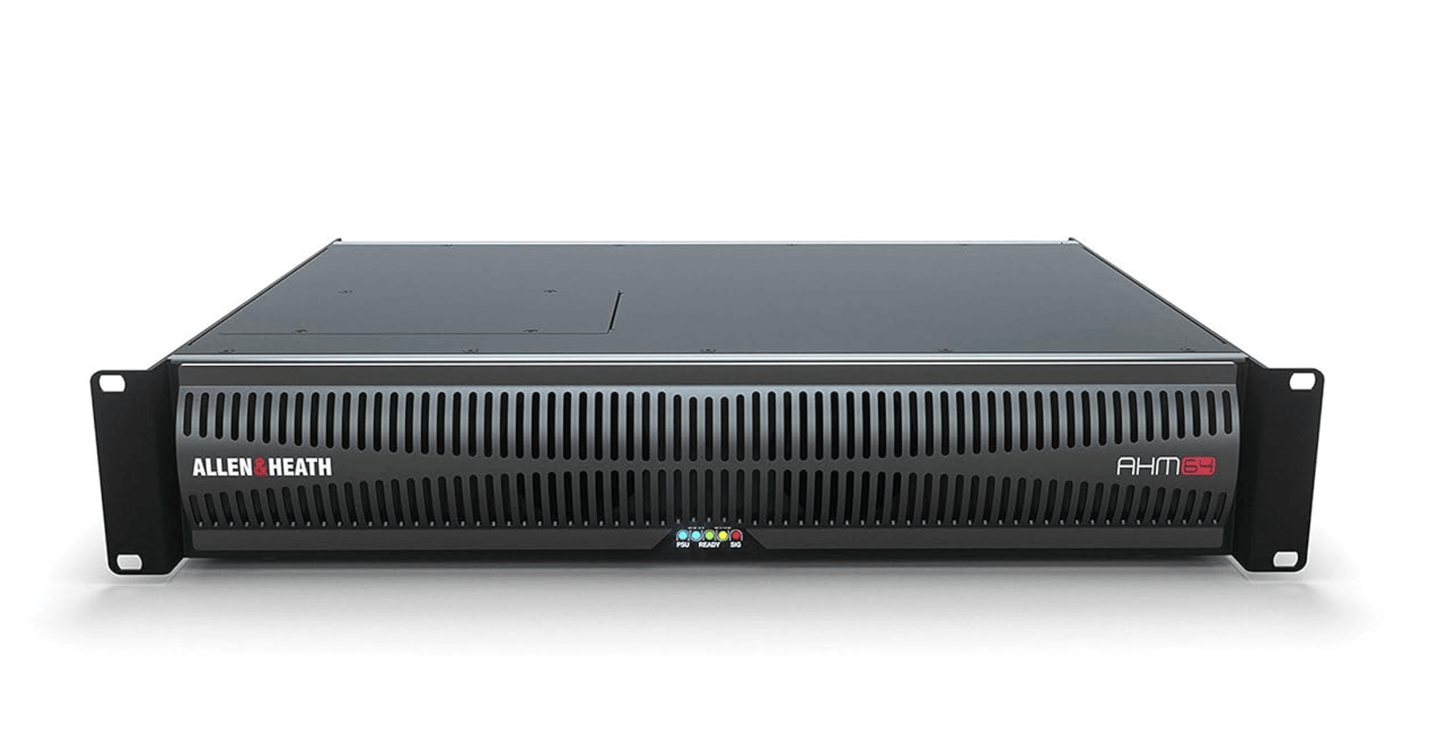

Allen & Heath AHM-64 - 64x64 Audio Matrix Processor with Audio Networking and Expansion

The Allen & Heath AHM-64 is a state-of-the-art 64x64 audio matrix processor designed for large-scale installations. With its powerful routing capabilities, it supports up to 64 zones and 96 controllers, making it ideal for complex audio environments such as campus installations. Featuring 12 mic/line inputs and 12 relay-protected line outputs, this processor offers extensive connectivity options including Dante, MADI, Waves, and SLink. The AHM-64 is equipped with advanced sound management tools, including automatic mic mixers, ambient noise compensation, and priority ducking, ensuring optimal audio performance in any setting.

Features

• 64x64 Audio Matrix: Supports up to 64 zones and 96 controllers, perfect for large installations.
• Flexible Routing: Configurable processing on all 64 outputs for tailored audio management.
• Robust Connectivity: 12x mic/line inputs and 12x relay-protected line outputs on Phoenix connectors.
• Card Options: Expandable with Dante, MADI, Waves, and SLink interface cards.
• Advanced Sound Management: Features 8x automatic mic mixers, ambient noise compensation, and priority ducking.
• Comprehensive Processing: 8-band PEQ, dynamics, and delay available on every input and zone.
• Speaker Processing: Includes crossover filter, delay, limiter, and PEQ for enhanced sound control.
• Acoustic Echo Cancellation: Optional AEC module designed for teleconferencing and videoconferencing applications.

Specifications

• Inputs: 12x mic/line inputs
• Outputs: 12x relay protected line outputs
• Audio Matrix: 64x64
• Card Options: Dante, MADI, Waves, SLink
• Processing Tools: 8x Automatic Mic Mixers, ANC, Priority Ducking
• Equalization: 8-band PEQ on every input and zone
• Dimensions: 482mm (W) x 44mm (H) x 300mm (D)
• Weight: 4.5 kg
