AIDA Imaging VISCA Camera Control Unit & Software for Easy Control

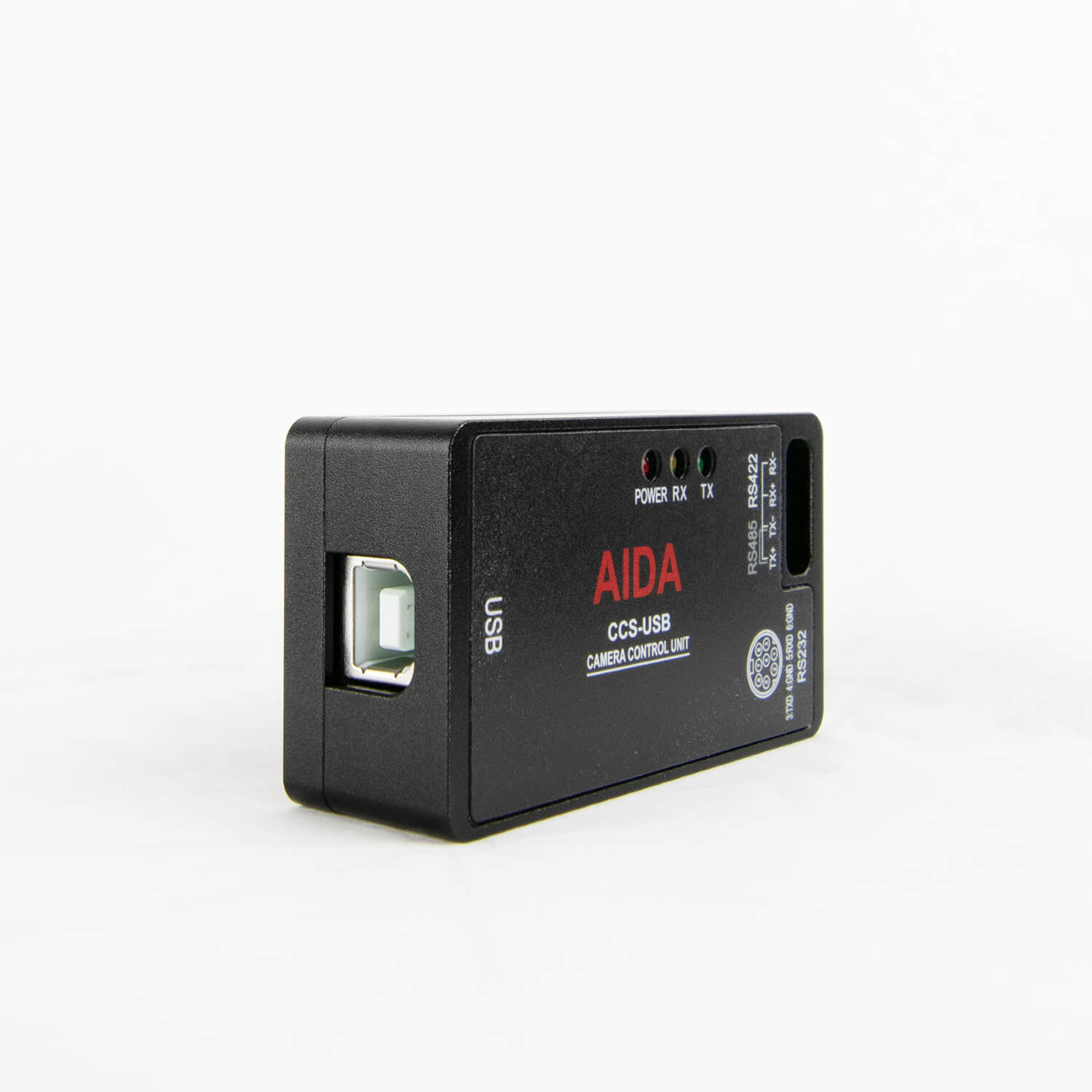

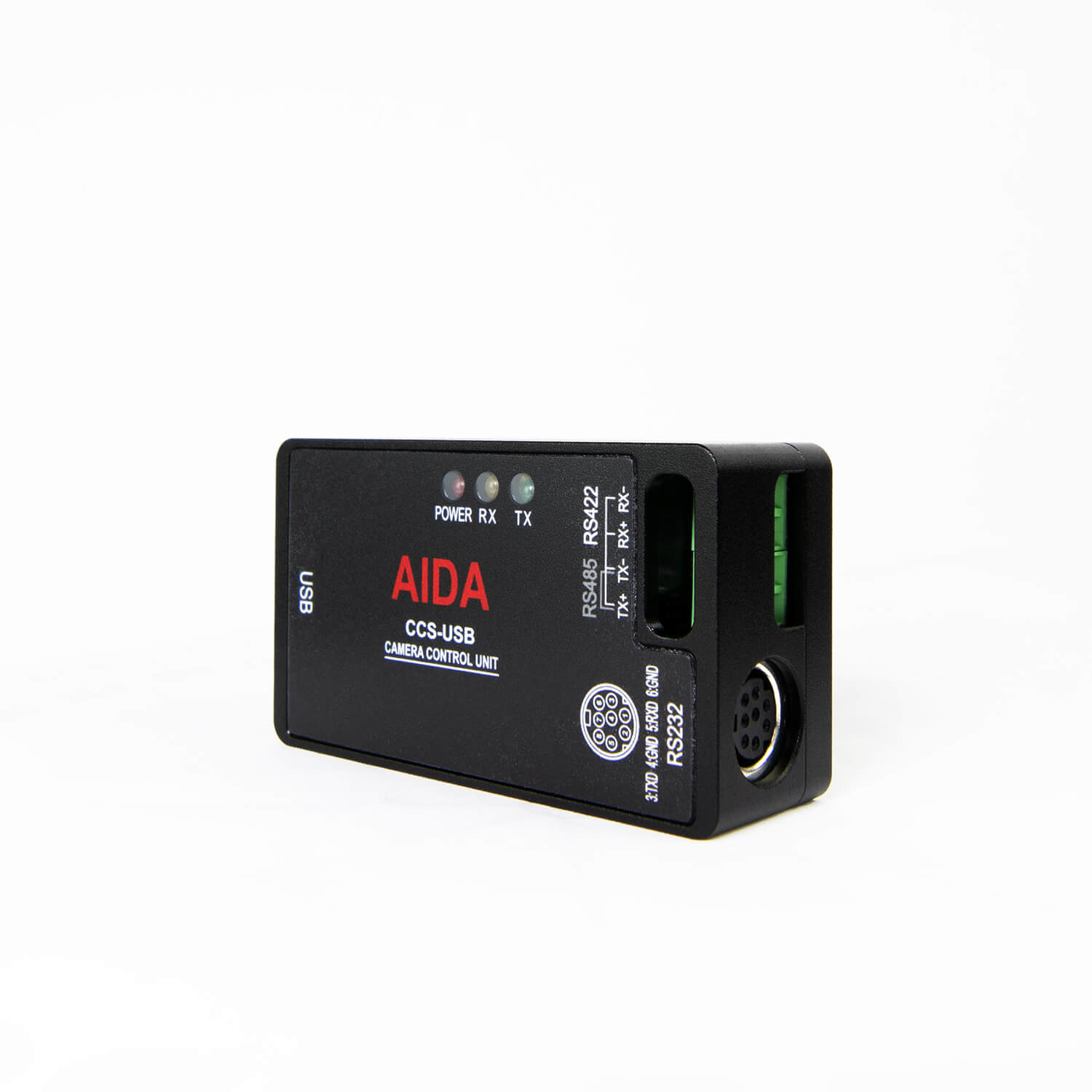

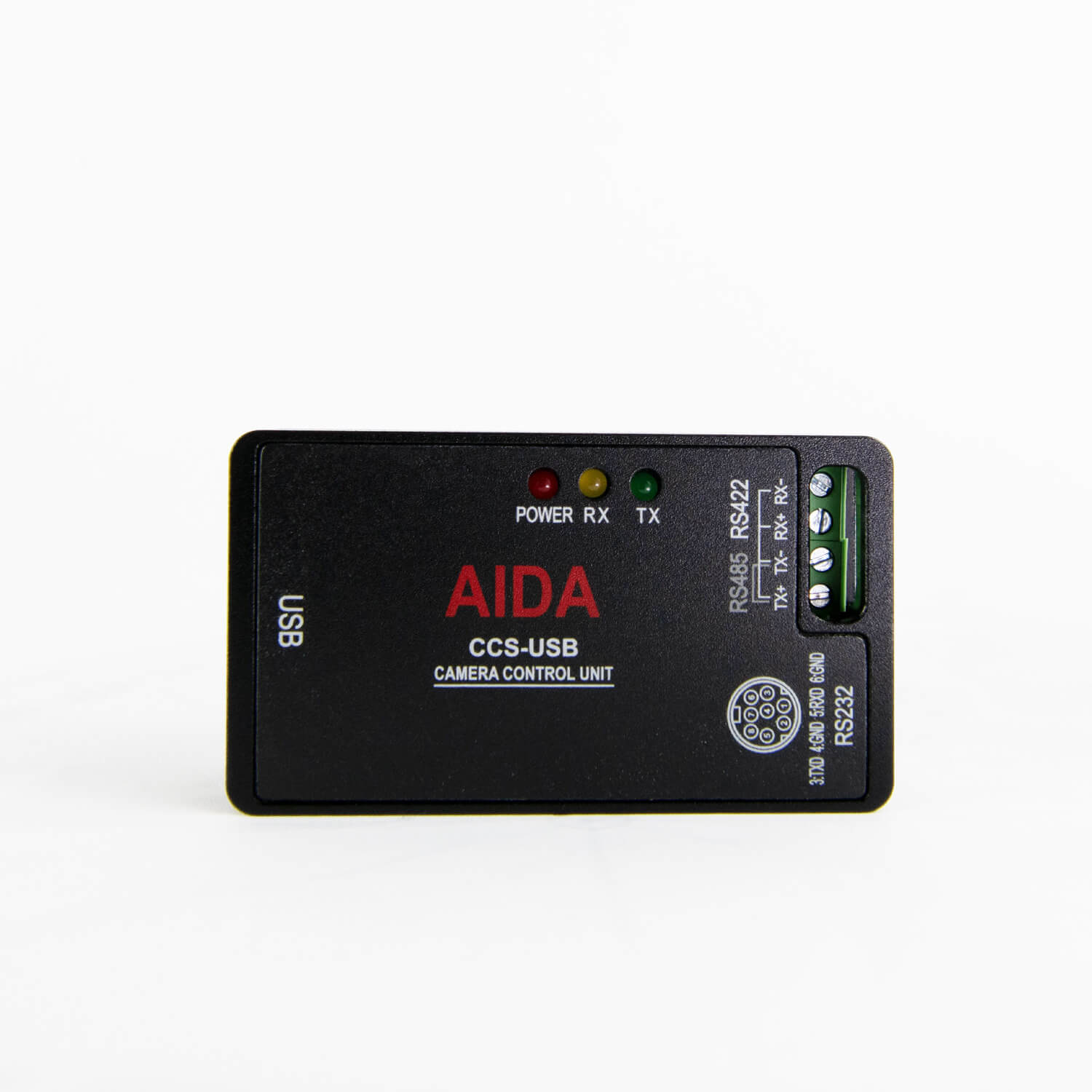

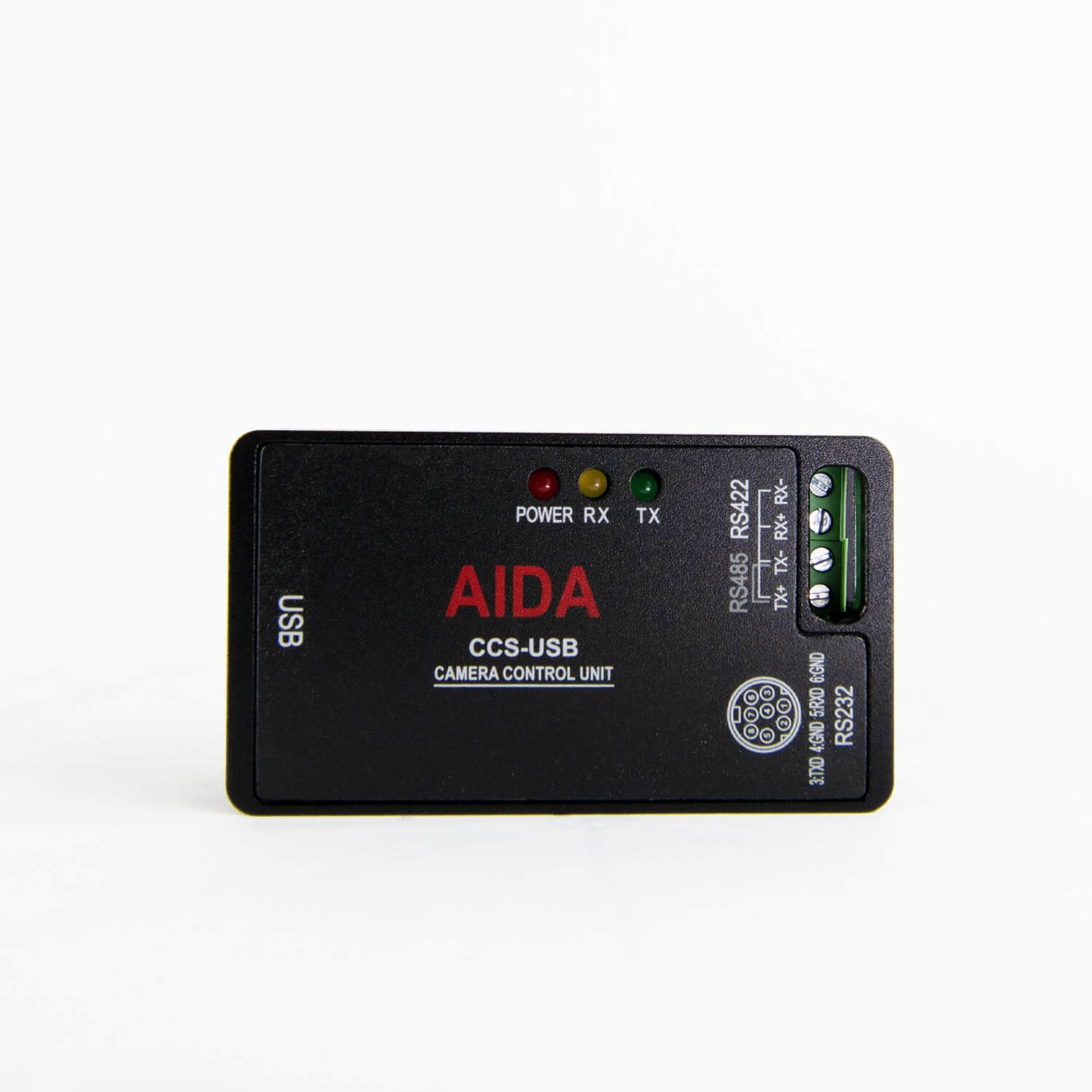

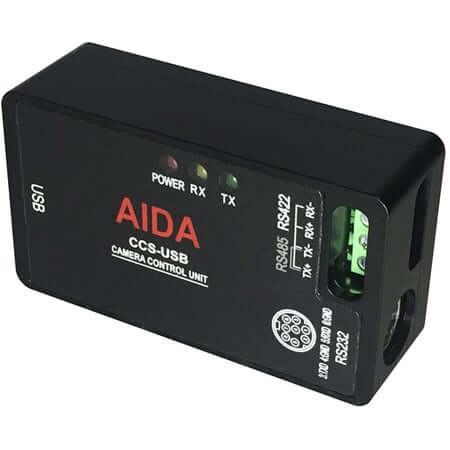

The AIDA Imaging VISCA Camera Control Unit (CCS-USB) is a compact and powerful solution designed for seamless control of up to 7 serial VISCA cameras and up to 255 PELCO protocol cameras. This unit connects effortlessly to your PC via USB and comes with user-friendly software for intuitive operation. Perfect for professional video production, broadcasting, and live events, the CCS-USB enhances your camera control experience with advanced features and compatibility with both Windows and Mac OSX operating systems.

Features

• Multi-Camera Control: Manage up to 7 primary VISCA cameras and 255 third-party PELCO cameras.
• Easy Setup: Automatic COM port configuration upon USB connection to your computer.
• Cross-Platform Compatibility: Works with Windows and Mac OSX operating systems.
• User-Friendly Interface: Graphic user interface simplifies camera control.
• Compact Design: Small, rugged unit designed for mobility and versatility.

Specifications

• Camera Interface: RS-232C, RS-485/RS-422 (Terminal Block Connector)
• Protocols Supported: VISCA for up to 7 cameras, PELCO for up to 255 cameras
• User Interface: Graphic User Interface
• PC Interface: USB
• Compatibility: All VISCA and PELCO Protocol Cameras
• Dimensions: 62mm x 35mm x 19mm (2.44" x 1.37" x 0.74")
• Weight: 50g (0.11lbs)
• Power: USB Powered
• Operating Temperature: 32°F to 104°F
