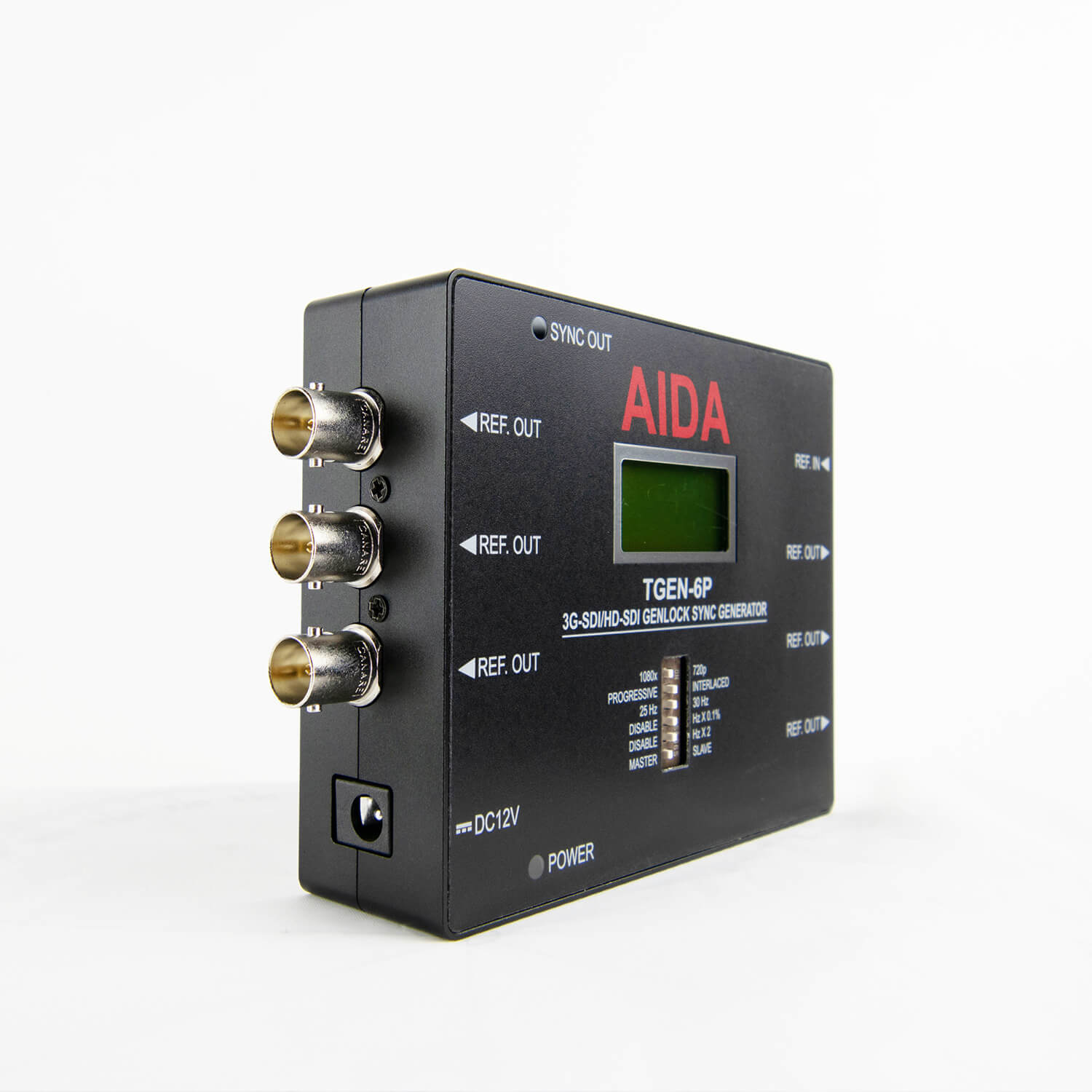

AIDA Imaging TGEN-6P 3G-SDI/HD-SDI Tri-Level Genlock Sync Generator

The AIDA Imaging TGEN-6P is a compact and versatile tri-level sync generator designed to meet all your genlocking needs. With the ability to synchronize up to 6 1080p genlock cameras, it ensures precise timing and reliability for broadcast studio workflows. The generator supports multiple HD formats and features a built-in LCD screen for easy operation.

Features

• Multi-Format Support: Generates sync for 15 different HD formats, including 720p and 1080p up to 60Hz.
• Precision Timing: Provides both vertical and horizontal sync generation for accurate pulse timing.
• Cascading Capability: Can operate in Slave mode to distribute external reference sync signals.
• User-Friendly Interface: Equipped with a built-in LCD screen and dip switches for easy settings adjustment.
• Compact Design: Lightweight and rugged design for easy transport and installation.

Specifications

• Reference Output: Tri-Level HD
• Supported Formats: 1080p 60/59.94/50/30/29.97/25Hz, 1080i 60/59.94/50Hz, 720p 60/59.94/50/30/25Hz
• Accuracy: 2ppm
• Reference Input: Tri-Level HD & Bi-Level SD
• Standards: SMPTE 274M, SMPTE 296M
• Control: Dip-switches & Text LCD
• Operating Temperature: 32°F – 104°F
• Dimensions: 129mm x 86mm x 29mm
• Weight: 278g
• Power Supply: 12VDC (+9 – +15VDC)
