AIDA Imaging NDI|HX FHD PTZ Camera - 20X Zoom, HDMI/

The AIDA Imaging PTZ-NDI-X20 is a high-performance broadcast and conference camera designed for dynamic live production. Featuring a powerful 20X optical zoom, this camera captures stunning Full HD video up to 1080p at frame rates of 60fps. With versatile connectivity options including NDI|HX, HDMI, SDI, and USB3, the PTZ-NDI-X20 is perfect for huddle rooms, houses of worship, and professional broadcasting applications. Its advanced control capabilities allow for seamless operation with a single operator, making it an ideal choice for any setup.

Features

• 20X Optical Zoom: Capture detailed images from distances up to 120ft.

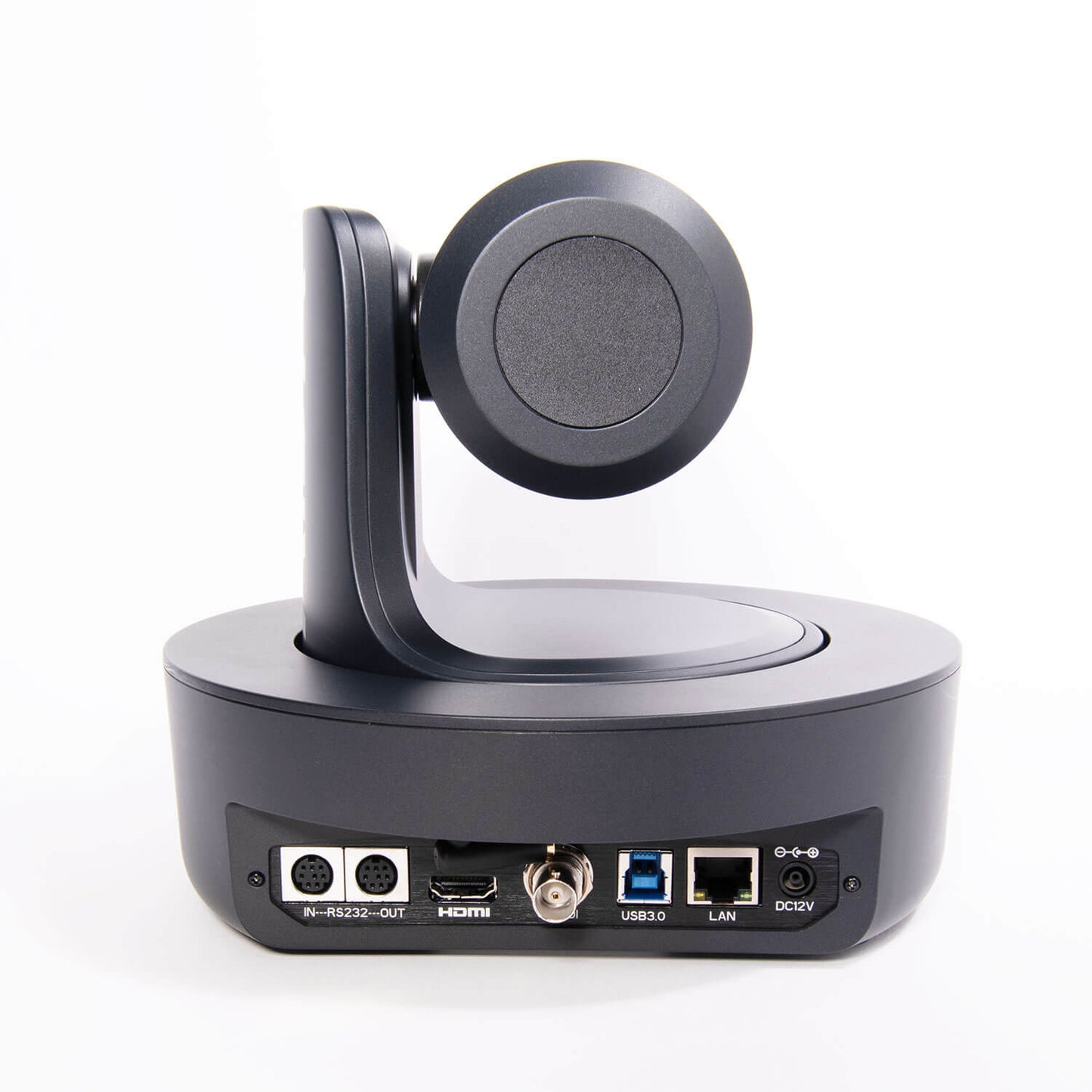

• Multiple Output Options: Simultaneous SDI, HDMI, USB, and IP outputs for versatile connectivity.
• NDI|HX Support: Streamline your workflow with NDI capabilities for IP-based streaming.
• Remote Control: Control pan, tilt, and zoom functions via RS-232 and VISCA over IP.
• High-Quality Imaging: 1/2.5" Progressive CMOS sensor with 1920x1080 effective pixels.

Specifications

• Image Sensor: 1/2.5" Progressive CMOS
• Effective Pixels: Horizontal: 1920, Vertical: 1080
• Resolution: 1080p at 60fps
• Output Formats: HD-SDI, 3G-SDI, HDMI, RTSP, RTMP, NDI|HX, USB 3.0 & 2.0
• Color Space: 4:2:2 (YCbCr) 10bit
• Minimum Illumination: 0.1 Lux
• Pan/Tilt Range: Pan: 340°, Tilt: +90 to -30°
• Speed: Pan: 0° to +120°/s, Tilt: 0° to +80°/s
• Presets: 128 positions
• Power Supply: 12VDC (9-15VDC) or PoE+ (IEEE802.3at Standard Required)
• Dimensions: 155mm x 160mm x 170mm
• Weight: 1.35kg
