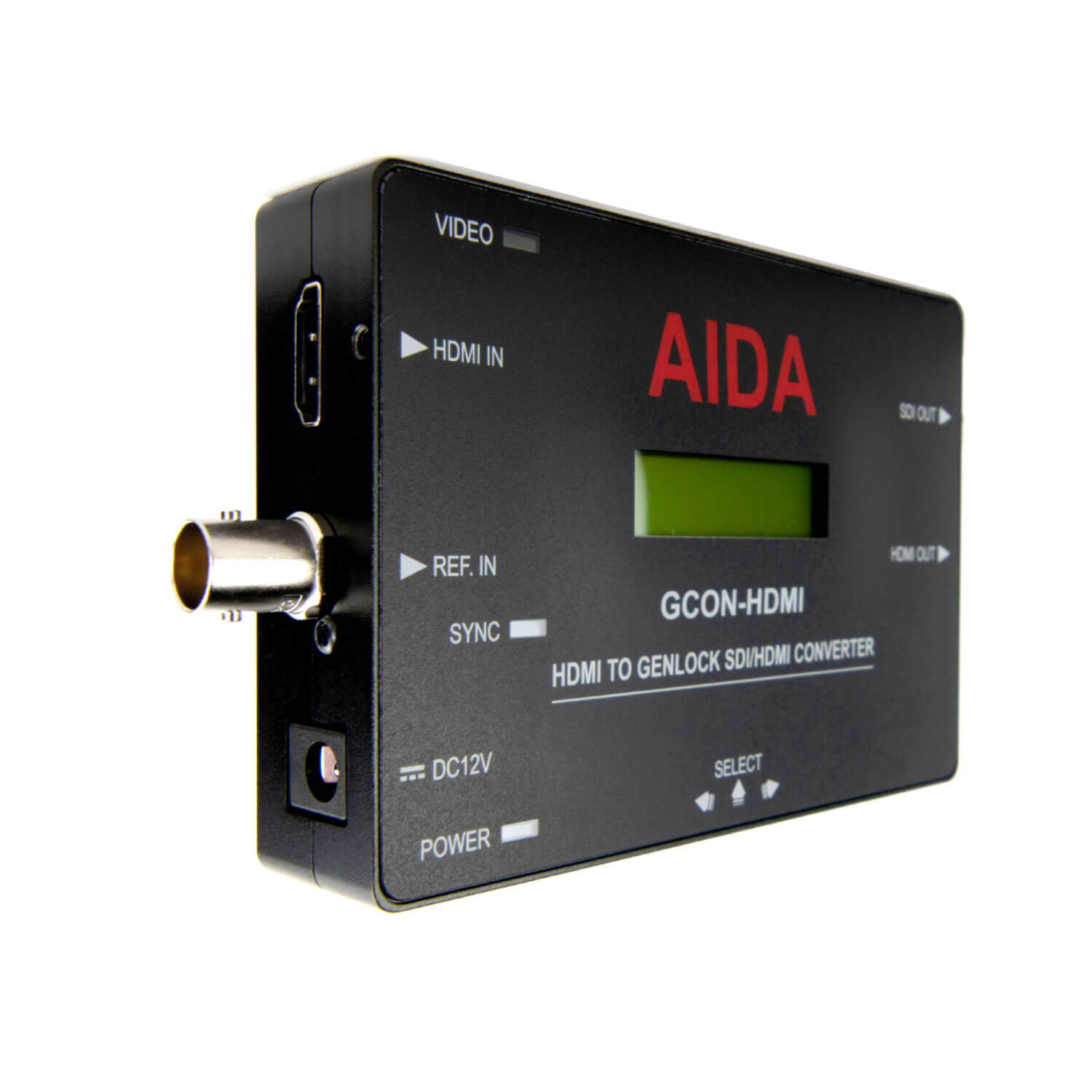

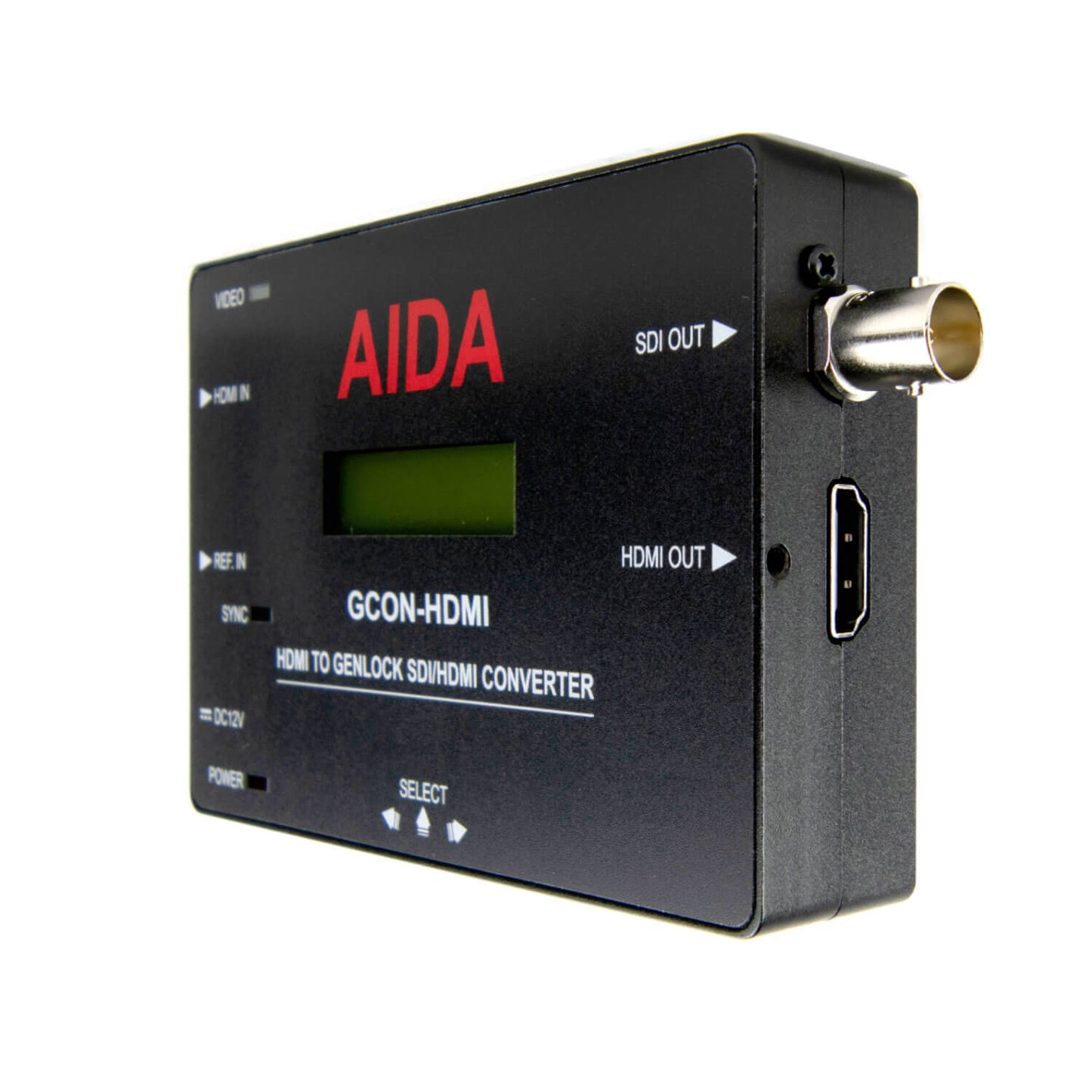

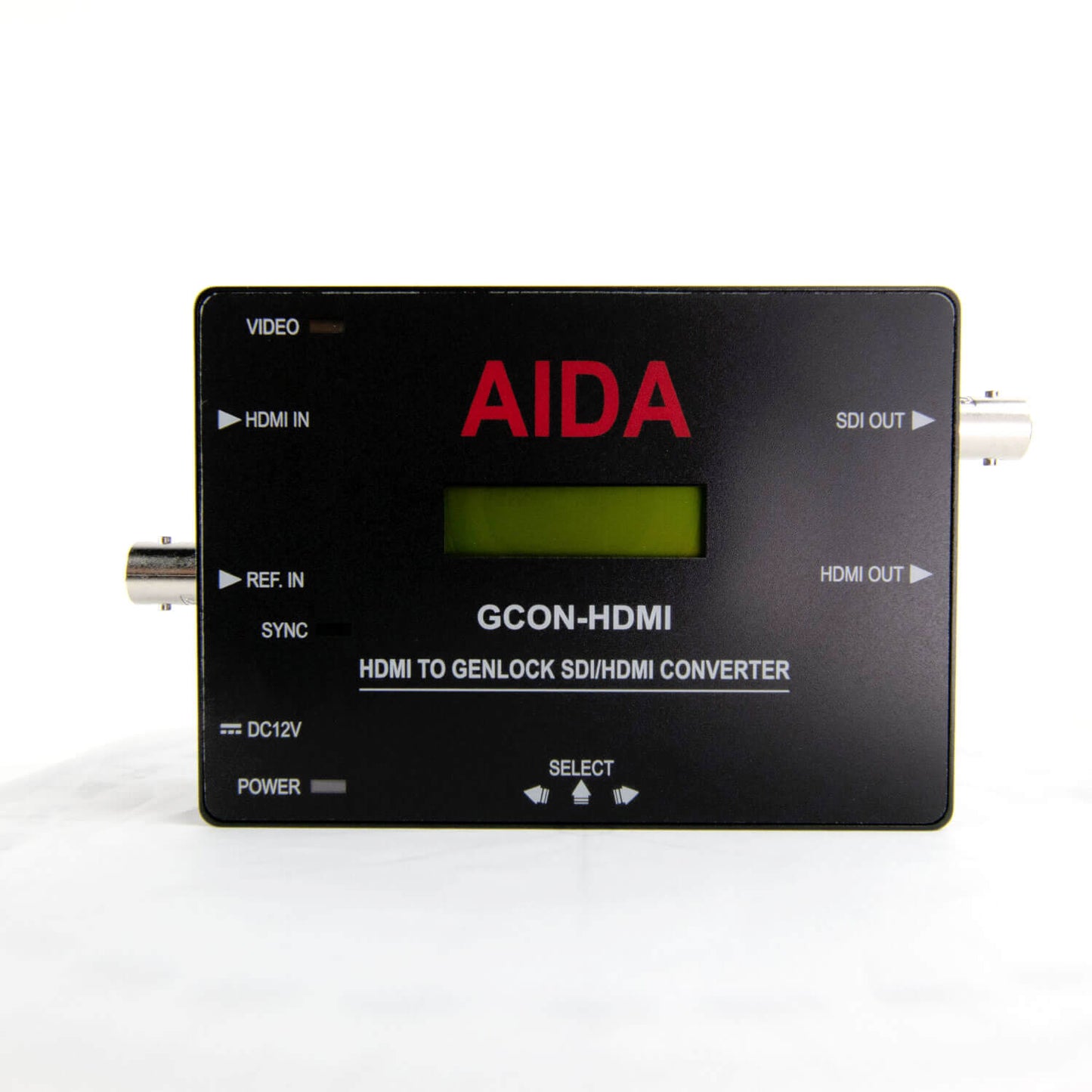

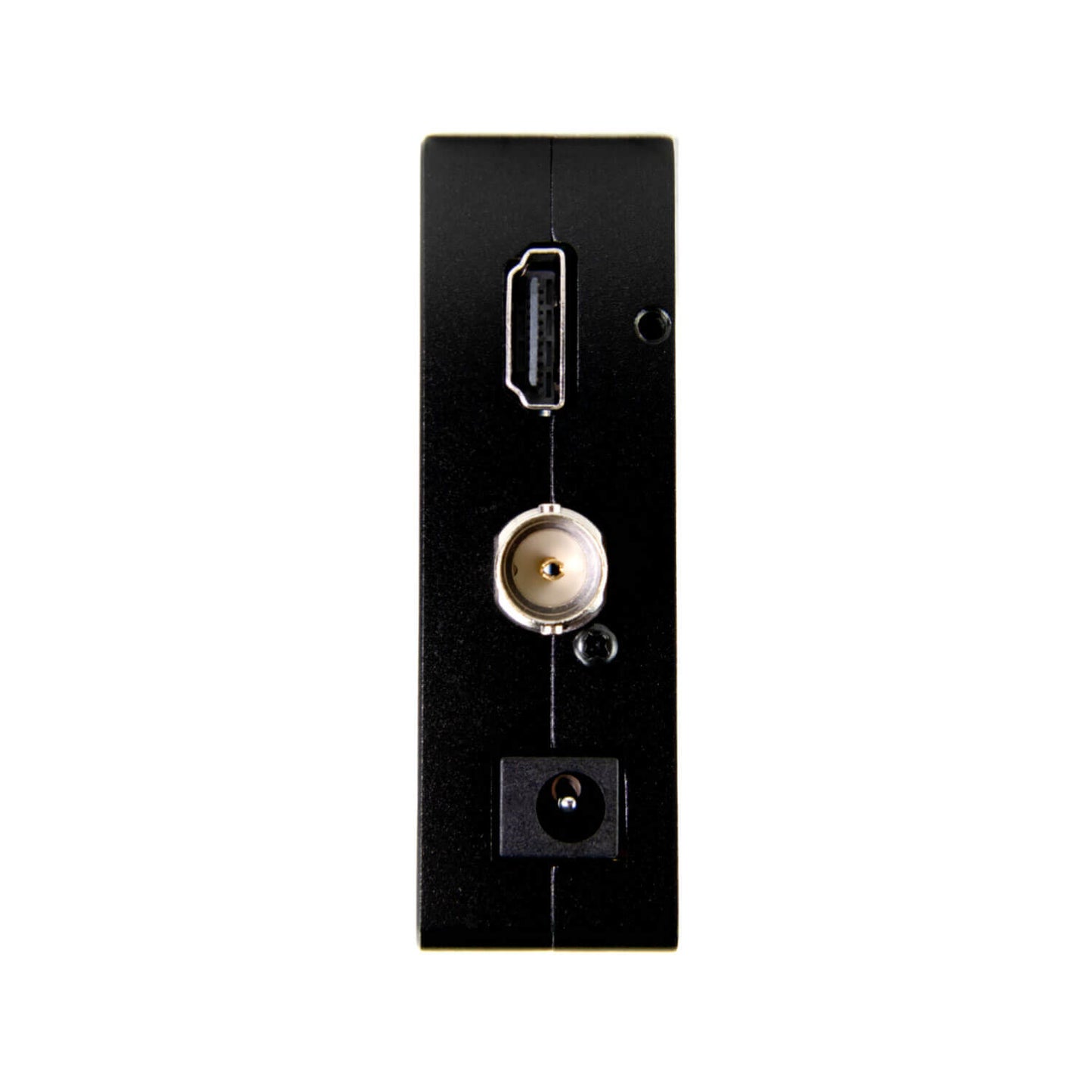

AIDA Imaging HDMI Genlock Converter with Active Loop Out - GCON-HDMI

The AIDA Imaging HDMI Genlock Converter (GCON-HDMI) is designed to convert HDMI sources to Genlock SDI/3G-SDI and HDMI outputs with zero latency, preserving the integrity of the original video feed. It supports full HD resolutions up to 1080p at 60 frames per second and features Tri-Level Sync for seamless integration with other system components. The rugged and portable design makes it an ideal companion for professional video production environments, ensuring reliable performance in demanding settings.

Features

• Zero Latency: Converts HDMI to Genlock SDI/3G-SDI and HDMI without delay.
• Full HD Support: Handles resolutions up to 1080p at 60 fps.
• Tri-Level Sync: Synchronizes with other system components for smooth transitions.
• Rugged Design: Built for durability and portability in professional environments.
• Built-in Pattern Generator: Offers thirteen patterns for testing and calibration.
• Adjustable Sync Phases: Allows for precise V-sync and H-sync adjustments.

Specifications

• Input: HDMI
• Output: Genlocked HD-SDI/3G-SDI and Genlocked HDMI 1.3a
• Resolution Support: 1080p (60/59.94/50/30/29.97/25), 1080i (60/59.94/50), 720p (60/59.94/30/25)
• Color Space: 4:2:2 (YCbCr) 10bit
• Audio Control: Supports 16, 20, 24 bits audio
• Weight: 173g (0.38lbs)
• Power: 6W at 12VDC (+9V to +15V)
• Dimensions: 130mm x 75mm x 24mm (5.11" x 2.95" x 0.94")
• Operating Temperature: 32°F to 104°F
