AIDA FHD PTZ Camera 20X Zoom with IP/SDI/HDMI/

The AIDA Imaging PTZ-X20-IP is a versatile Full HD PTZ camera designed for broadcast and conference applications. It features a powerful 20X optical zoom, allowing you to capture high-quality video from distances of up to 120 feet. This camera supports simultaneous video outputs via HDMI, SDI, USB 3.0, and IP, making it ideal for live streaming and professional video production. With advanced noise reduction technology and multiple control protocols, the PTZ-X20-IP ensures exceptional image quality and ease of use for any production environment.

Features

• 20X Optical Zoom: Powerful zoom capability for capturing distant subjects clearly.
• Simultaneous Outputs: Supports HDMI, SDI, USB 3.0, and IP streaming at up to 1080p60 resolution.
• Multiple Control Protocols: Compatible with RS-232, VISCA, TCP/IP, RTSP, and RTMP for flexible integration.
• 128 Presets: Easily store and recall camera positions for efficient operation during live events.
• Motion-Compensated Noise Reduction: Reduces video noise without sacrificing clarity, even in motion.
• Wide Field of View: 61° field of view for capturing more of the scene.

Specifications

• Image Sensor: 1/2.5" Progressive CMOS
• Effective Pixels: 1920 x 1080
• Resolution: 1080p & 1080i (1920 x 1080)

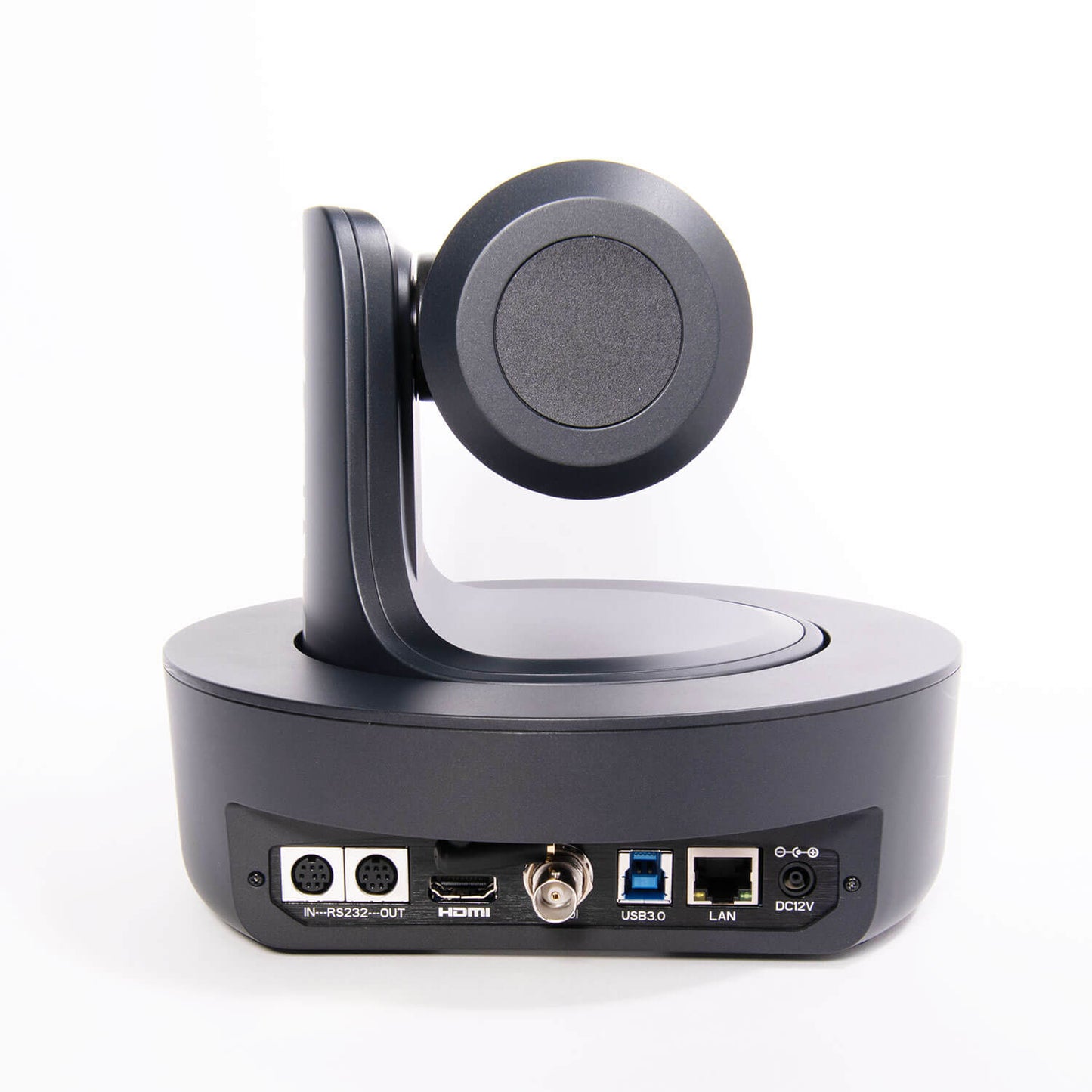

• Output Formats: HD-SDI, 3G-SDI, HDMI, RJ45, USB 3.0 & 2.0
• Color Space: 4:2:2 (YCbCr) 10bit
• Minimum Illumination: 0.1 Lux
• Lens: 20X HD Optical Zoom, F1.5 ~ F3.0
• Pan/Tilt Range: Pan: 340°, Tilt: +90 to -30°
• Pan/Tilt Speed: Pan: 0° to +120°/s, Tilt: 0° to +80°/s
• Dimensions: 155mm x 160mm x 170mm
• Weight: 1.35 kg
• Power: 12VDC (+9 – +15VDC), PoE+ (IEEE802.3at Standard Required)
