AIDA CS-8.0F 8mm 5MP Lens for HD Cameras - High

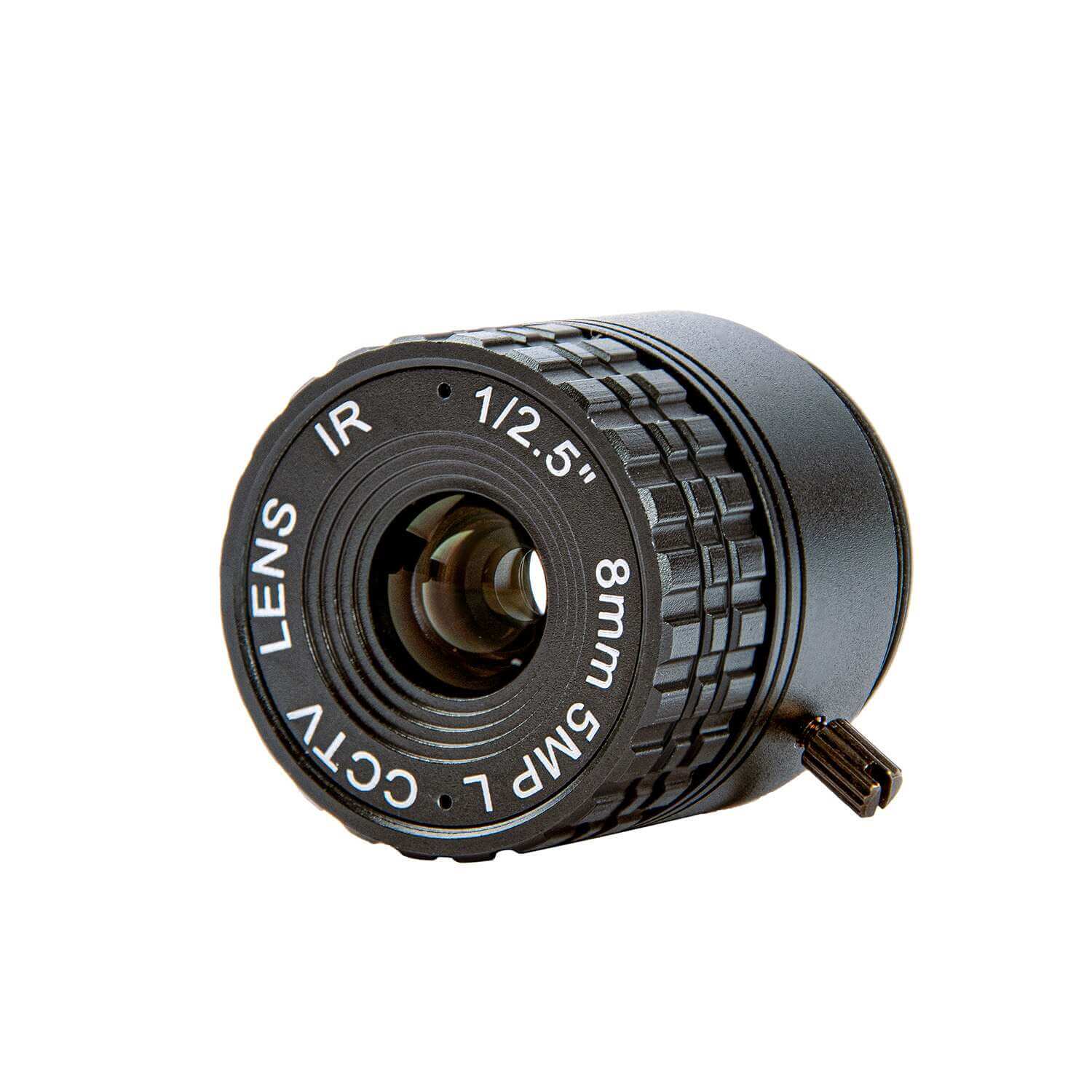

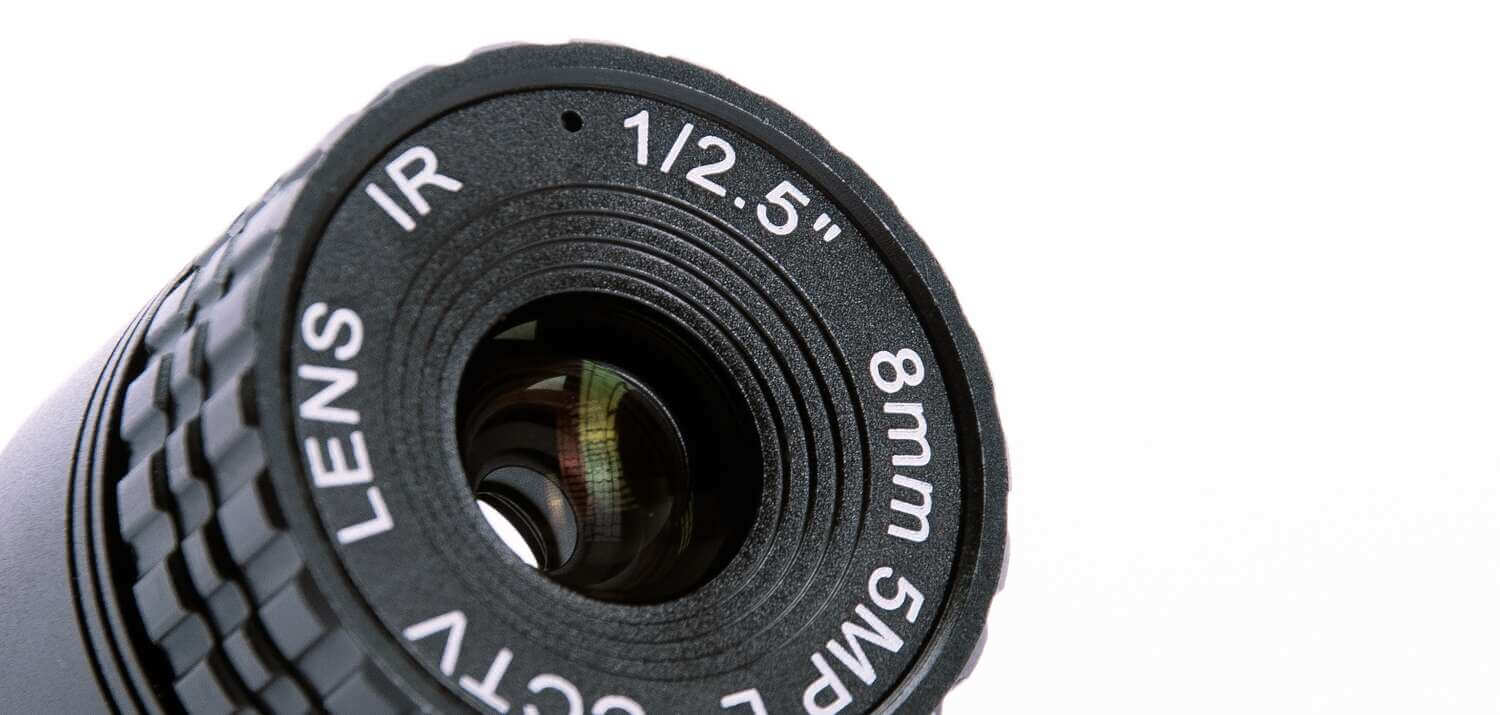

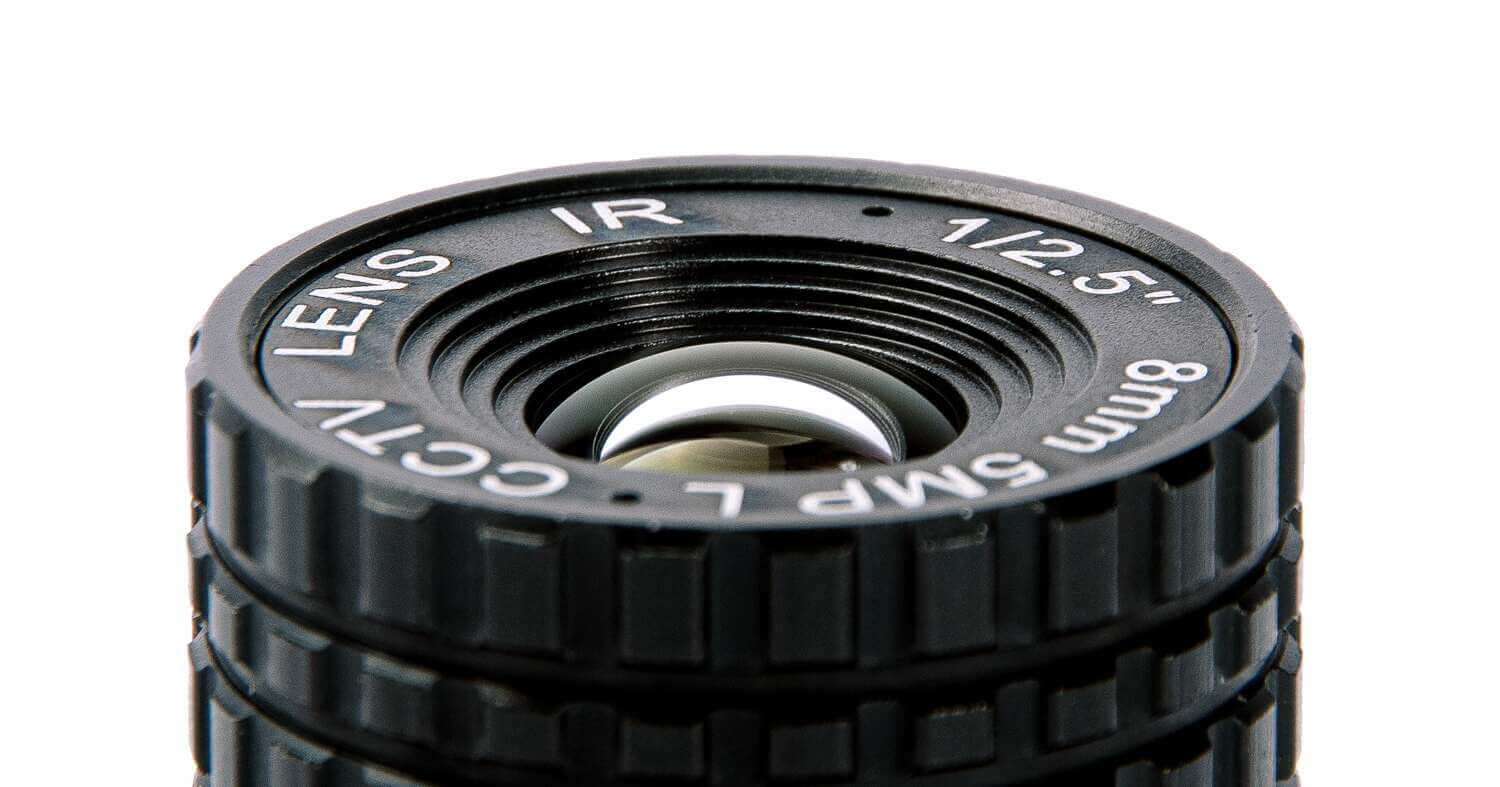

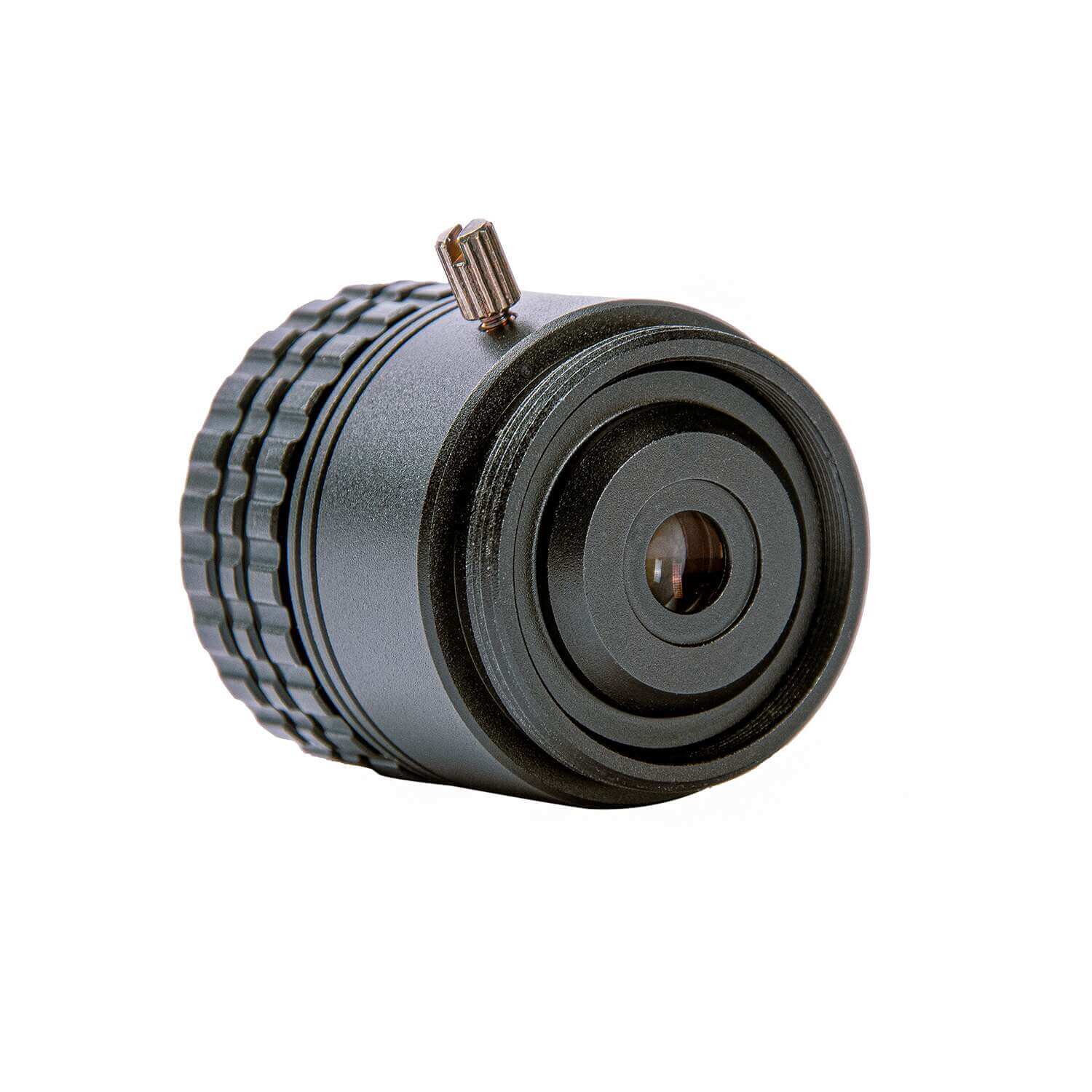

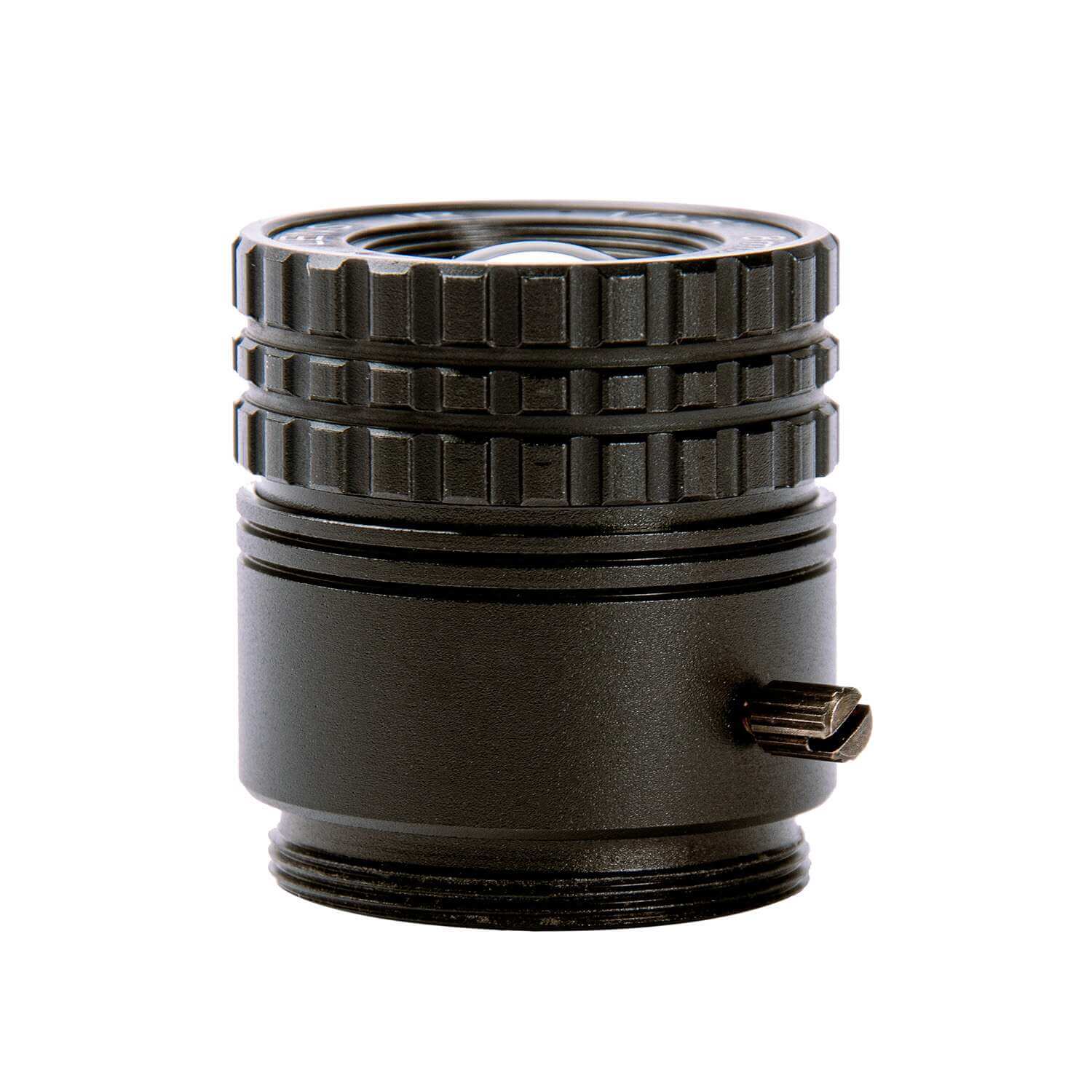

The AIDA Imaging CS-8.0F is an 8mm fixed focal length lens designed for high-definition cameras, optimized for 1/2.5” progressive CMOS sensors. With a 5-megapixel resolution, this lens delivers exceptional image quality, featuring a horizontal field of view of approximately 45° on 1/2.5” sensors and 36.6° on 1/3” sensors. Built with a fixed iris range and manual focus operation, it is perfect for professional video applications.

Features

• High Resolution: Supports up to 5 Mega Pixels for sharp and clear images.
• Optimized for AIDA HD Cameras: Specifically tuned for AIDA's high-definition camera systems.
• CS Mount Compatibility: Easily mounts on any CS type camera.
• Fixed Iris: Ensures consistent lighting across varying conditions.
• Manual Focus: Allows for precise control over focus settings.

Specifications

• Focal Length: 8mm
• Aperture: F2.0
• Horizontal Field of View: 45° (1/2.5” Sensor), 36.6° (1/3” Sensor)
• Back Focal Length: 7mm
• Image Format: Max 1/2.5” Sensor
• TV Distortion: -18.5% with 1/2.5” Sensor
• Mount Type: CS
• Operating Temperature: -20°C to 60°C
• Dimensions: 31.2mm x 28mm (1.81” x 1.39”)
• Weight: 2g (0.0004 lbs)
