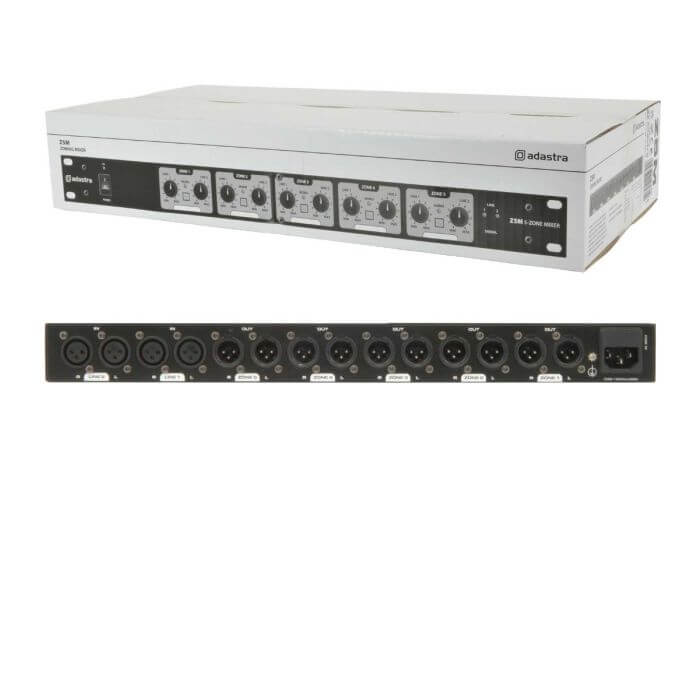

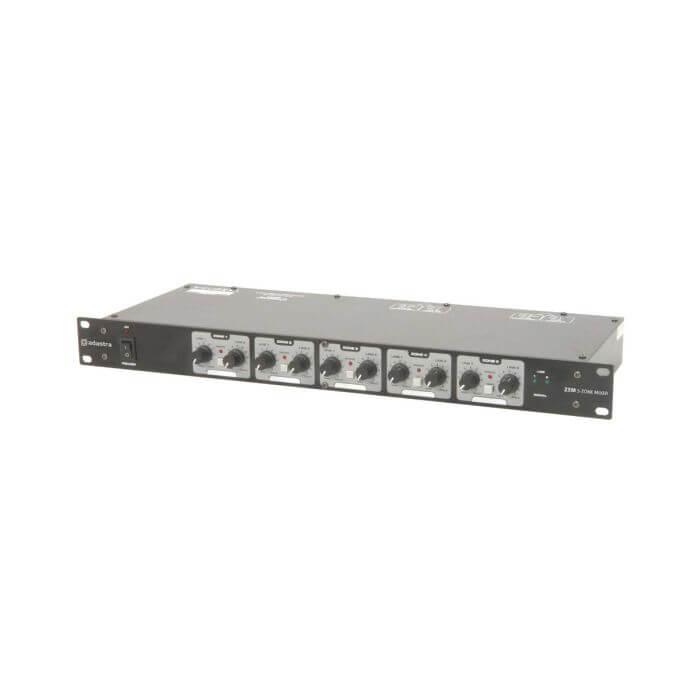

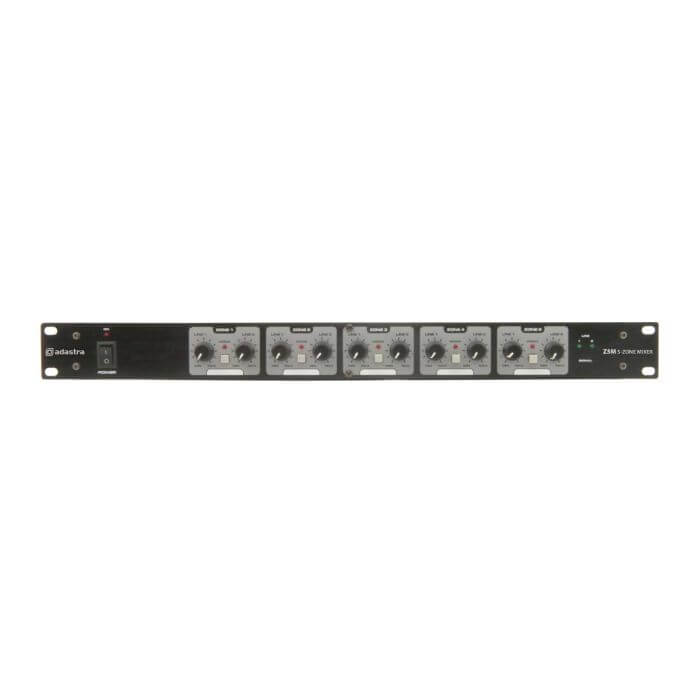

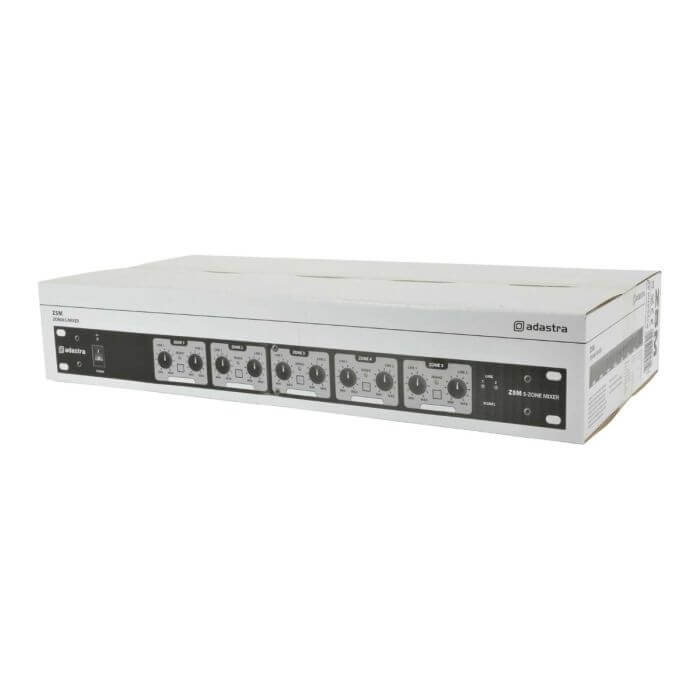

Adastra Z5M Mixer: 2 Inputs, 5 Zones, Balanced XLR Connections

The Adastra Z5M Zoning Mixer is a professional-grade audio mixer designed to manage audio distribution across multiple zones. With two balanced XLR inputs and the capability to control five separate zones, this mixer allows for individual volume adjustment and mono selection for each zone, making it ideal for installations requiring tailored audio solutions. Its robust construction and high-quality audio performance ensure a reliable and effective mixing experience.

Features

• Two Inputs: Supports two line-level audio inputs for flexible audio source integration.
• Five Zones: Distributes audio to up to five separate zones, allowing for customized sound environments.
• Balanced XLR Connections: Ensures high-quality audio transmission with reduced noise interference.
• Mono Selectable: Each zone features a mono switch for versatile audio output options.
• Individual Volume Control: Allows for precise volume adjustments for each input and zone.

Specifications

• Power Supply: 115/230Vac 50/60Hz (IEC)
• Inputs: Line 1 L+R, Line 2 L+R, balanced XLRF
• Outputs: Zone 1 to 5 L+R, balanced XLRM
• Input Impedance: 40k Ohms
• Output Impedance: 220 Ohms
• Frequency Response: 20Hz - 25kHz, +0/-1dB
• Signal to Noise Ratio: >100dB
• Total Harmonic Distortion (THD): <0.005%
• Dimensions: 483 x 175 x 44 mm
• Weight: 2.2 kg
