Adastra Z44R 1U Mixer: 4 Inputs, 4 Outputs, DSP Re

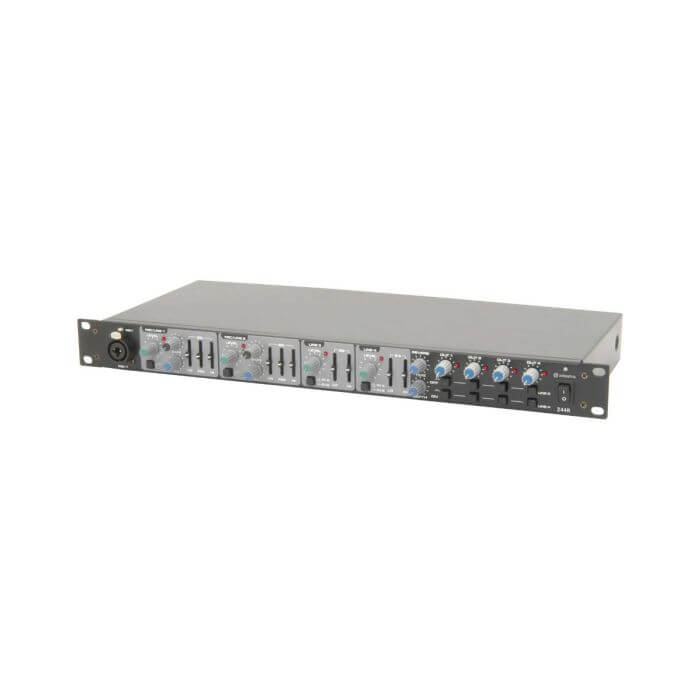

The Adastra Z44R Multi-Purpose 1U Mixer is a versatile live and zoning rack mixer designed for professional audio applications. With 2 mic/line inputs and 2 stereo line inputs feeding 4 stereo outputs, this mixer is perfect for vocal mixing in DJ setups or multi-room zoning in venues. Featuring foot-switchable internal DSP reverb and extensive EQ controls, the Z44R ensures high-quality sound tailored to your needs.

Features

• 2 Mic/Line Inputs: Front combo and rear jack for versatile connectivity.
• 2 Stereo Line Inputs: Input A (L+R) via 6.3mm jack and Input B (L+R) via RCA.
• 4 Stereo Zone Outputs: Each with level controls for precise sound management.
• Foot-switchable DSP Reverb: Add depth to your audio with onboard or external effects.
• Lo-Cut Rumble Filter: Reduces unwanted low-frequency noise on mic channels.
• Switchable 48V Phantom Power: Ideal for condenser microphones.
• 3-Band EQ for Mic Channels: Customize sound with control over low, mid, and high frequencies.
• 2-Band EQ for Stereo Channels: Tailor the audio output for stereo inputs.

Specifications

• Power Supply: 230Vac, 50Hz (IEC)
• Mic/Line Channel Inputs: Ch 1 front combo and rear jack, Ch 2 combo (rear)
• Mic/Line Channel Controls: Level, Lo-cut, Gain, FX and Lo/Mid/Hi EQ faders
• Line 3 + 4 Stereo Inputs: Input A (L+R) 6.3mm jack / Input B (L+R) RCA
• Line 3 + 4 Stereo Controls: Level, In A/B and Lo/Hi EQ faders
• Output Connections: Outputs 1-3 (L+R) RCA, Output 4 (L+R) 6.3mm jack
• Output Controls: Level, Line 3 on/off, Line 4 on/off
• FX Connections: Footswitch, Send (defeats onboard reverb), L+R Return
• FX Controls: Reverb time, Depth (onboard or external level)
• Indicators (LED): Power, 48V, Mic/line signal+peak, Line peak, Output peak
• Fire Alarm Contacts: Modular terminal, make-to-mute all except Mic 1
• Dimensions: 483 x 44 x 220mm
• Weight: 2.75kg
