Adastra V24-VR 100V Volume Control Relay - 24W Audio Attenuator

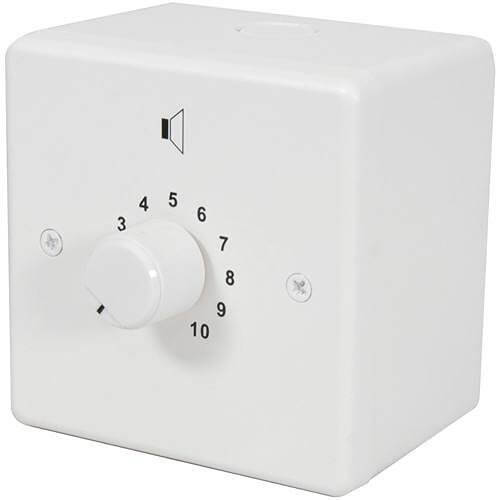

The Adastra V24-VR is a premium 100V line volume control with a relay fitted for added functionality. Designed for easy installation, this volume attenuator allows for precise audio control with 10 adjustable steps, making it ideal for various audio applications. The stylish ABS faceplate and included surface mount back box ensure a clean and professional look, while the built-in 24V relay enables bypass to full volume when triggered by a fire alarm panel, enhancing safety in commercial environments.

Features

• 10-Step Attenuation: Offers 8 x 3dB and 2 x 6dB steps for precise volume control.
• Relay Fitted: 24V relay allows for remote attenuator bypass, enhancing safety.

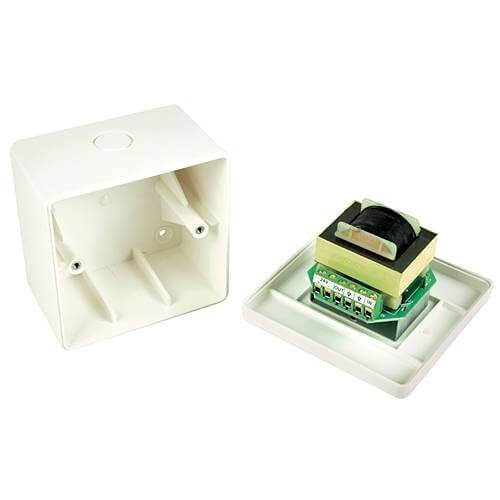

• High-Quality Build: Supplied with a plastic surface mount back box and a stylish ABS faceplate.
• Wide Frequency Response: Ensures excellent audio quality with a frequency range of 35Hz to 20kHz.

Specifications

• Power: 24W
• Weight: 230g
• Attenuation: 3dB per graduation
• Frequency Response: 35Hz - 20kHz
• Relay: 24V, 50mA
• Dimensions (assembled): 85 x 85 x 75mm (including back box)
• Mounting Depth: 47mm
