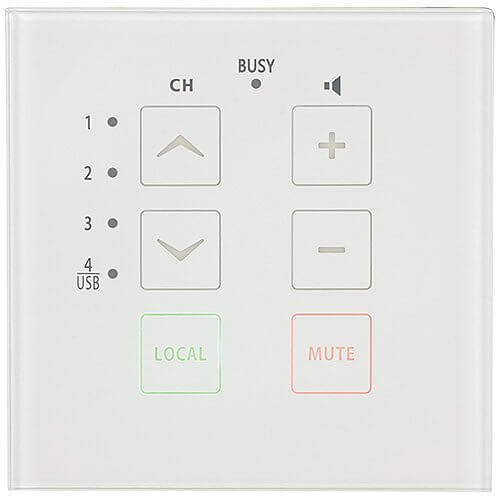

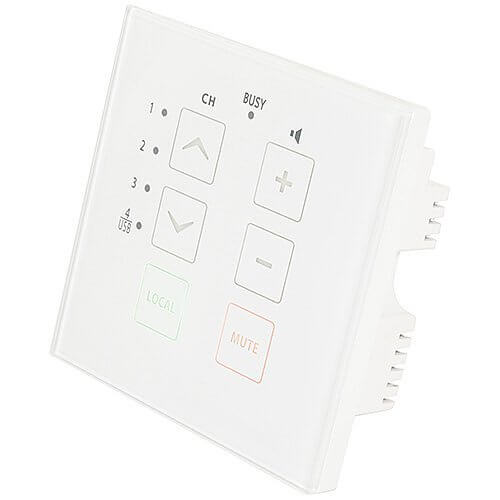

The Adastra TR86 Touch Wall Remote is designed for seamless control of the RZ45 Audio Matrix system. This sleek, hygienic acrylic touch-operated wall plate allows users to easily select between three stereo audio sources or the inbuilt media player, while also managing output levels for up to five independent zones. With its illuminated surface and color-coded indicators, the TR86 ensures intuitive operation in any environment.

Features

• Hygienic Acrylic Surface: Designed for easy cleaning and maintenance.
• Illuminated Touch Controls: Color-coded indicators for easy source selection.

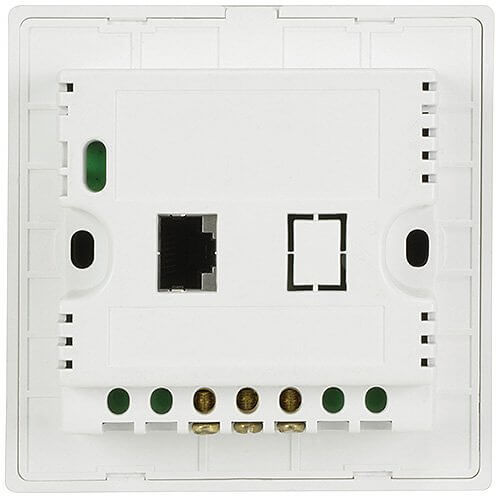

• Easy Installation: Connects via standard RJ45 network cable.
• Multiple Panel Support: Control up to 5 remote panels with a single RZ45 unit.
• Extended Range: Operates up to 100m with direct power or up to 1km with 24V external power.

Specifications

• Model Number: TR86
• Power Supply: 24V DC (from RZ45 or externally)
• Connection Type: 8P8C (RJ45)
• Control Options: Sources 1-4 (USB), Local, Mute, Level +/-
• Dimensions: 86 x 86 x 38 mm
• Mounting Depth: 38 mm
• Weight: 128 g
