Adastra RZ45 Bluetooth Audio Matrix - 5-Zone Control & USB Play

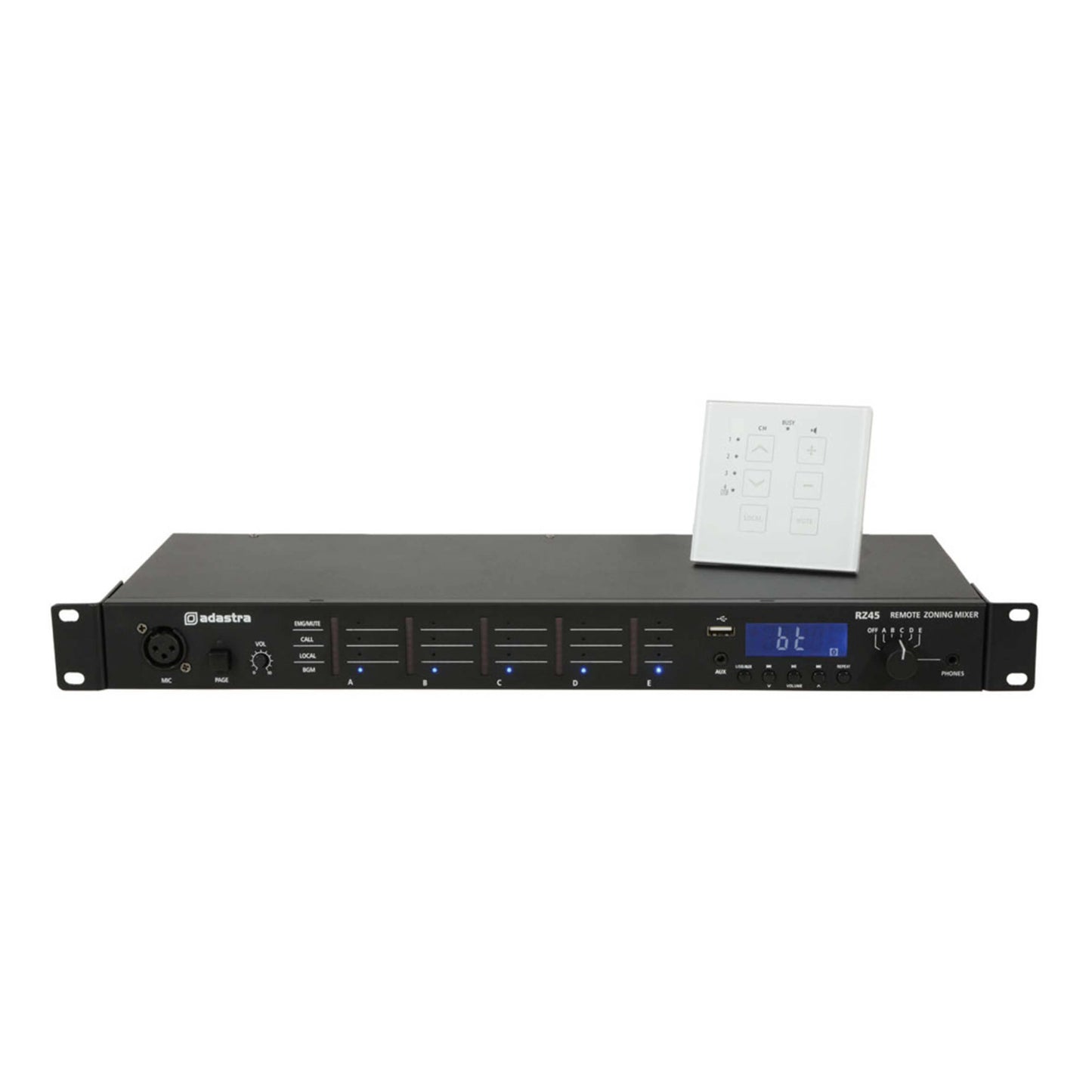

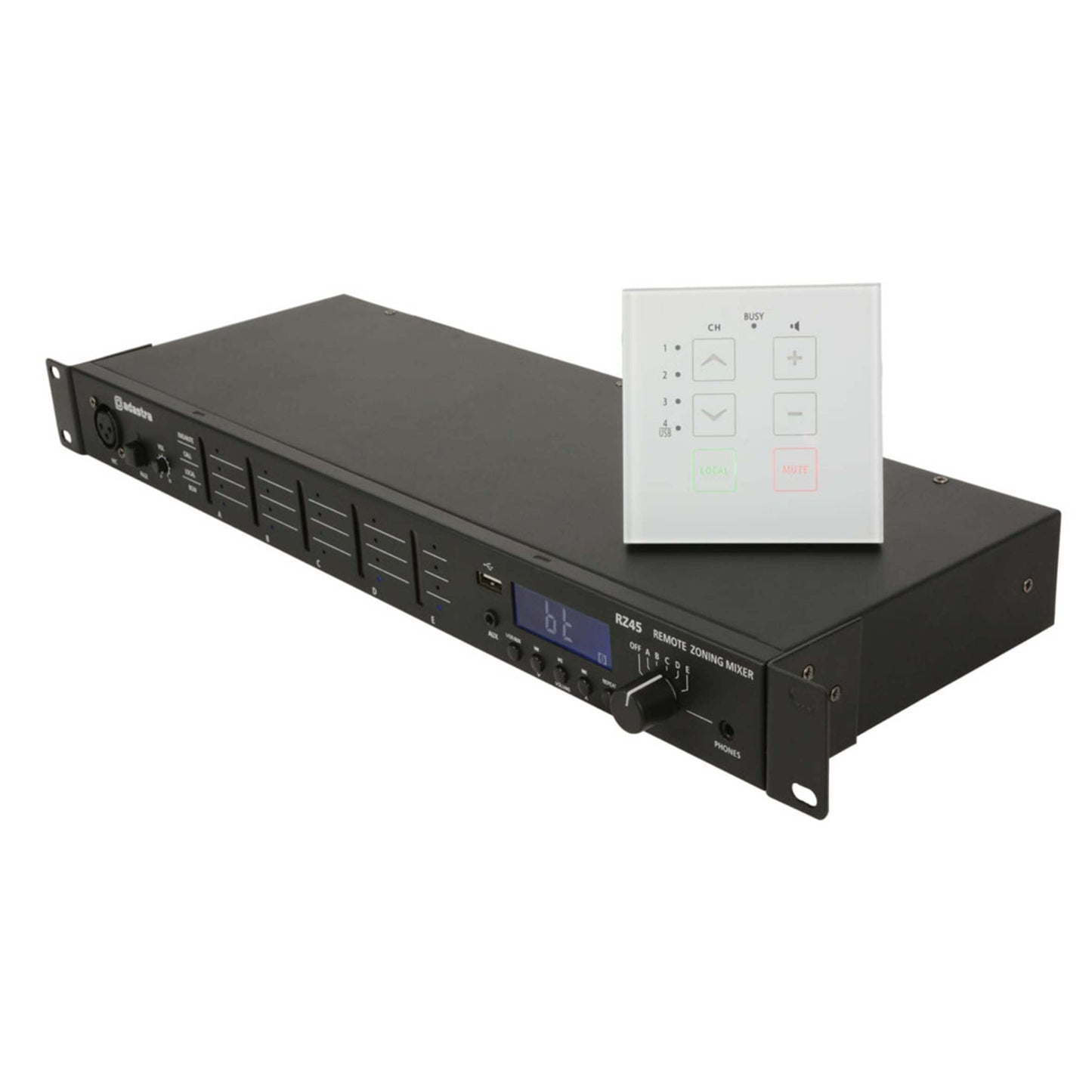

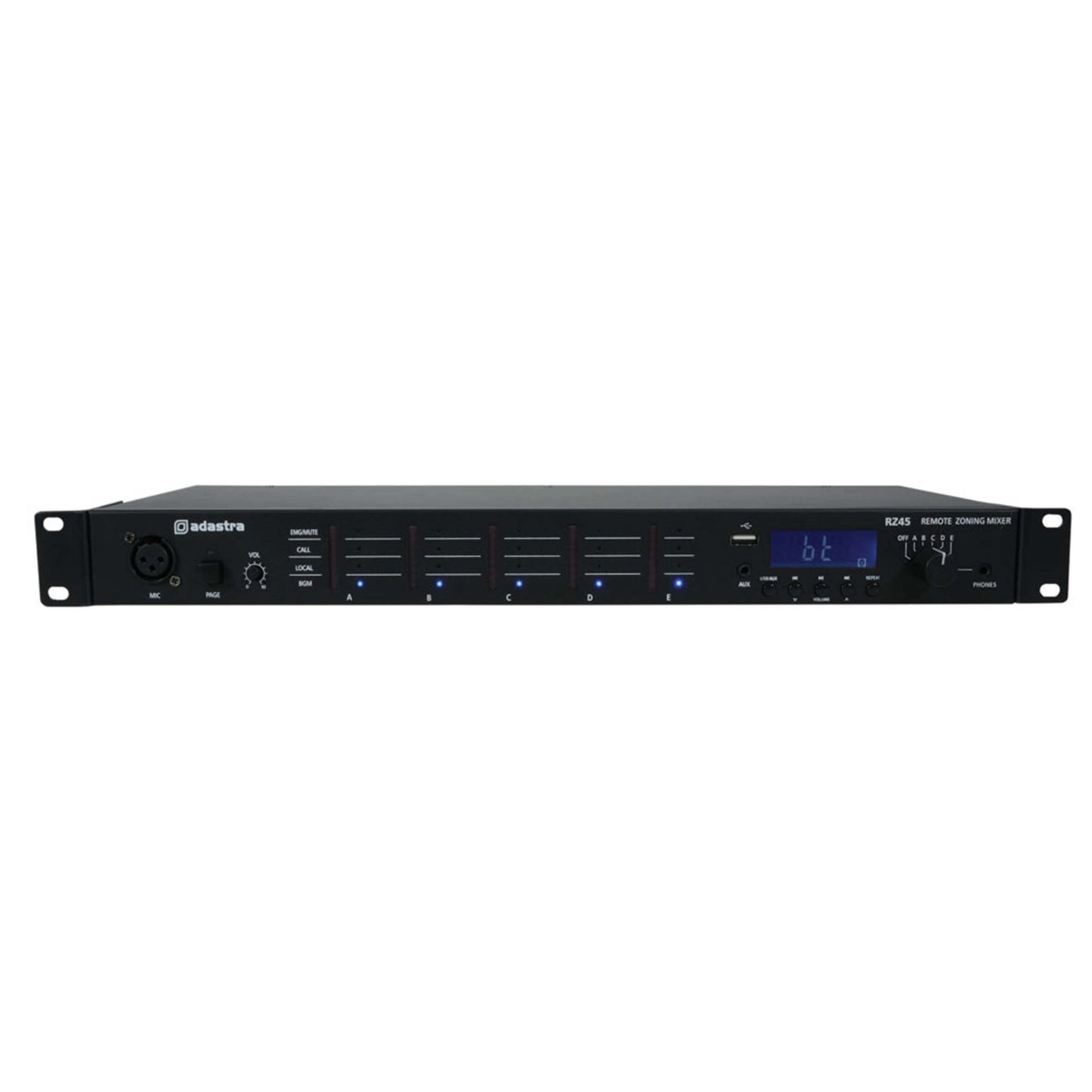

The Adastra RZ45 Remote Zone Audio Matrix is a versatile 1U rack-mountable audio matrix system designed for multi-zone audio control. It features up to 5 remotely operated zones, allowing for seamless audio distribution across various spaces. With Bluetooth connectivity and USB playback capabilities, this system enables easy access to your favorite audio sources. The included TR86 touch-operated remote wall plate offers intuitive control over volume and audio selection, while additional wall plates can be added to expand functionality. Ideal for commercial settings, the RZ45 ensures clear audio management and emergency paging capabilities for enhanced communication.

Features

• 5-Zone Control: Manage audio in up to 5 different areas or zones.
• Bluetooth Connectivity: Stream audio wirelessly from your devices.
• USB Audio Player: Play music directly from USB drives.

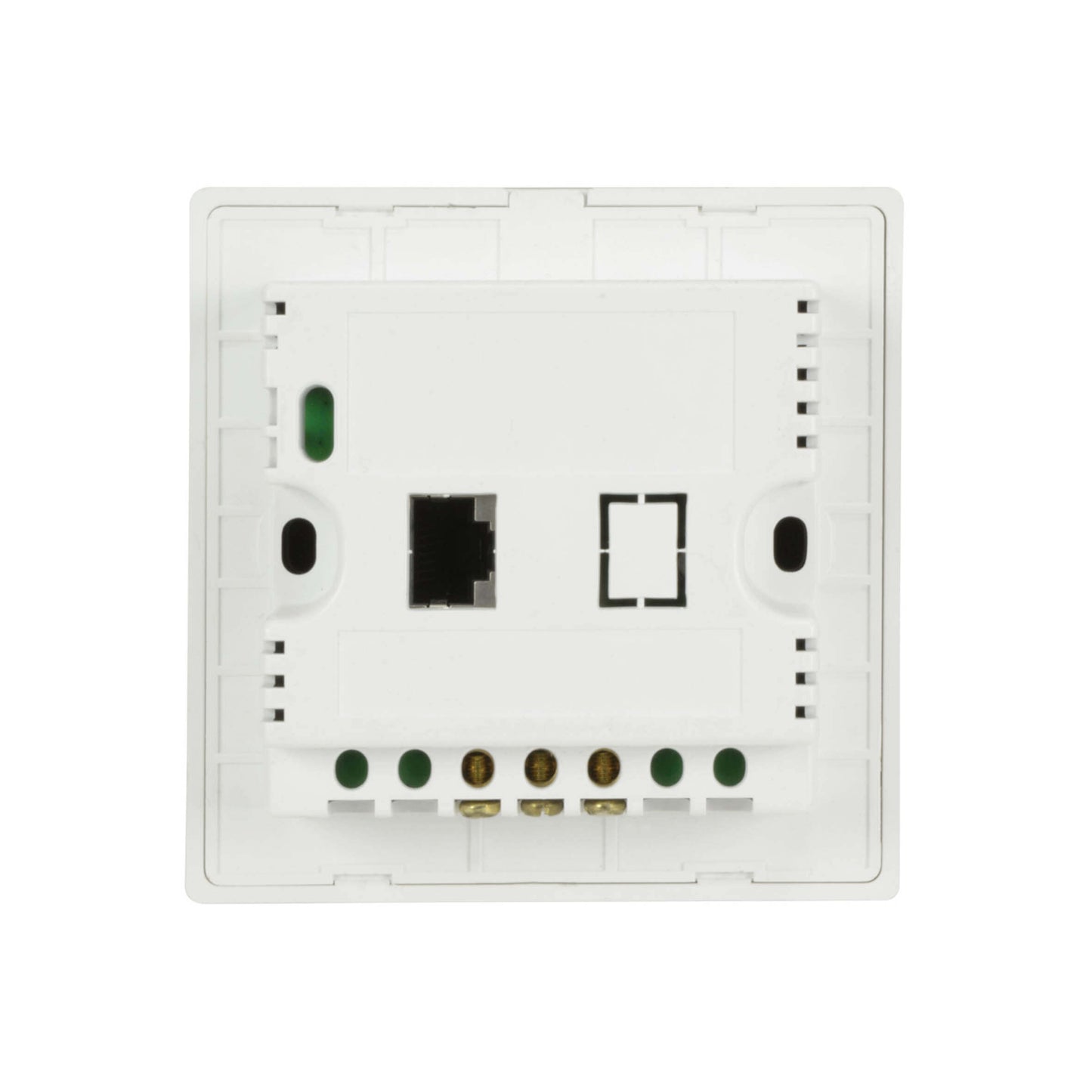

• Touch Operated Remote Wall Plate: Includes one TR86 remote for easy control, expandable up to 5.
• Emergency Paging: Equipped with a microphone input and emergency mute contacts.

Specifications

• Power Supply: 100-240Vac, 50/60Hz (IEC lead included)

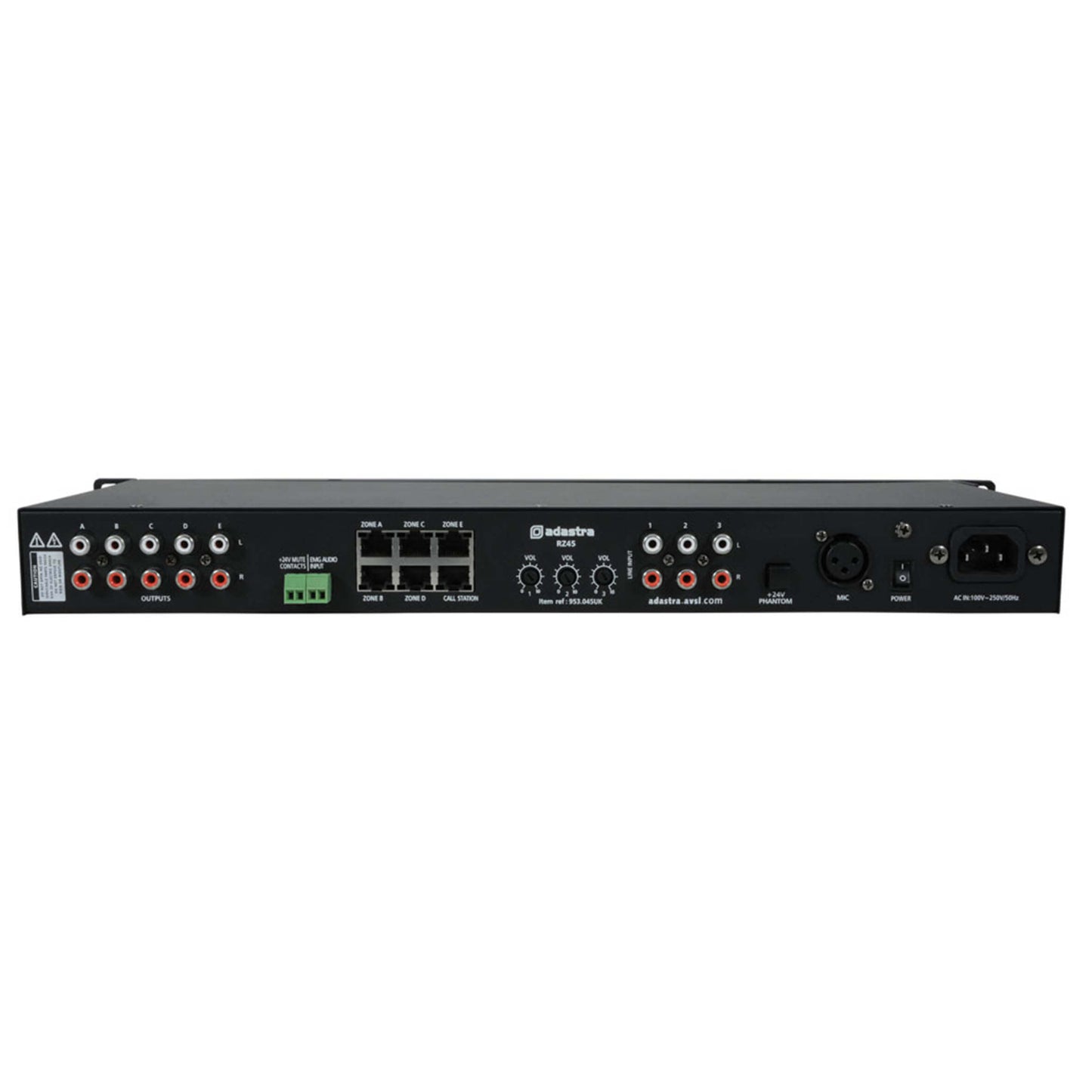

• Inputs: Paging mic (XLR) + 3 x stereo line (RCA)
• Outputs: 5 x stereo zones (RCA)
• Remote Control Connection: 8P8C (RJ45)
• Dimensions: 483 x 177 x 44 mm
• Weight: 1.76 kg
• Bluetooth Version: v2.0
• Frequency Response: ±3dB, 20Hz - 20kHz
• Signal to Noise Ratio: Mic 65dB, Line 73dB
• Total Harmonic Distortion: <0.1% @ 1kHz
