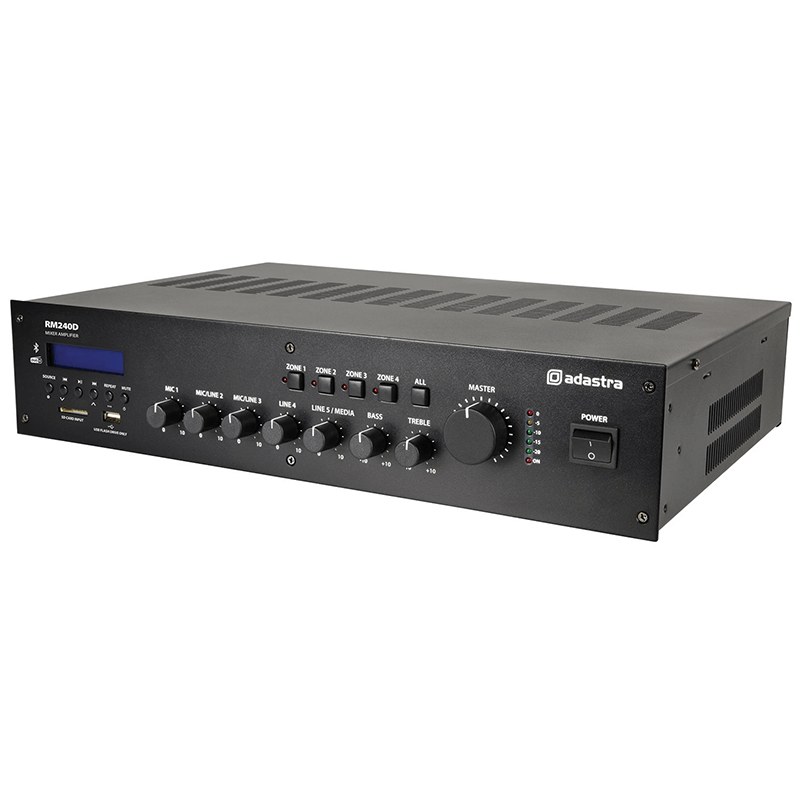

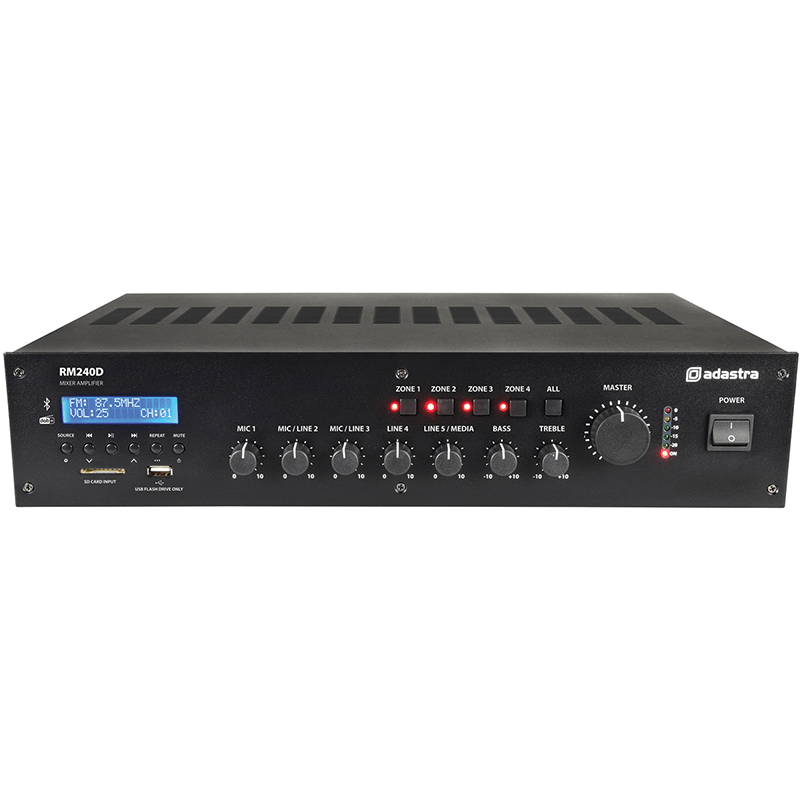

ADASTRA RM240D Mixer-Amplifier: 240W, USB, Bluetooth, FM

The Adastra RM240D is a powerful 5-channel mixer-amplifier designed for commercial sound installations. With a total power output of 240 watts, it efficiently drives 100V line speakers or standard speakers down to a 4 Ohm load. This versatile unit features an integrated DAB+/FM radio tuner, front-mounted SD/USB ports, and Bluetooth connectivity for seamless audio playback. Ideal for various applications, it includes a switchable 'voiceover' feature that automatically lowers background music when a signal is detected via mic input 1. The RM240D is perfect for multi-zone environments, with outputs available for four switchable zones and an additional

Features

• 5-Channel Configuration: Supports multiple audio sources including XLR, mic/line jack, and RCA line inputs.
• DAB+/FM Radio Tuner: Built-in radio tuner for diverse audio entertainment.
• Bluetooth Connectivity: Easily stream music from smartphones or tablets.
• USB/SD Audio Player: Direct playback of MP3/WAV files from USB or SD cards.
• Voiceover Feature: Automatically lowers music volume when a microphone signal is detected.
• 4 Switchable Zones: Control audio distribution across different areas.
• Emergency Control: 24V contacts to mute all except mic input 1 in case of an emergency.
• Rack-Mountable Design: 2U size for easy installation in standard racks.

Specifications

• Power Output: 240W RMS

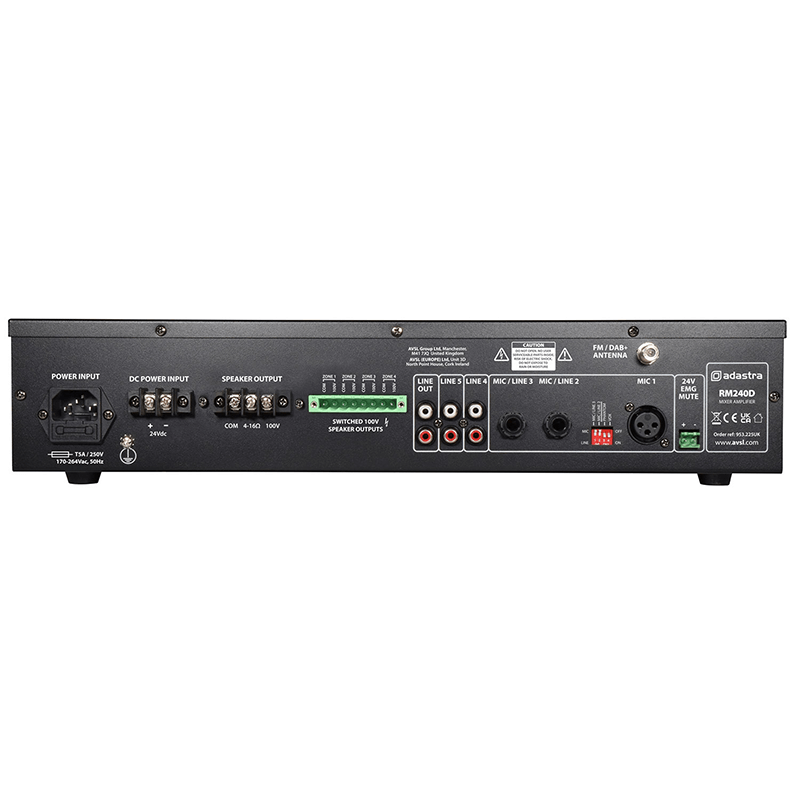

• Speaker Outputs: 4 switched + 1 non-switched (100V / 4-16 Ohms)
• Inputs: 1 x Mic XLR, 2 x Mic/Line Jack, 2 x RCA Line
• Bluetooth Version: 5.0
• Dimensions: 433 x 320 x 88 mm
• Weight: 7.37 kg
• Power Supply: 170-264Vac, 50Hz (IEC)
• DC Power: 24Vdc (screw terminals)
• THD: <1.0%
