Adastra MM3260 1U PA Mixer-Amplifier: USB, Bluetooth, FM,

The Adastra MM3260 is a versatile 1U rack-mountable stereo PA mixer-amplifier designed for high-quality audio mixing and distribution. Featuring a built-in media player, Bluetooth connectivity, and FM radio tuner, this mixer-amp is perfect for local area background music and announcements. It includes multiple input options, making it ideal for various audio applications.

Features

• Rack-Mountable Design: Compact 1U size fits easily into standard racks.

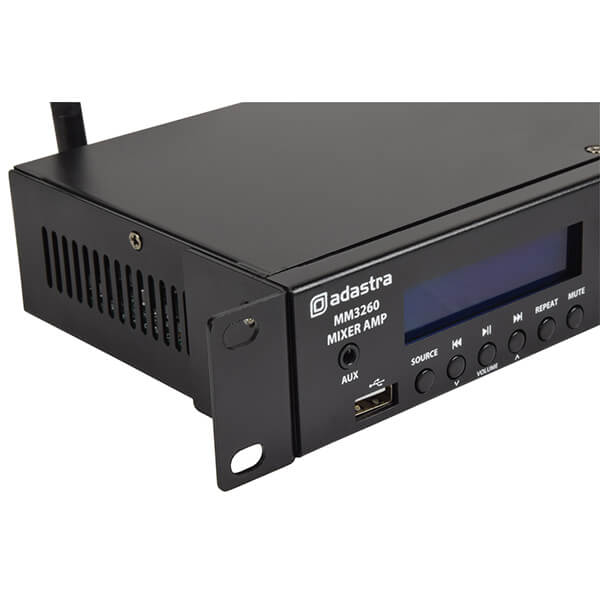

• Built-in Media Player: Supports USB playback, FM radio, and Bluetooth audio streaming.
• Multiple Inputs: Includes 3 XLR microphone/line inputs with switchable +20V phantom power.
• Auxiliary Inputs: Two stereo RCA auxiliary inputs and a 3.5mm jack for additional audio sources.
• Priority Function: Channel 1 features a variable priority function for important announcements.
• Euroblock Speaker Outputs: Main left and right speaker outputs connected via screw terminals for secure connections.
• Emergency Control: 24V contacts mute all except channel 1 in emergency situations.

Specifications

• Power Supply: 100-240Vac, 50/60Hz (IEC)
• Output Power: 2 x 60W RMS into 4 Ohms

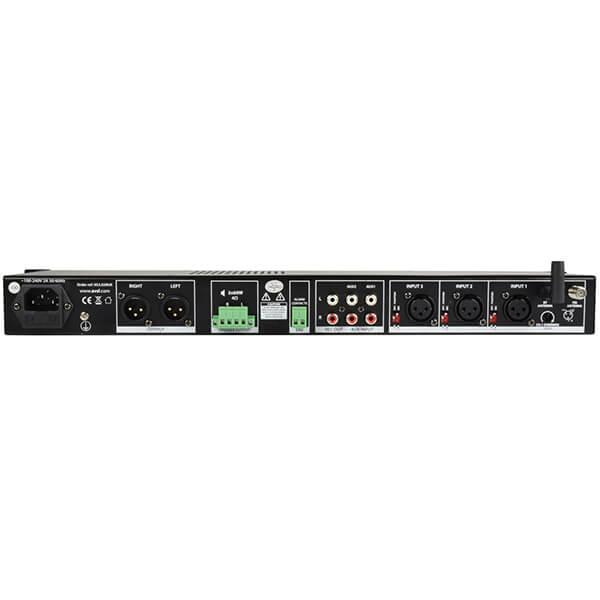

• Inputs: 3 x XLR (mic/line), 2 x L+R RCA (aux), 3.5mm jack (line)
• Audio Sources: Bluetooth receiver, USB & FM player
• Line Output: L+R XLR, Record out (RCA)
• Speaker Outputs: L+R screw terminal (Euroblock)
• Phantom Power: +20V (switchable channels 1-3)
• Frequency Response (Mic): 20Hz - 18kHz
• Frequency Response (Line): 14Hz - 20kHz
• Frequency Response (Aux): 10Hz - 23kHz

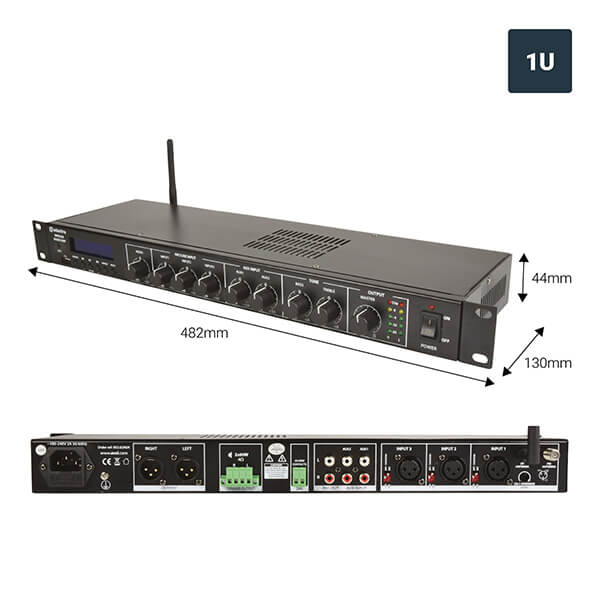

• Dimensions: 482 x 130 x 44 mm
• Weight: 1.96 kg
