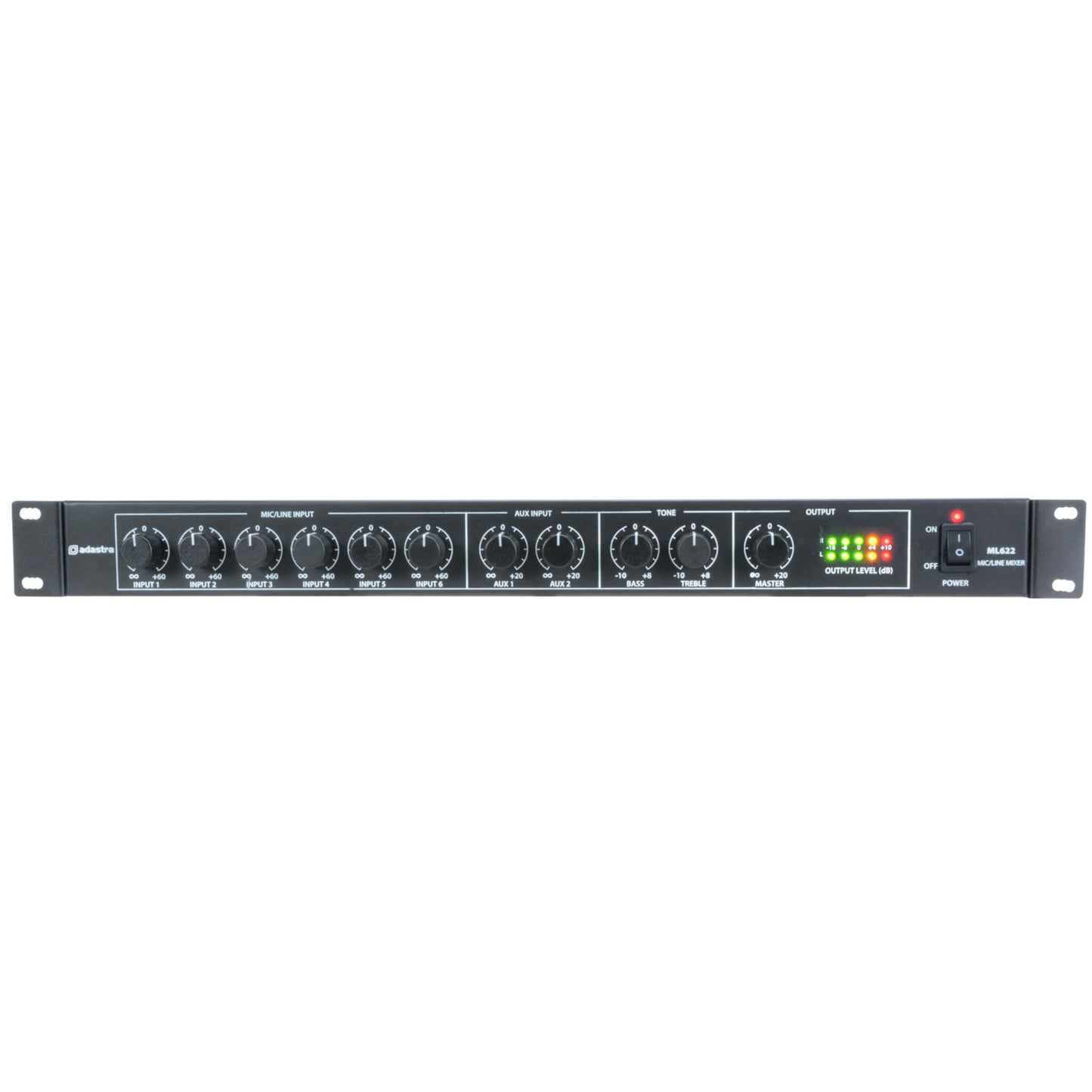

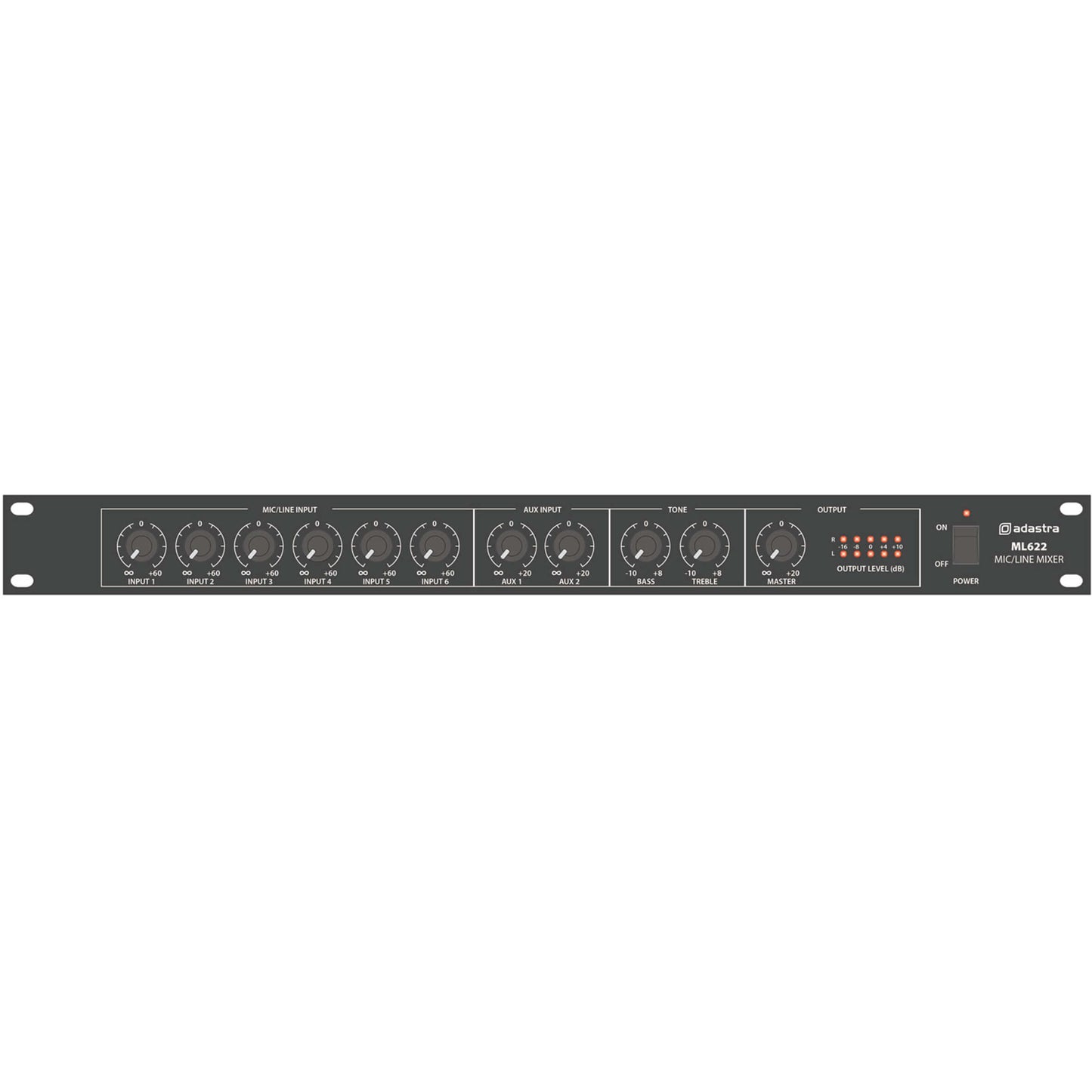

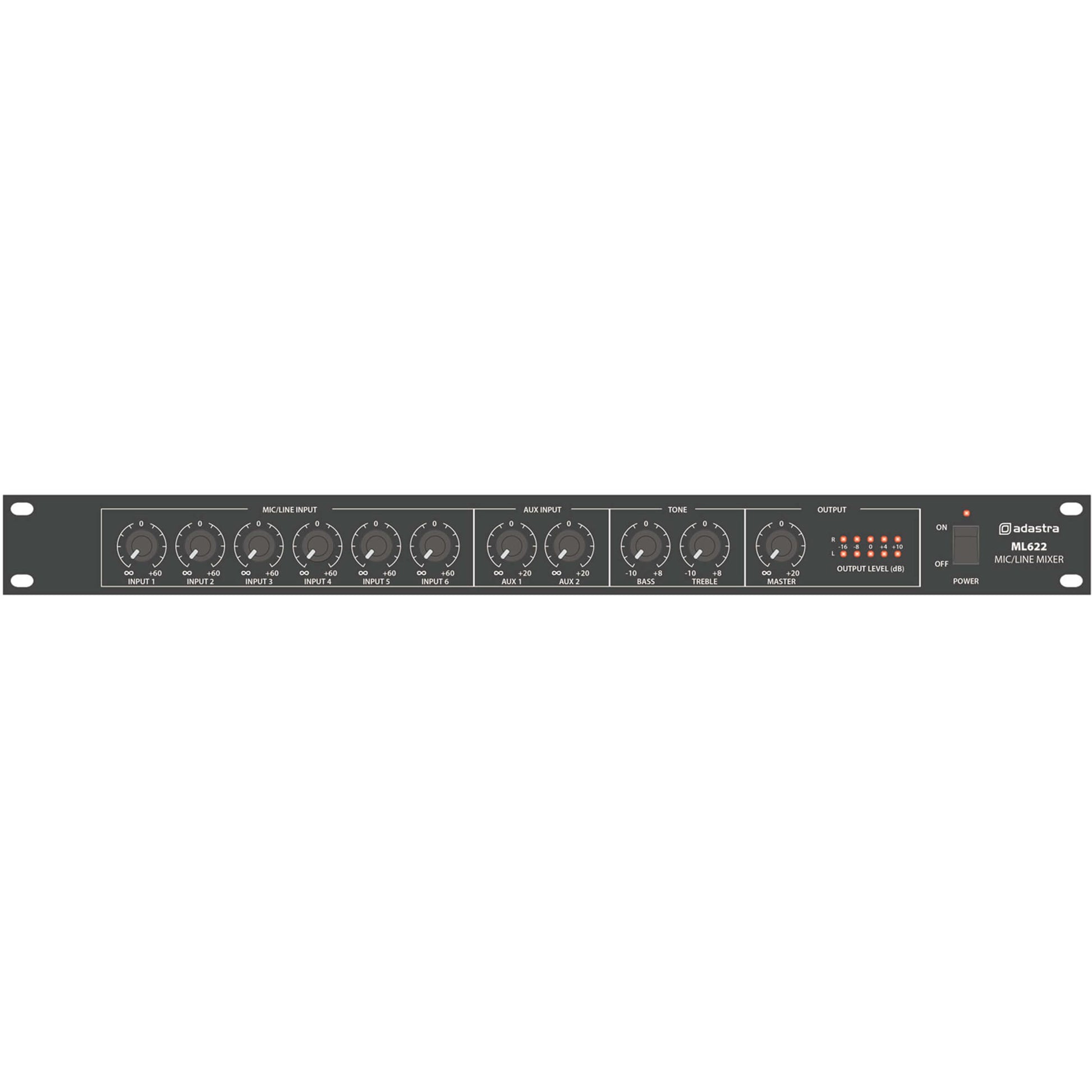

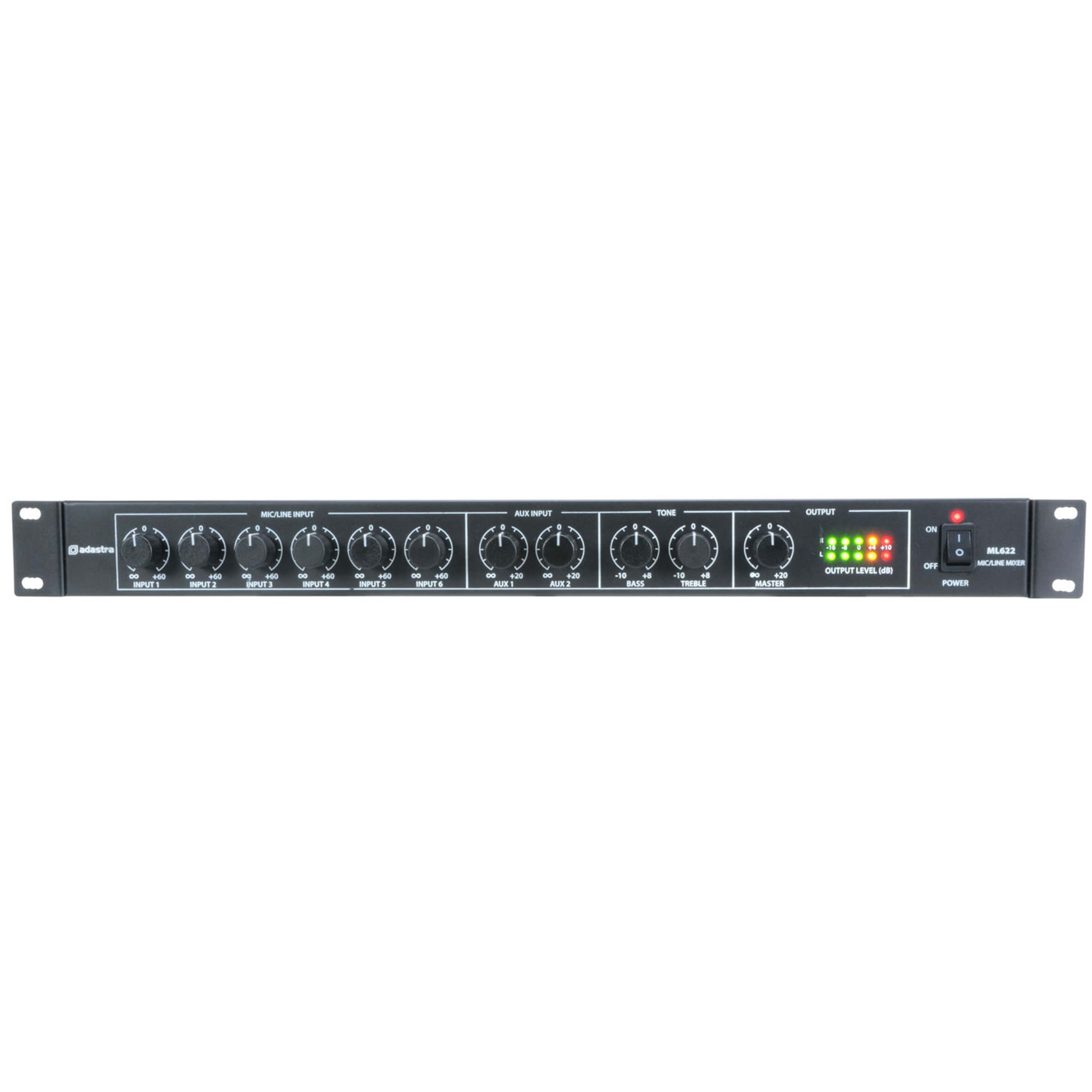

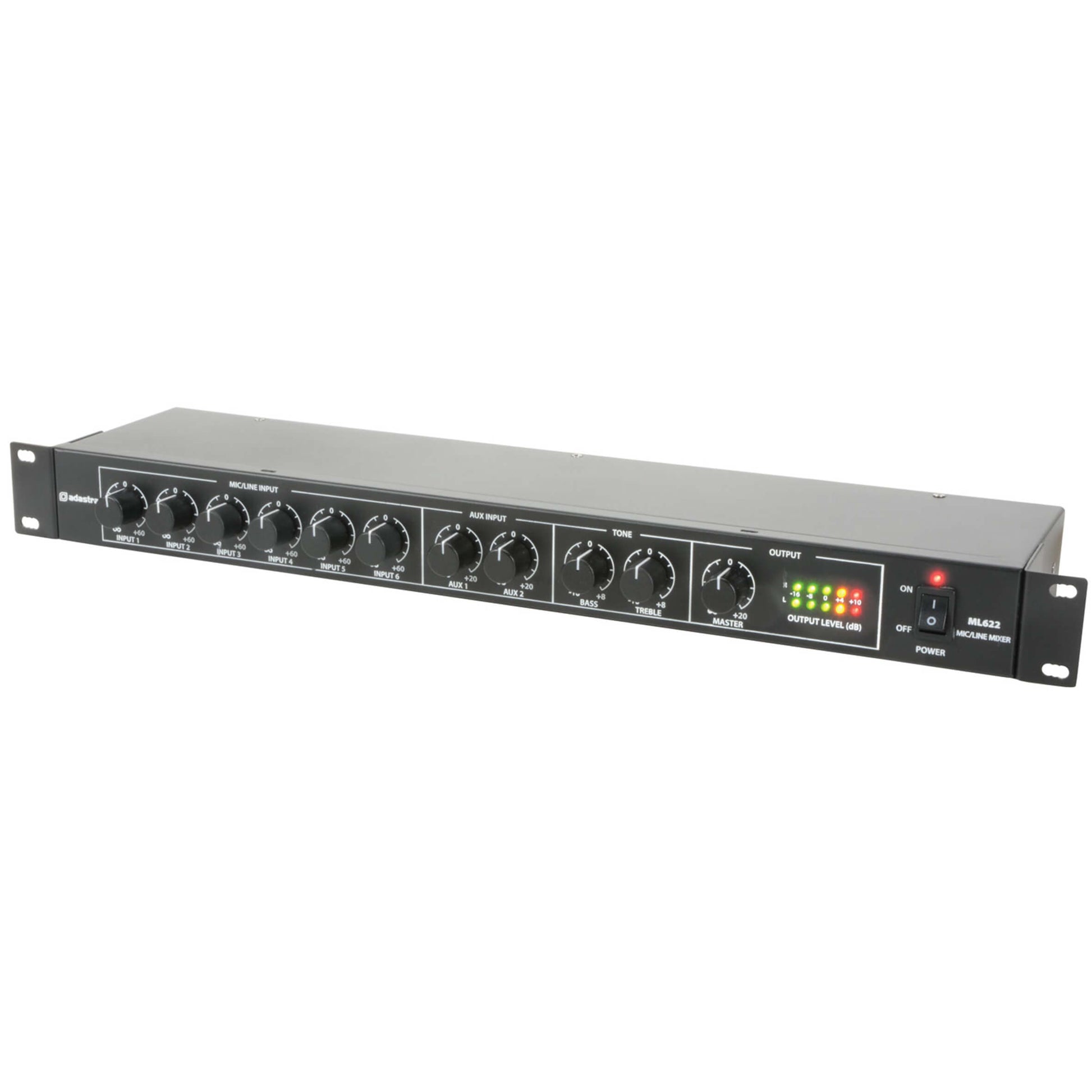

Adastra ML622 6 Mic 2 Aux Rack Mixer 1U - Compact Audio Solution

The Adastra ML622 is a compact and versatile 1U rack-mountable mixer designed for professional audio applications. With 6 XLR mic/line inputs and 2 auxiliary inputs, this mixer is perfect for installed sound systems, conferences, and live events. Each mic/line channel features switchable phantom power, ensuring compatibility with a variety of microphones. The mixer provides multiple output options, including stereo XLR, mono jack, and RCA record output, along with master bass and treble tone controls for tailored sound.

Features

• 6 Switchable Mic/Line Inputs: Flexibility to connect various audio sources.
• 2 Stereo Aux Inputs: Direct connection for smartphones, tablets, or laptops.
• Individually Switchable Phantom Power: Supports condenser microphones.
• Multiple Output Options: Includes stereo XLR, mono jack, and RCA outputs.
• Master Bass and Treble Tone Controls: Customize your sound to fit any environment.
• Compact 1U Rack-Mountable Design: Ideal for space-saving installations.
• Flexible Power Supply Options: Operates on 100-240Vac or 24Vdc.

Specifications

• Input Channels: 6 x Balanced XLR for mic/line, 2 x L+R RCA for aux

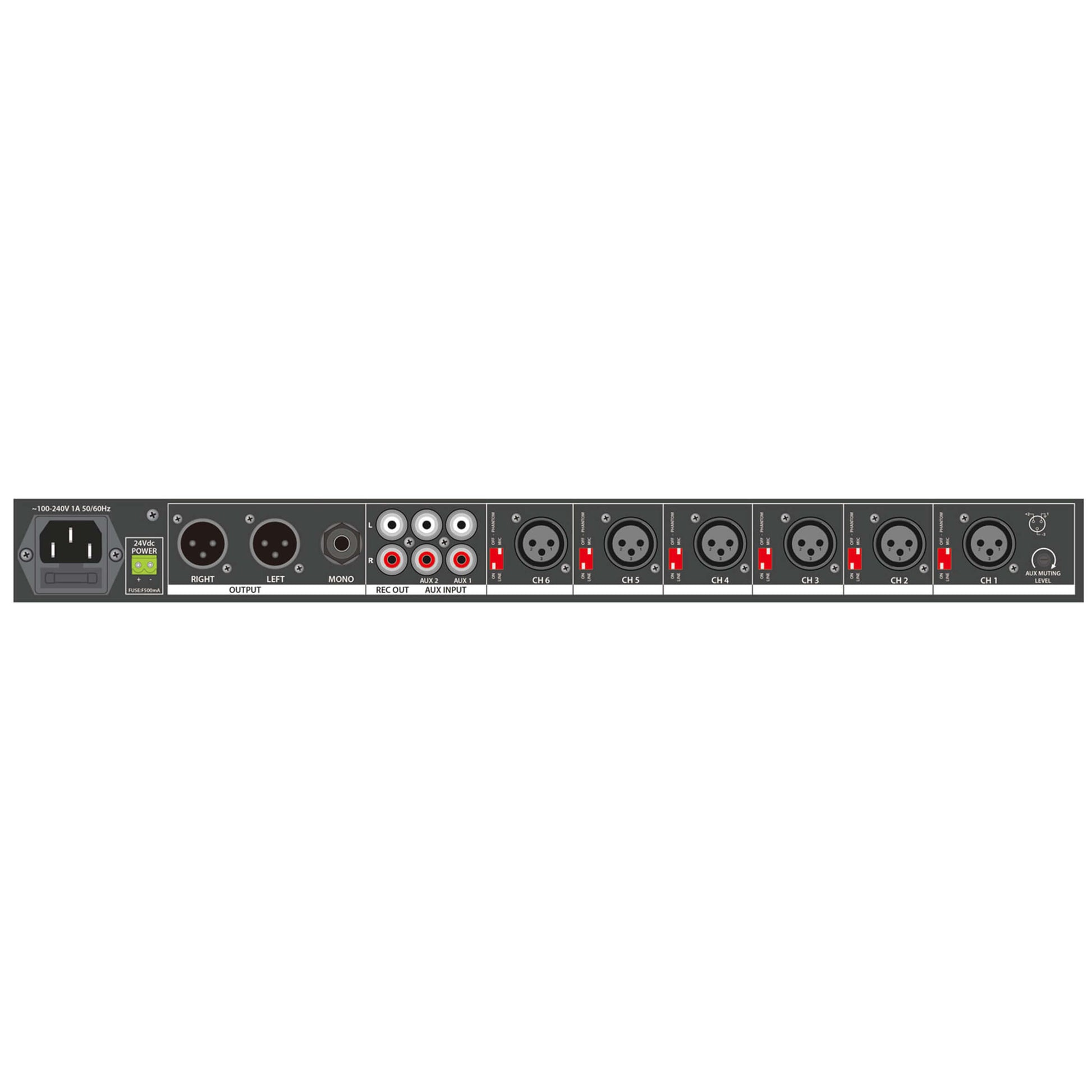

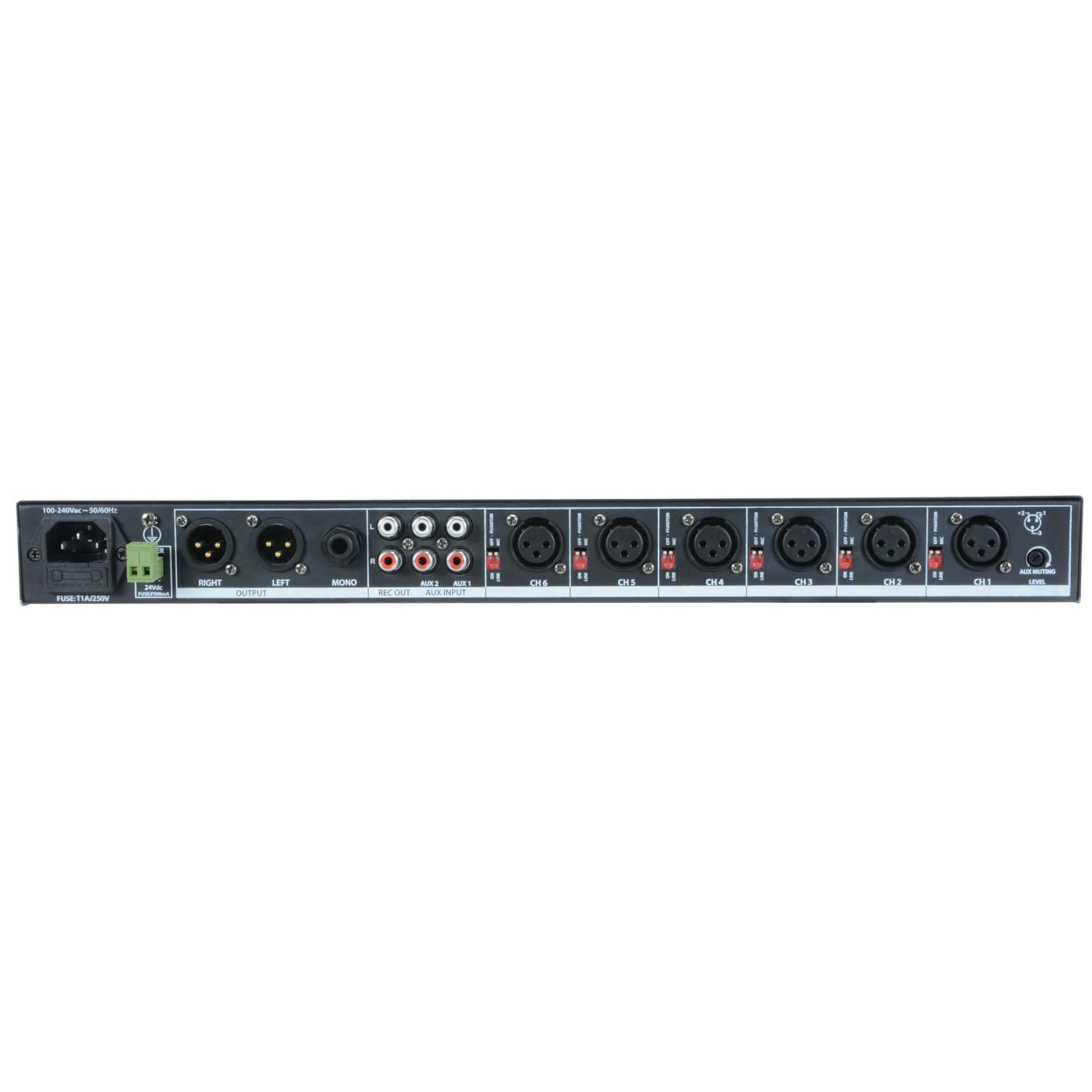

• Output Connections: L+R XLR, mono 6.3mm jack, L+R RCA (REC)
• Frequency Response: Mic: 20Hz - 18kHz, Line: 14Hz - 20kHz, Aux: 10Hz - 23kHz
• Input Sensitivity: Mic: -45dBV, Aux/Line: -10dBV
• Signal to Noise Ratio: Mic: 55dB, Aux/Line: 60dB
• Total Harmonic Distortion (THD): 0.05%
• Dimensions: 482 x 130 x 44mm
• Weight: 1.43kg
• Phantom Power: +20Vdc (switchable)
• Power Supply: 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
