Adastra LS26 Line Splitter 1:12/2:6 for Professional Audio Use

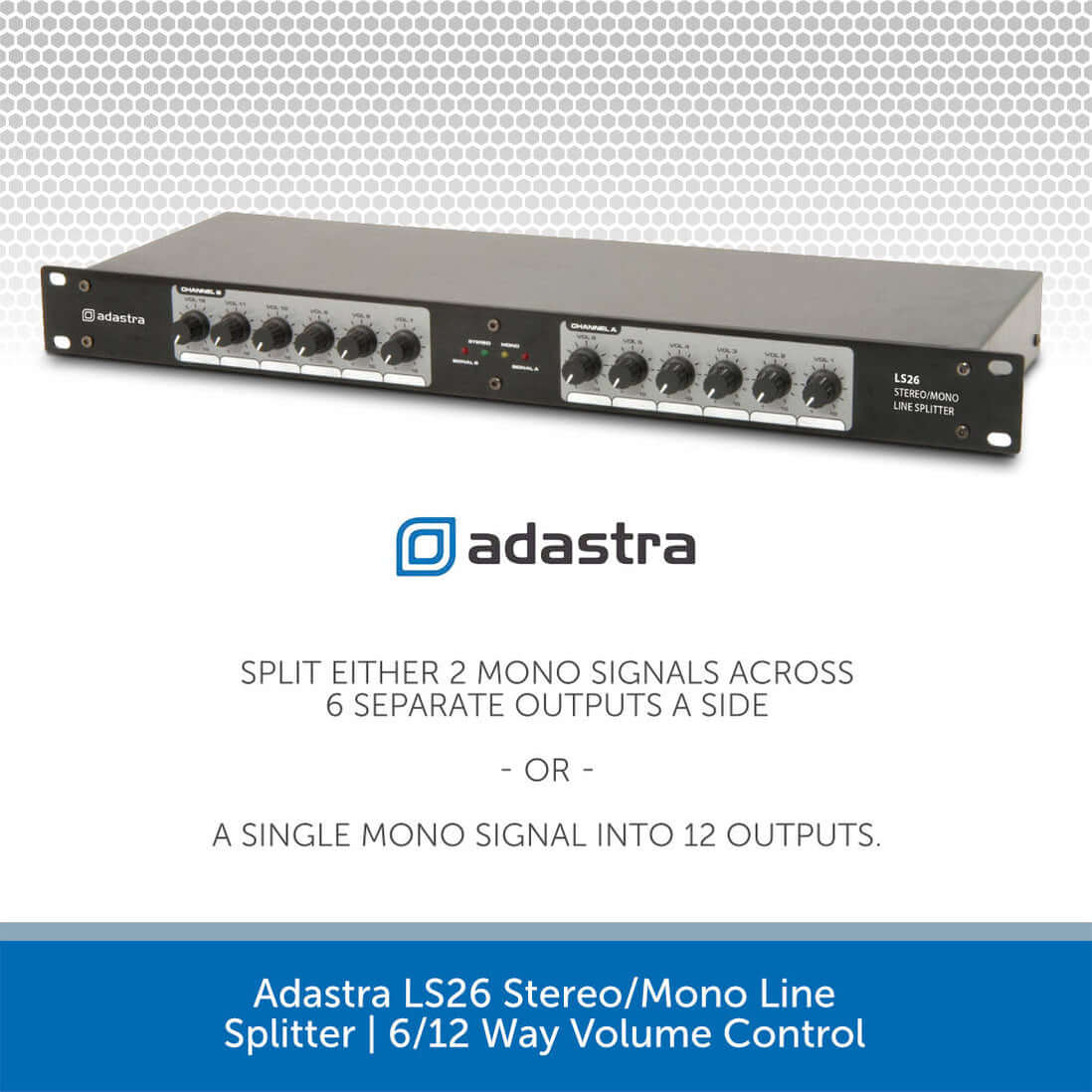

The Adastra LS26 Line Splitter is a versatile audio signal distribution unit designed to split one or two inputs into multiple outputs. With the capability to provide up to 12 outputs from a single input or 6 outputs from two inputs, this splitter is perfect for applications such as zone mixing, personal monitoring, effects patching, and complex recording setups.

Features

• Multiple Outputs: Provides up to 12 outputs from a single input or 6 from two inputs, allowing for flexible audio distribution.
• Individual Volume Control: Each output features its own volume control, enabling tailored audio levels for different zones or devices.
• Input Peak LEDs: Visual indicators for input signal clipping help to ensure optimal signal levels.
• Buffered and Divided Outputs: Maintains signal integrity and quality, preventing loss in gain that is common with passive splitters.
• Rack-Mountable Design: Standard 19-inch rack size for easy installation in professional audio setups.

Specifications

• Power Supply: 115/230Vac, 50/60Hz (IEC)
• Inputs: A & B, (6.3mm jack)

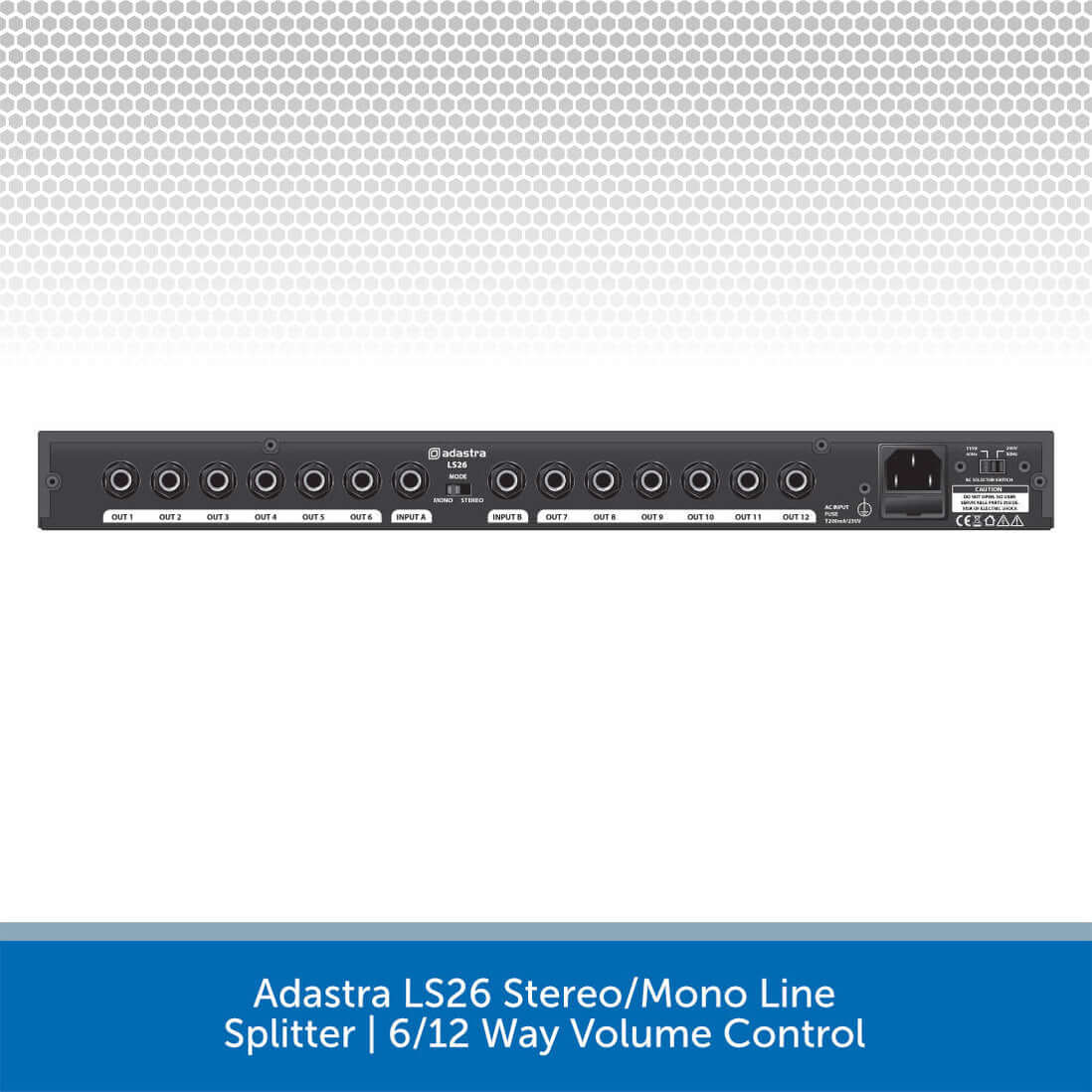

• Outputs: 1 - 6 & 7 - 12 (6.3mm jack)
• Input Impedance: 20k Ohms
• Output Impedance: 220 Ohms
• Frequency Response: 20Hz - 20kHz, +0/-1dB
• Signal to Noise Ratio: >95dB
• Total Harmonic Distortion (THD): <0.008%
• Dimensions: 483 x 44 x 170 mm
• Weight: 2.0 kg
