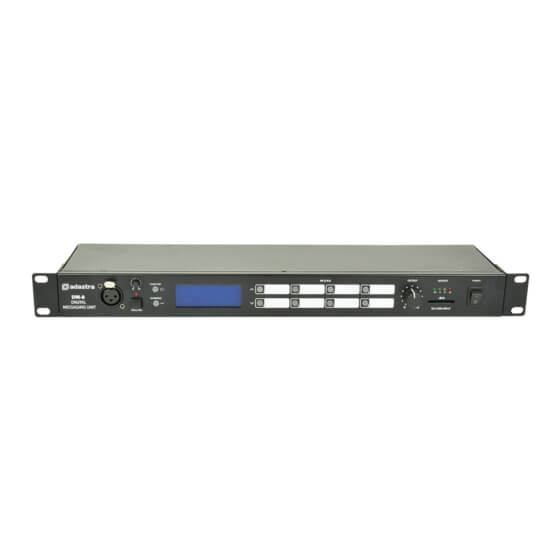

Adastra DM-8 Digital Messaging Unit - 1U Rack-Mount, SD Card Play

The Adastra DM-8 Digital Messaging Unit is a versatile 1U rack-mount solution designed for automated audio playback of announcements, music, and alerts. With the ability to store up to 99 audio tracks and schedule events on a removable SD card, this unit is perfect for public address systems in various environments. It features a mic/line input for live announcements and a background music line input, ensuring seamless integration into any audio setup.

Features

• Audio Storage: Supports up to 99 audio tracks stored on a removable SD card.
• Scheduling: Up to 99 programmable schedule events can be set for audio playback.
• PC Software Compatibility: Schedule files are editable using free PC software for easy customization.
• Background Music Input: BGM line input allows for background music playback with independent level control.
• Live Announcements: Mic/Line input enables recording or live announcements that can override SD playback.
• Flexible Use: Can be added to any sound system for automated playback of timed announcements or alerts.

Specifications

• Power Supply: 100-240Vac, 50/60Hz or 24Vdc
• Fuse: T1AL 250V

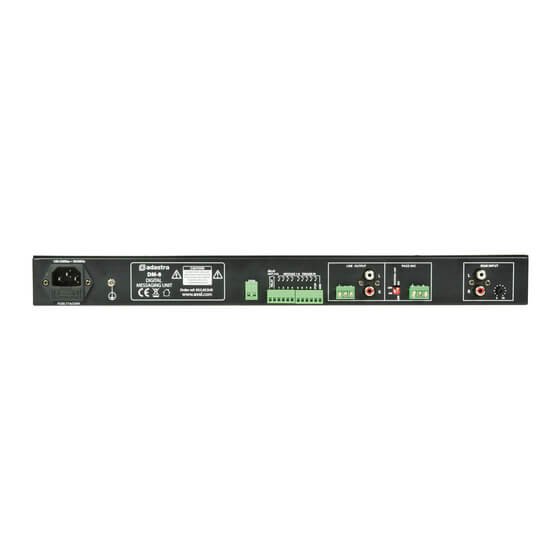

• Inputs: Paging mic/line (XLR or terminals), BGM (RCA)
• Output: Mono balanced terminal or unbalanced RCA
• Audio Source: Internal SD card player
• Time Setting: 99 programmable schedules - 24 hour + day(s) setting
• Mic/Line Channel Controls: Mic/Line level, Phantom power on/off
• Phantom Power: +20V
• Input Impedance: 2.2k Ohms (mic/line)
• Dimensions: 483 x 150 x 44mm
• Weight: 1.65kg
• SD Card Requirements: 4-32GB FAT32 (full size or with adaptor)
