Adastra CS4 Paging Mic with Call Station for RM244V Mixer Amp

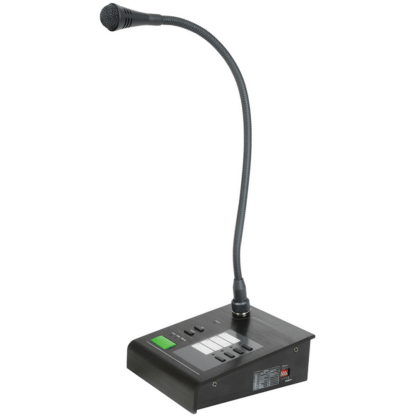

The Adastra CS4 Paging Microphone is a versatile desk microphone designed for use with the RM244V mixer amplifier. It features a user-friendly call station base that connects via RJ45, allowing for simplified wiring for both signal and power. This microphone supports 4-zone paging, enabling users to communicate effectively across multiple areas. With 8 selectable chimes and intuitive zone assign buttons, it enhances audio control while maintaining seamless background music playback.

Features

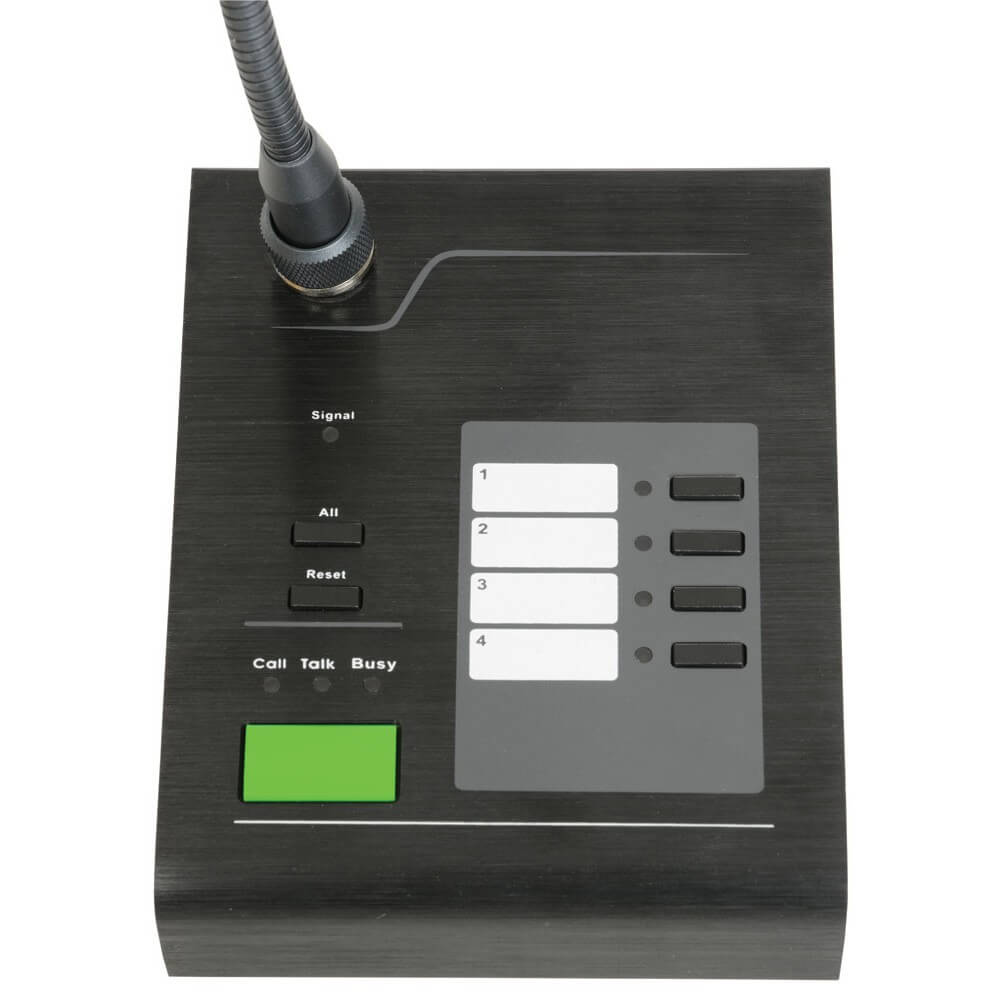

• 4-Zone Paging: Assignable to individual or all zones for flexible communication.

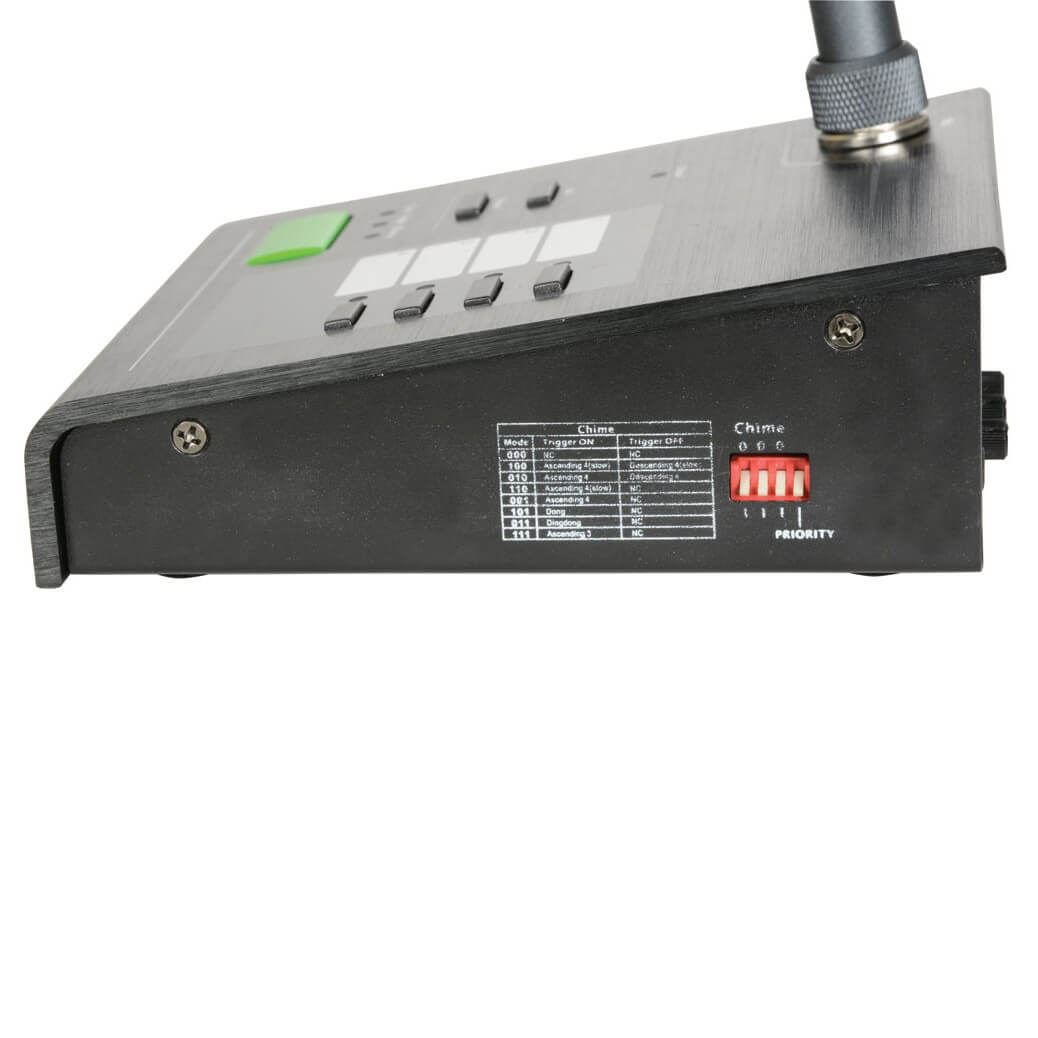

• 8 Selectable Chime Settings: Choose from a variety of chimes to alert users.
• RJ45 Connection: Simplifies wiring by combining signal and power connections.
• Reset Function: Mutes the microphone and resumes background music playback.

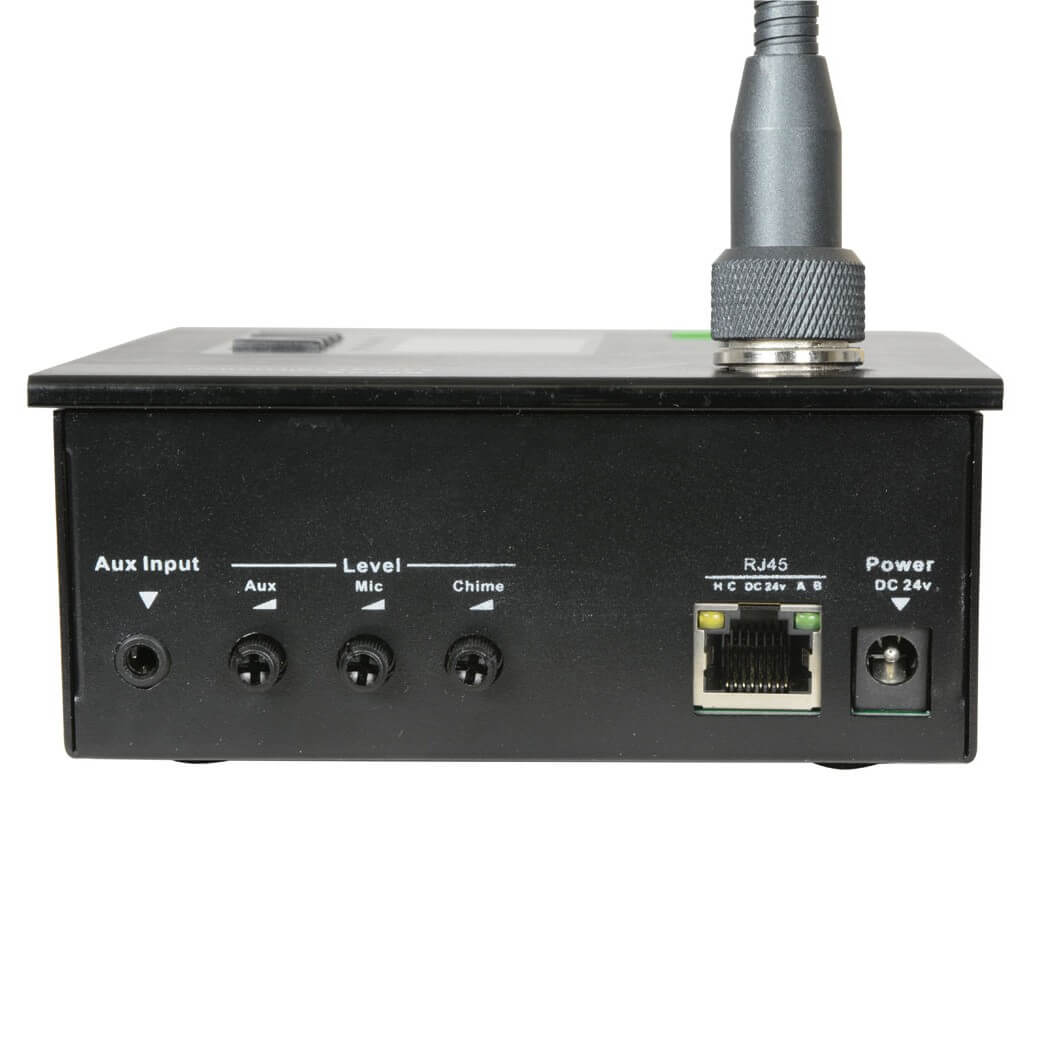

• Aux Input: Includes a 3.5mm aux input for additional audio sources.

Specifications

• Power Supply: 24Vdc, 500mA from RJ45 or optional adapter
• Max Connection Length: 100m (CAT5 cable) or up to 1km with optional 24Vdc adapter
• Capsule Type: Back electret condenser
• Polar Pattern: Cardioid
• Frequency Response: -3dB 150Hz - 22kHz
• Input Level: Mic: -46dBV, Aux: -10dBV
• Output Level: 10dBV
• Output Impedance: Balanced 600 Ohms
• Dimensions: 460 x 140 x 115mm
• Weight: 670g
