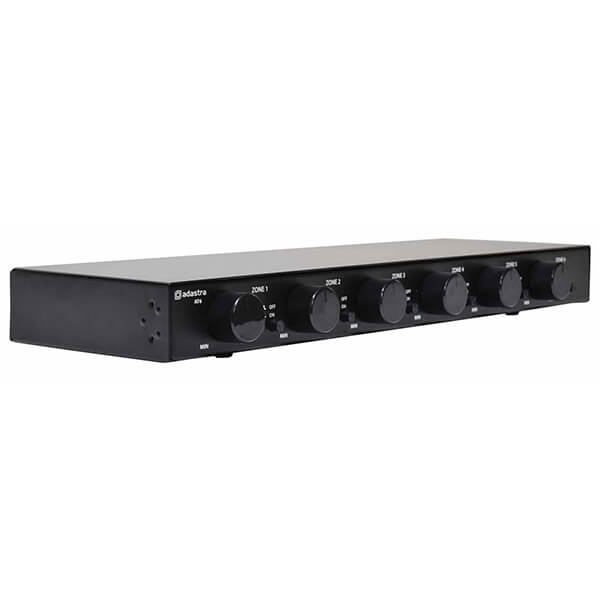

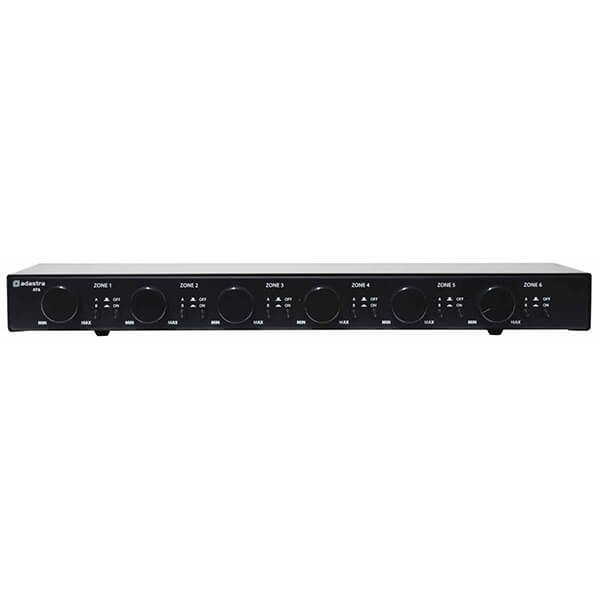

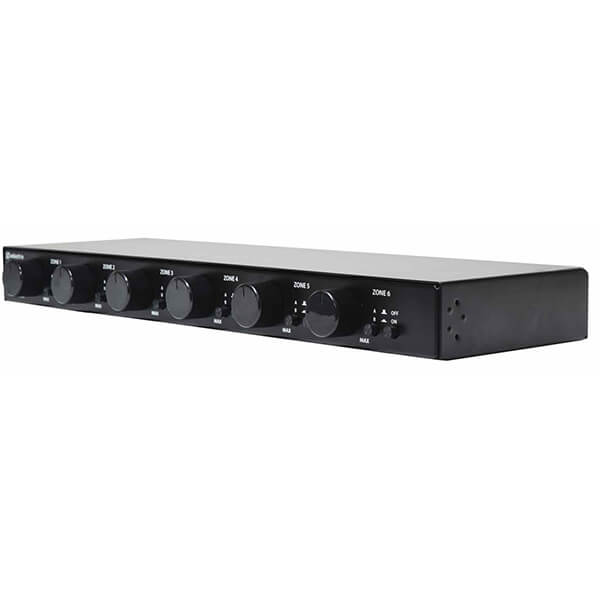

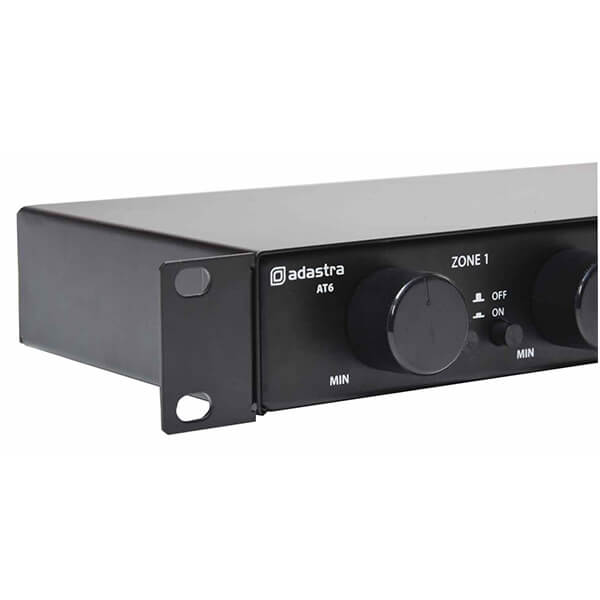

Adastra AT6 6-Way Speaker Selector Switch with Volume Control

The Adastra AT6 is a versatile 6-way speaker selector switch designed for 100V line systems, offering two-zone control with independent volume adjustments. Perfect for multi-room audio installations, it allows you to connect to one or two amplifiers, providing a flexible solution for managing sound across different areas. Each output channel supports up to 30W, making it ideal for various applications including commercial and residential setups.

Features

• 6 Output Channels: Capable of feeding up to 30W to one or more 100V speakers per channel.
• Independent Volume Control: Each channel features an 11-position rotary volume switch for precise sound management.
• A/B Source Switching: Allows selection between two audio sources for each channel, enhancing flexibility.
• Emergency Control: 24V mute terminals can be connected to an emergency control panel for global muting.
• Passive Operation: No power supply required, making it a cost-effective addition to your audio system.

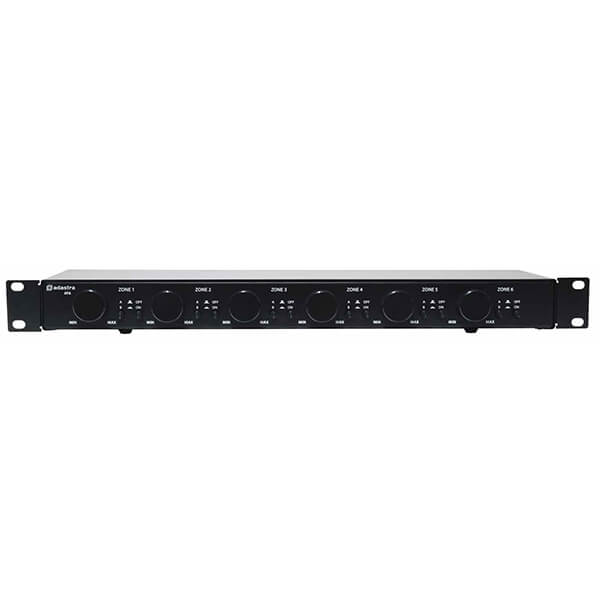

• Rack-Mountable: Housed in a 1U rackmount enclosure for easy integration into existing setups.

Specifications

• Power Handling: 30W max. per output zone
• Channel Controls: 11 position volume attenuator, A/B source switch, On/Off switch
• Emergency Control: 24V mute terminals

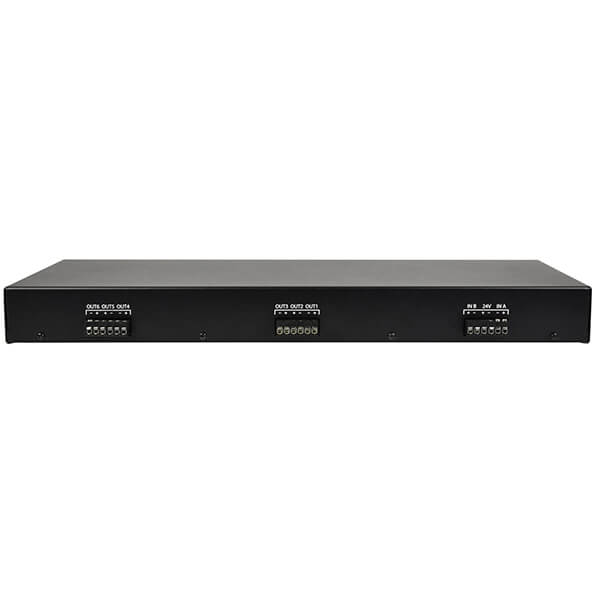

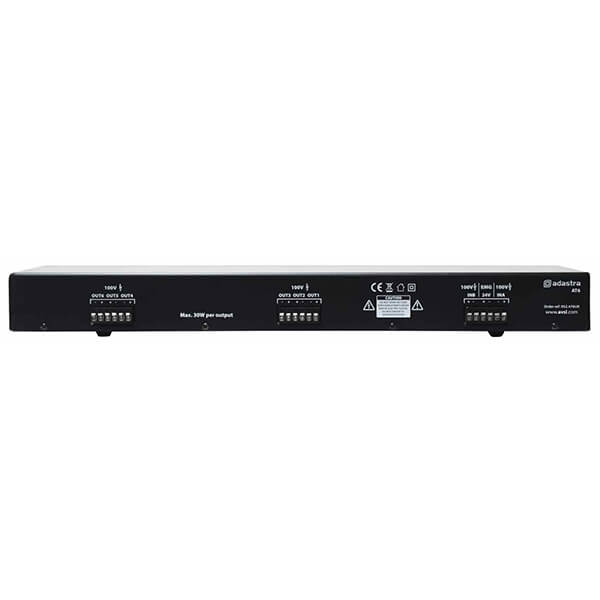

• Connections: IN A + B, OUT 1-6, 24V MUTE (Euroblock screw terminals)
• Dimensions: 482 x 160 x 43mm
• Weight: 2.39kg
