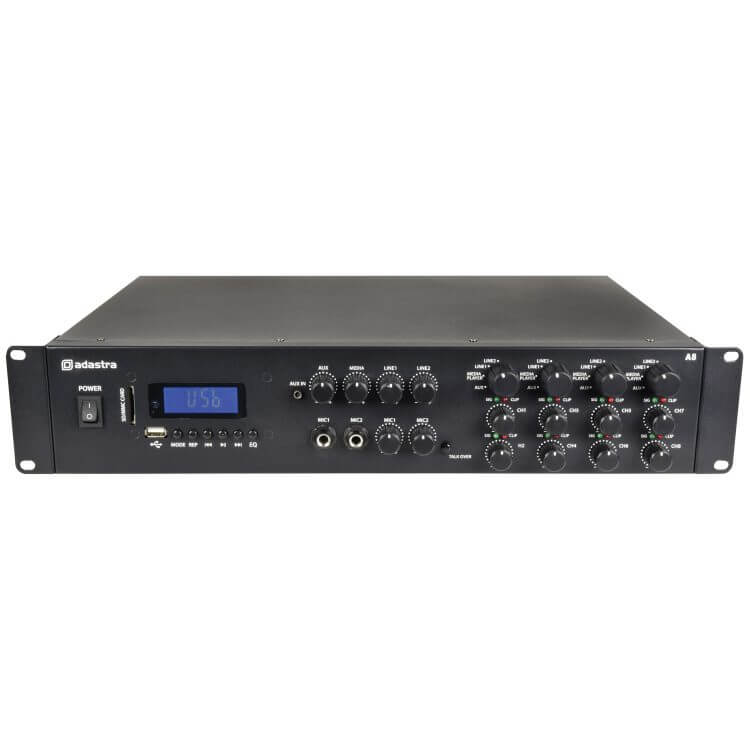

ADASTRA A8 Quad PA Mixer-Amplifier: 8x200W, USB,

The ADASTRA A8 Quad Stereo PA Mixer-Amplifier is designed for installations requiring high-quality audio across multiple zones. With 8 channels delivering 200W each at 4 Ohms, it features USB/SD playback, Bluetooth connectivity, and an FM tuner for versatile audio options. Ideal for commercial and residential applications, this amplifier ensures seamless sound distribution and control.

Features

• Multi-Zone Amplification: Offers 3 or 4 independent stereo outputs for versatile audio distribution.
• Integrated Media Player: Supports USB/SD playback for easy access to your favorite MP3 tracks.
• Bluetooth Connectivity: Stream audio wirelessly from your devices for added convenience.
• FM Radio Tuner: Enjoy your favorite radio stations with an external aerial connection.
• Dual Microphone Inputs: Two 6.3mm mono inputs allow for easy integration of microphones.
• Robust Power Output: Delivers 200W RMS per channel at 4 Ohms, ensuring powerful audio performance.
• Thermal and Short-Circuit Protection: Built-in safeguards protect the amplifier from damage.
• Class D Construction: Efficient design for high power output with minimal heat generation.

Specifications

• Output Power RMS @ 4 Ohms: 8 x 200W
• Output Power RMS @ 8 Ohms: 8 x 100W

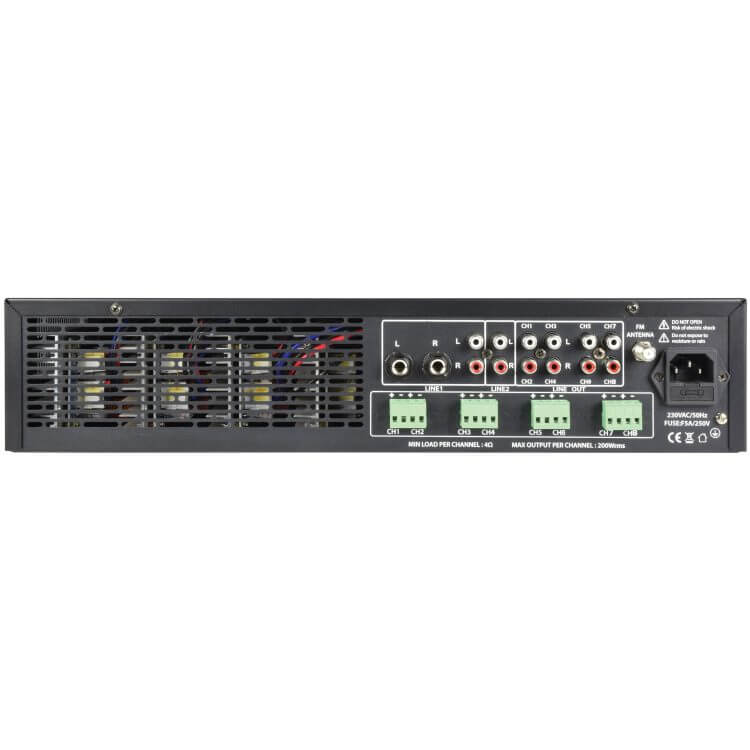

• Speaker Outputs: 4 x 4-terminal Euroblock
• Input Controls: Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
• Frequency Response: 20Hz - 20kHz ±0.5dB
• Input Sensitivity: Line - 0.775Vrms, Aux - 0.480Vrms
• Input Impedance: 20k Ohms (balanced), 10k Ohms (unbalanced)
• Dimensions: 482 x 300 x 88 mm
• Weight: 8.96 kg
• Power Supply: 230Vac, 50Hz (IEC)
• Fuse: F5A, 250V
