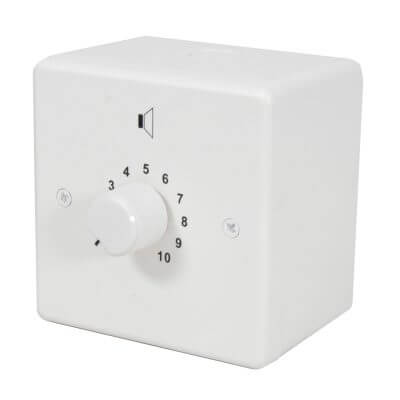

Adastra 100V Volume Control Relay Fitted 36W - High Quality Attenuator

The Adastra 100V Volume Control with Fitted Relay - 36W is a premium quality volume attenuator designed to enhance your audio experience. Supplied with a plastic surface mount back box, it features a stylish ABS faceplate and a matching plastic knob. This volume control is equipped with a 24V relay that allows for bypass to full volume when triggered from a fire alarm panel, ensuring safety in emergency situations.

Features

• High-Quality Construction: Made from durable ABS plastic with a sleek design.
• Relay Functionality: Each unit includes a 24V relay for emergency bypass, ensuring full volume during fire alarm activation.
• Step Attenuation: Offers attenuation in 10 steps, including 8 x 3dB and 2 x 6dB steps for precise volume control.
• Wide Frequency Response: Supports a frequency range of 35Hz - 20kHz for clear sound quality.
• Easy Installation: Comes complete with a plastic surface mount back box for straightforward installation.

Specifications

• Power: 36W
• Attenuation: 3dB per step
• Frequency Response: 35Hz - 20kHz
• Relay: 24V, 50mA
• Dimensions (H x W x D): 84 x 84 x 75mm (including back box)
• Mounting Depth: 47mm
• Weight: 232g
