Active DI Box with Noise Filter for High to Low Impedance Conversion

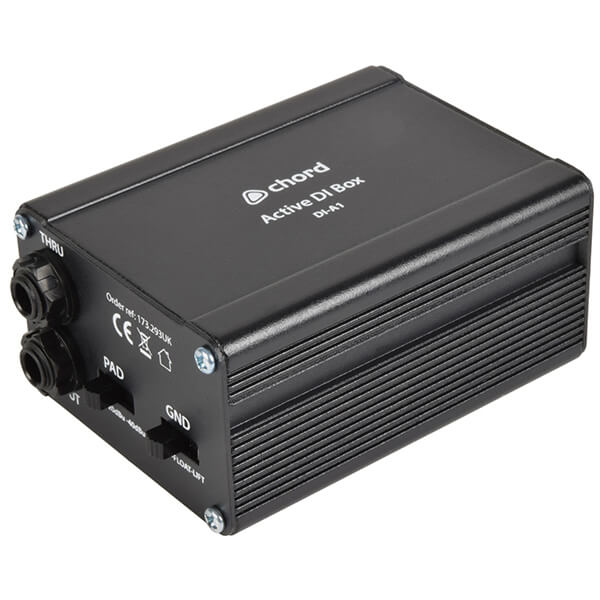

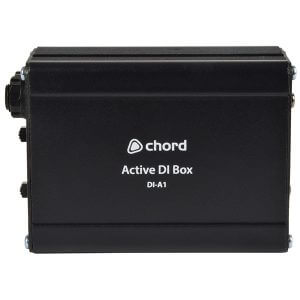

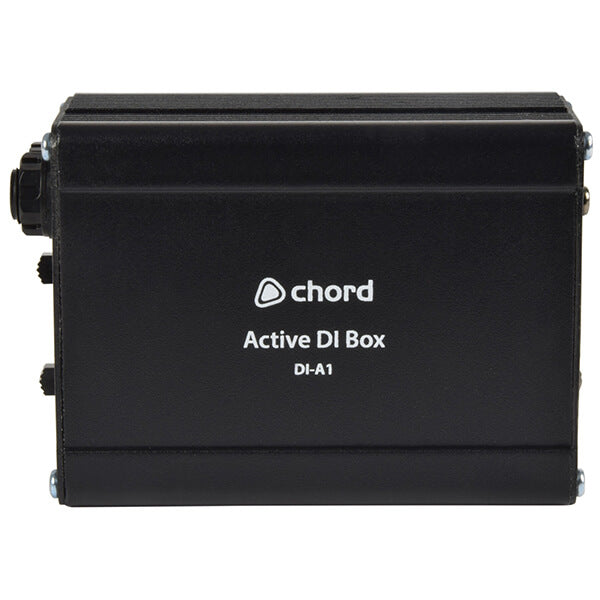

The CHORD DI-A1 Active DI Box is designed for converting high impedance instrument outputs to low impedance line signals, making it ideal for direct connection to mixing consoles. Featuring an internal buffer amplifier, it boosts the signal to prevent loss over long cable runs. The unit includes a 3-way pad switch for level matching and a Ground-Float-Lift selector for signal ground isolation, with options for RF/mains filtering.

Features

• High Impedance Conversion: Efficiently converts high impedance outputs to low impedance for optimal mixing console compatibility.
• Internal Buffer Amplifier: Enhances signal strength to avoid losses in long cable runs.
• 3-Way Pad Switch: Offers level matching options for various input signals.
• Ground-Float-Lift Selector: Provides signal ground isolation with or without RF/mains filtering, ensuring clean audio output.

Specifications

• Power Supply: 9-52V phantom power or optional 12Vdc adaptor
• Input: 6.3mm jack (unbalanced)

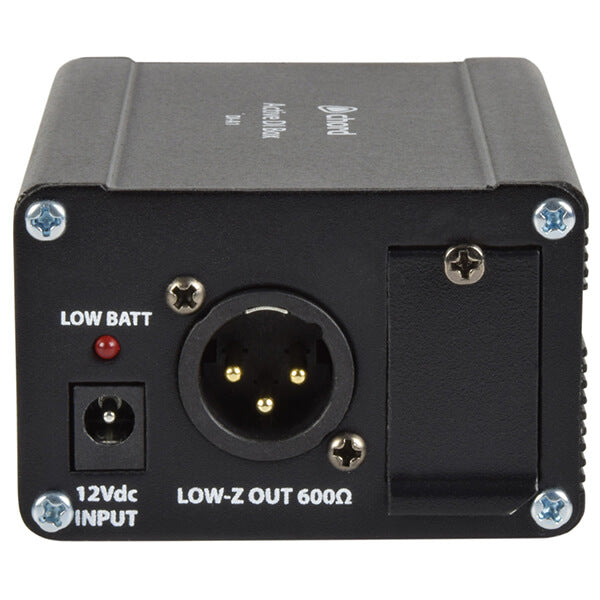

• Outputs: XLRM (balanced), 6.3mm jack through (unbalanced)
• Input Impedance: >100k Ohms
• Output Impedance: 600 Ohms

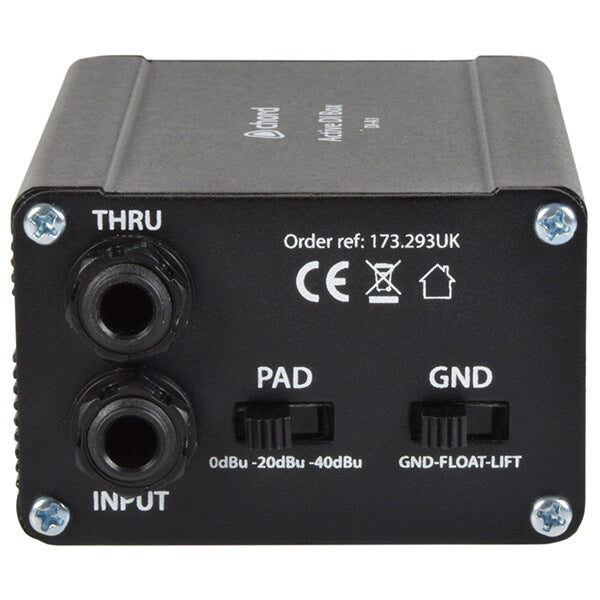

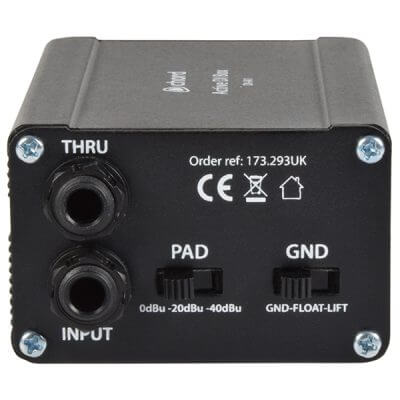

• Controls: 0/-20/-40dBu pad & Ground-Float-Lift switch

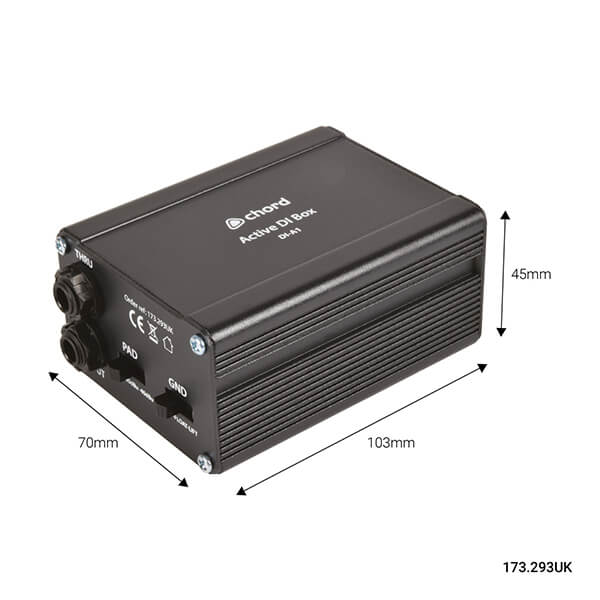

• Dimensions: 103 x 70 x 45 mm
• Weight: 0.243 kg
