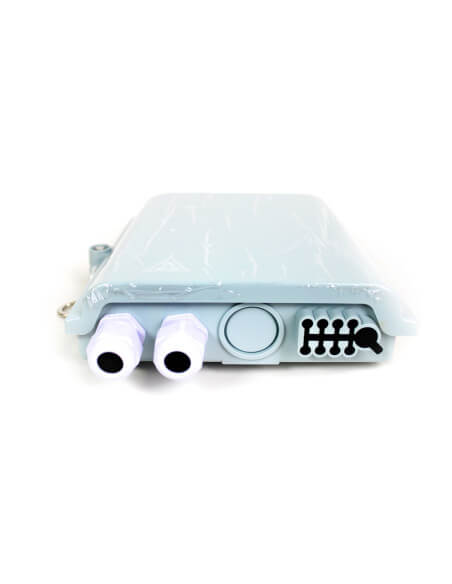

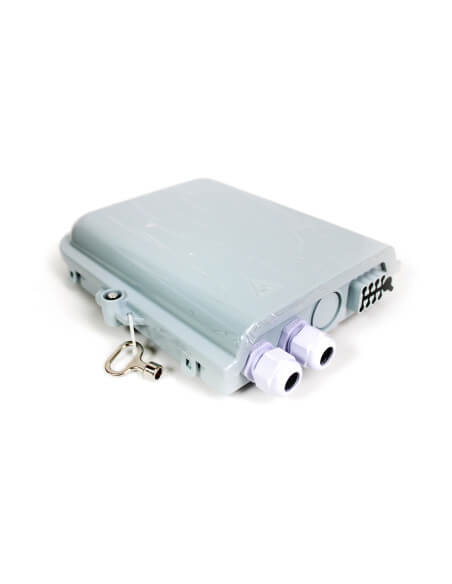

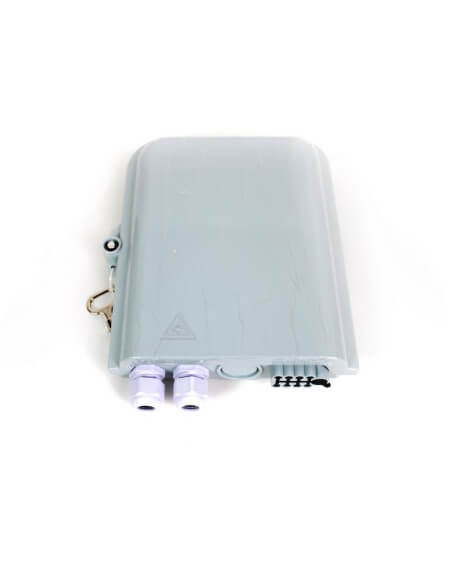

Acconet 8-Core Distribution Box

The Acconet 8-Core Distribution Box serves as a vital termination point for feeder cables, integrating fiber splicing, splitting, distribution, and storage in a single unit. This robust design ensures effective management and protection of your FTTx network, making it ideal for both indoor and outdoor applications.

Features

• Total Enclosed Structure: Provides a neat and organized appearance while offering solid protection.
• Anti-Theft Locking Mechanism: Secures the contents against theft and tampering.
• High-Quality Material: Constructed from durable PC + ABS material, ensuring longevity.
• IP65 Rating: Offers excellent dust and moisture protection, suitable for outdoor environments.
• Versatile Cable Management: Supports feeder and drop cables, fiber splicing, and distribution all in one unit.
• Compatibility: Works with both SC and LC duplex adaptors and pigtails.

Specifications

• Model No.: AC-FIB-DIST-8
• Dimensions: 223mm x 180mm x 48mm
• Mounting Options: Wall-mounting or pole mounting
• PLC Type: Steel tube splitter
• Operating Temperature: -40 °C to +85 °C
• Relative Humidity: ≤ 85% (+30 °C)
• Atmospheric Pressure: 70Kpa to 106Kpa
• Insert Loss: ≤ 0.2dB
• UPC Return Loss: ≥ 50dB
• APC Return Loss: ≥ 60dB
• Insert and Pull-out Life: ≥ 1000 times
• Maximum Diameter of Supported Optical Cable: ≤ φ12mm
• Insulation: Grounding device insulated with the termination box, IR ≥ 1000MΩ/500V (DC)
• Withstand Voltage: Over 3000V/Min, no breakdown or flashover
