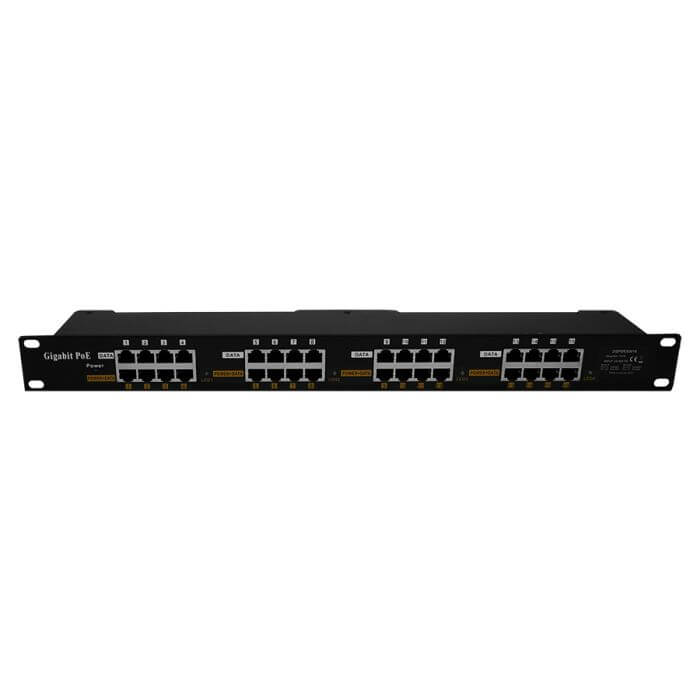

16-Port Gigabit Passive PoE Injector

The 16-Port Gigabit Passive PoE Injector from Scoop is designed to efficiently power multiple devices through a single Ethernet cable. With dual power supplies and support for both Mode A and Mode B operation, this injector is perfect for powering IP cameras, VoIP phones, and WiFi access points in commercial and office environments.

Features

• 16 Ports: Supports up to 16 Power over Ethernet devices, allowing for efficient power distribution.
• Gigabit Ethernet: Ensures high-speed data transfer rates of up to 1000 Mbps.

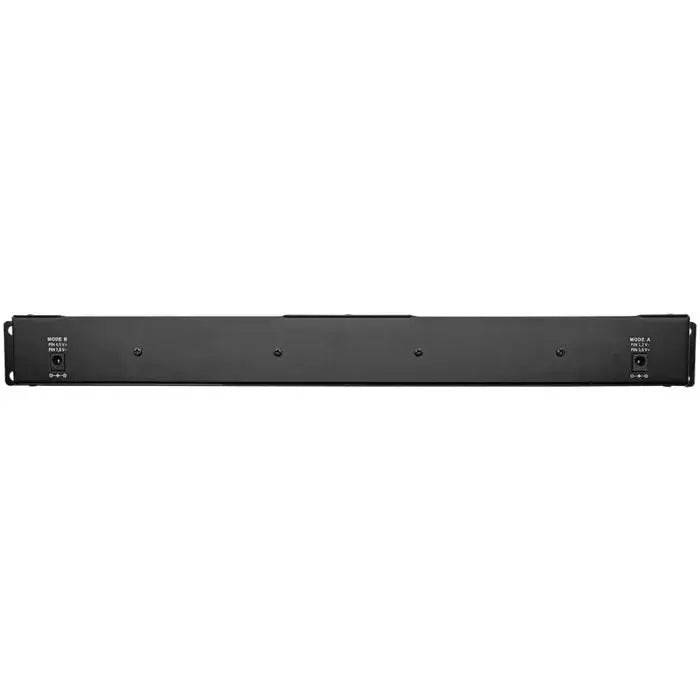

• Dual Power Supplies: Equipped with dual power supplies for redundancy and reliability.
• Mode A & B Operation: Compatible with both Mode A and Mode B for flexible installation.
• Rack-Mountable: Designed to fit into standard 1U rack space, optimizing your server or network closet.
• Passive PoE: Provides 'always on' power, simplifying installation without the need for complex configurations.

Specifications

• Ethernet Ports: 16 x 10/100/1000 (16x PoE; 16x Ethernet)
• Max Current Per Port: 1300mA (With 2x PSU of the same Voltage)
• Operating Temperature: 0°C to 40°C
• PoE Mode: Mode A & B (Mid & Endspan)
• PoE Output: PoE Pass-through (Power output determined by PSU)
• Power Input: 24-57V Power Supply (Not Included)
• Supported Voltage Range: 24-57V
