16-Channel Stage Mixer with DSP, Bluetooth, USB & MP3 Playback

The Power Dynamics PDM-S1604 is a professional 16-channel stage mixer designed for live performances, houses of worship, and multi-input venues. It features a built-in USB player, Bluetooth receiver, and a comprehensive DSP with 256 presets, ensuring high-quality audio processing and versatility for any sound setup.

Features

• 16 Channels: Offers 10 balanced mono microphone inputs (XLR), 8 balanced mono line inputs (6.3mm Jack), and 4 balanced stereo line inputs (6.3mm Jack).

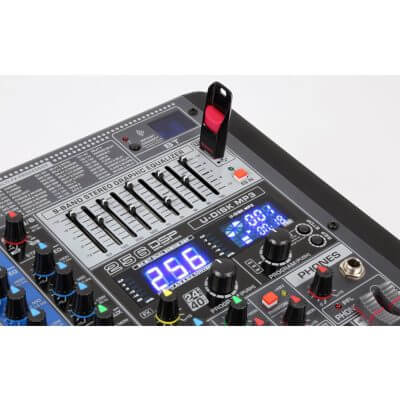

• Built-in USB Player: Play audio files directly from USB storage with a digital display for easy navigation.
• Bluetooth Receiver: Stream audio wirelessly from your devices for added convenience.
• Multi-FX Processor: Comes with 256 effect presets including Hall, Room, Delay, Echo, and more for enhanced sound creativity.
• 9-Band Equalizer: Fine-tune your audio output for optimal sound quality.
• +48V Phantom Power: Supports condenser microphones for professional audio capture.
• LED VU Meter: Visual feedback for audio levels with Peak LEDs for monitoring signal strength.
• Compact Design: Lightweight and portable, making it ideal for on-the-go setups.

Specifications

• Frequency Response: 10Hz - 45kHz (±3dB)
• Total Harmonic Distortion (THD): <0.01%
• DSP Resolution: 24-bit
• Signal to Noise Ratio: >112dB
• Output Level: +/- 1V
• Input (Line): +/- 150mV
• Input (Mic): +/- 1.5mV
• Power Supply: 100-240VAC / 50-60Hz
• Dimensions: 335mm (L) x 520mm (W) x 95mm (H)
• Weight: 5.4kg
