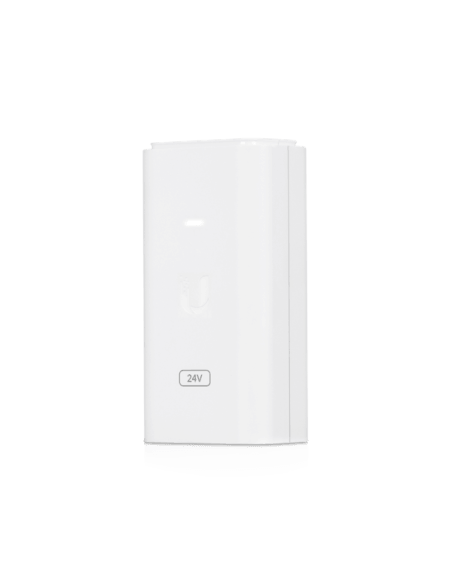

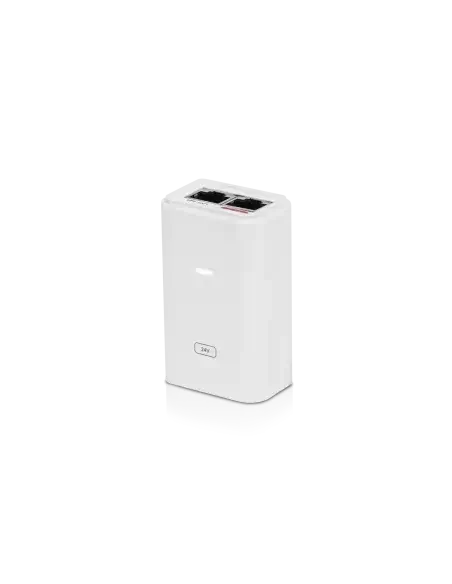

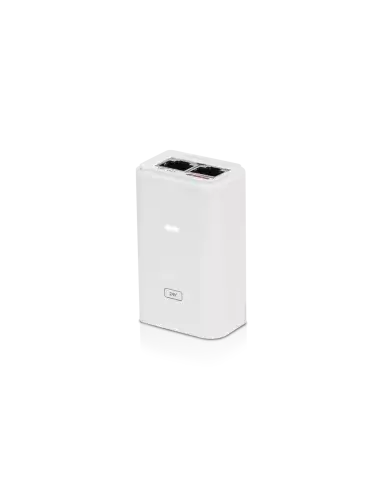

Ubiquiti Gigabit PoE Adapter 24V 12W with No Cable | POE-24-12W-G-WH

The Ubiquiti Gigabit PoE Adapter 24V 12W (model POE-24-12W-G-WH) is engineered to deliver reliable Power over Ethernet (PoE) to various Ubiquiti devices, including airFiber, airMAX, airVision, UniFi, and mFi series. This adapter simplifies network installations by providing seamless power delivery over Ethernet cables, eliminating the need for separate power sources. It features robust protection against electrical surges and electrostatic discharge (ESD), safeguarding connected devices from potential damage. With a Gigabit LAN port, it ensures high-speed data transmission, making it suitable for applications requiring substantial bandwidth. Additionally, the adapter includes a remote reset capability for convenient device management.

Features

• Powers Ubiquiti devices such as airFiber, airMAX, airVision, UniFi, and mFi series.
• Provides protection against surge, clamping, maximum surge discharge, peak pulse current, and ESD attacks.
• Offers earth grounding to enhance device safety.
• Compatible with Ubiquiti airGateway Access Points.
• Equipped with a Gigabit LAN port for high-speed data transmission.
• Features remote reset capability with a reset button for convenient device management.

Specifications

• Output Voltage: 24V DC at 0.5A
• Input Voltage: 100–240V AC at 50/60Hz
• Input Current: 0.3A at 120V AC; 0.2A at 240V AC
• Efficiency: 75% or higher
• Output Ripple: 1% maximum
• Switching Frequency: 50 kHz
• Line Regulation: ±1%
• Load Regulation: ±3%
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -30 to 70°C (-22 to 158°F)
• Operating Humidity: 35% to 95% non-condensing
• AC Connector: IEC-320 C6
• Data IN/PoE: RJ45 shielded socket
• Surge Protection: Difference and common mode
• Clamping Protection: 11V data, 60V power
• Max. Surge Discharge: 1500A (8/20µs) power
• Peak Pulse Current: 36A (10/1000µs) data
• Shunt Capacitance: <5 pF data
• Response Time: <1 ns
• Certifications: CE, FCC, IC, UL
